NEXIO BAS-311HX
NEXIO BAS-311HX
- Direct Drive Programmable Electronic Pattern Sewer (Sewing area: 150×100mm)
- ・World-Class Sewing Speed of Up to 2,800 Stitches Per Minute with Exceptional Stitch Quality
- ・Outstanding Needle Penetration Performance for Heavy Materials and Multi-Layer Seams
- ・Energy-Efficient Design for Reduced Power Consumption
- ・Intuitive LCD Touch Panel for an Enhanced User Experience
- ・New Digital Tension Allows for A Wide Variety of Threads
Information
Overview

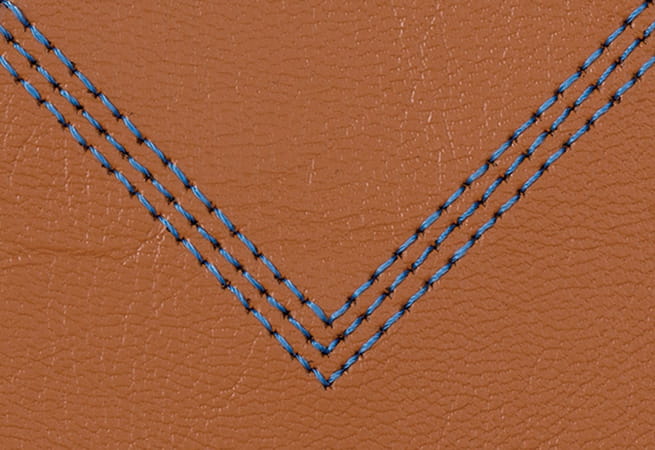

World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing
Higher rigid feed mechanism was adopted while achieving the world’s top-class sewing speed of 2,800sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.

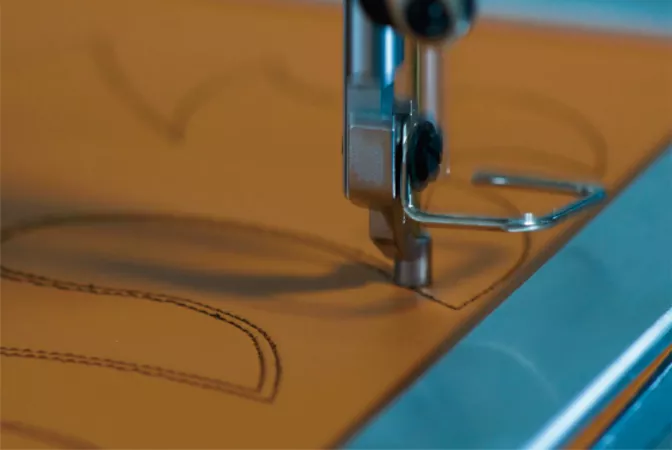

Great Needle Penetration
Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control(intermittent impact) automatically increases the penetration force.

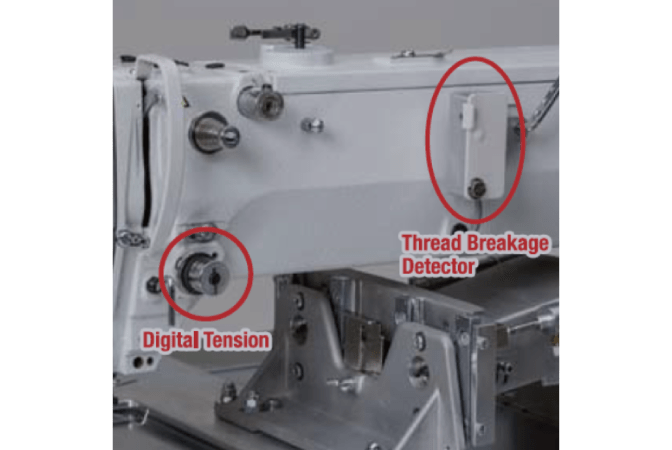

Digital Tension* and Thread Breakage Detector as Standard Equipment
The upper thread tension can be digitalized with the Digital Tension, providing stable stitching. No more relying on individual feel. When thread breakage is detected, sewing operation is stopped automatically and a warning is given to the operator, leading to the less detectives.
Best User Experience with LCD Touch Panel
7-inch large screen and easy programming functions via LCD touch panel enable an intuitive operation. It is easily understood without the instruction manual or previous experience in fewer steps.
Features

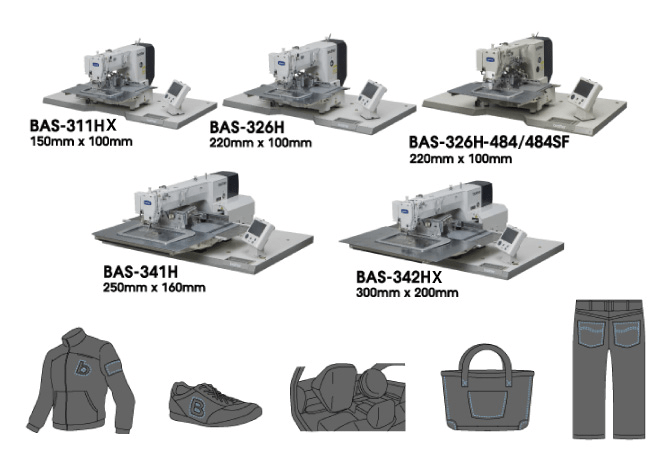

We have 5 lineups as BAS-H series with different sewing area. You can select the best model for your applications sucu as label, airbags, seat belts and so on.
World's top-class sewing speed of 2,800sti/min with high quality sewing
Higher rigid feed mechanism was adopted while achieving the world's top-class sewing speed of 2,800 sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.

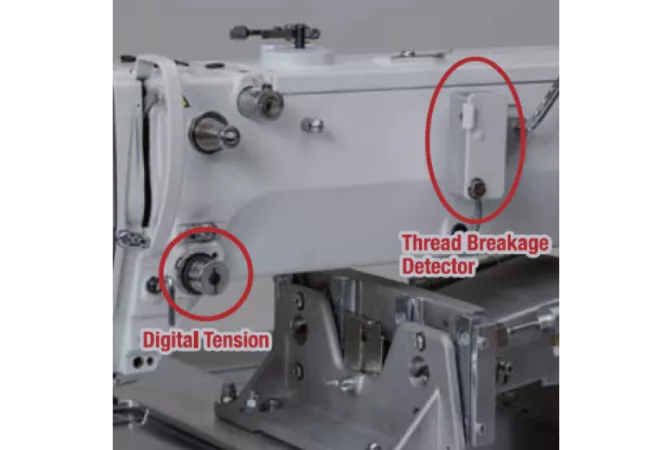

Digital tension and thread breakage detector as standard equipment
The upper thread tension can be digitalized with the Digital Tension, providing stable stitching. No more relying on individual feel. When thread breakage is detected, sewing operation is stopped automatically and warning is given to the operator, leading to the less detectives.

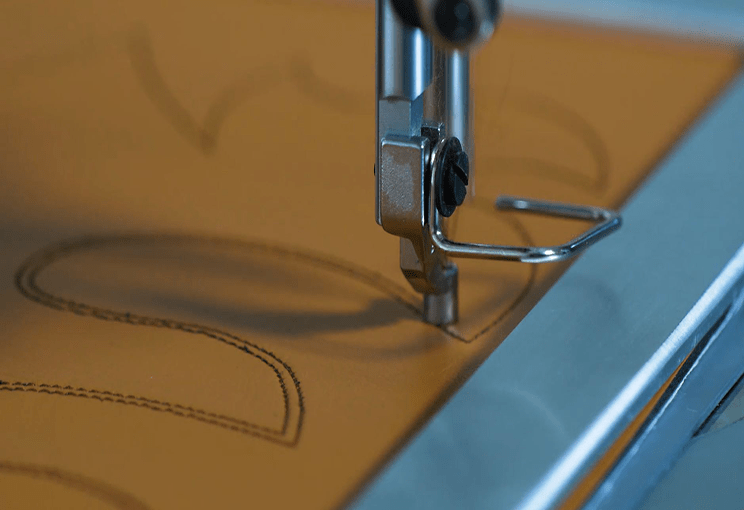

Great Needle Penetration
Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control(intermittent impact) automatically increases the penetration force.

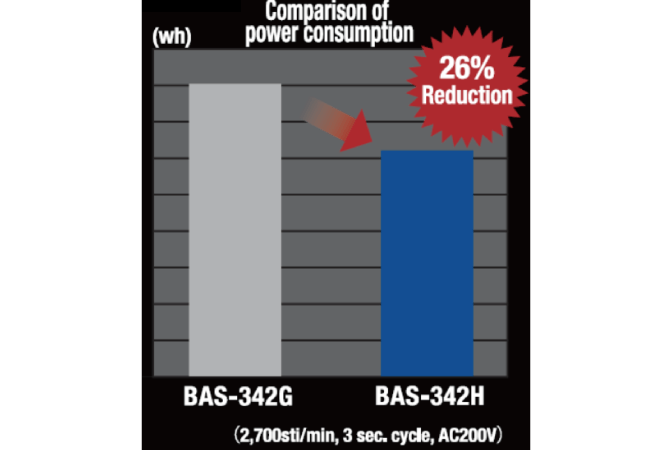

High Energy Saving
This machine is the most energy-saving programmable electronic pattern sewing machine among in its class, while realizing high-speed sewing and strong needle penetration force.

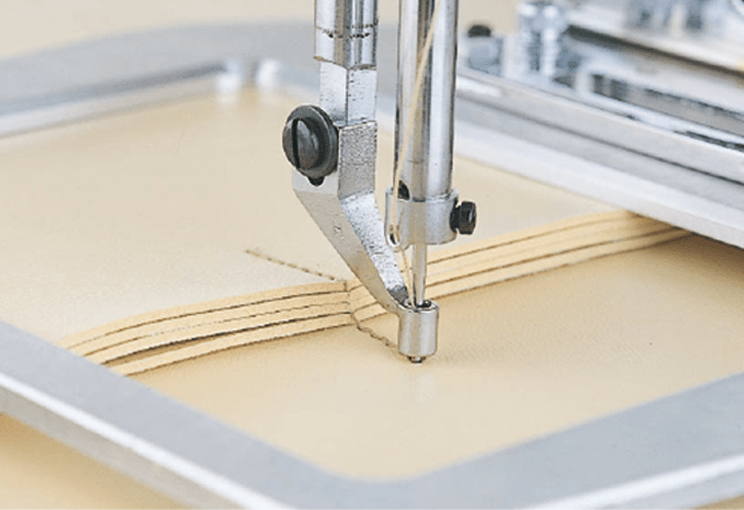

Uniform and Stable Thread Tightness
It realized stable thread tightening at low tension sewing. Excessive or insufficient pressing by the stepping foot can be prevented, enabling a finish with uniform thread tightening.

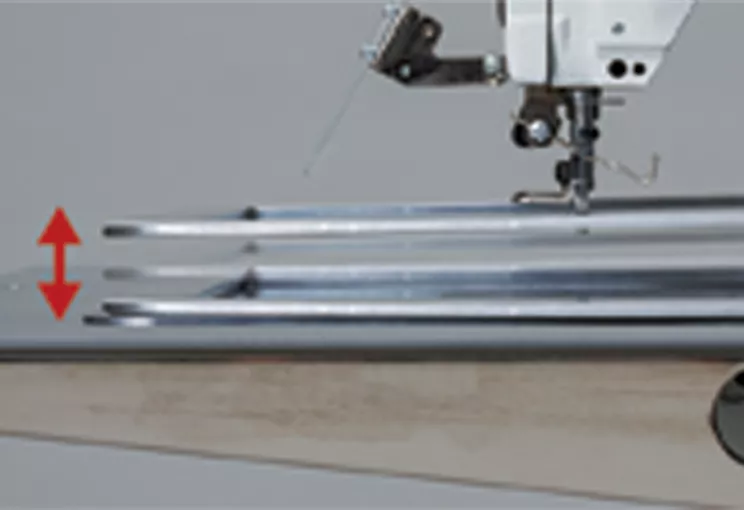

Easy and Accurate Positioning of Materials
You can select a desired work clamp lowering operation from two patterns by changing the memory switch settings (Two-step lowering or One-step lowering). (BAS-341H/342H only)

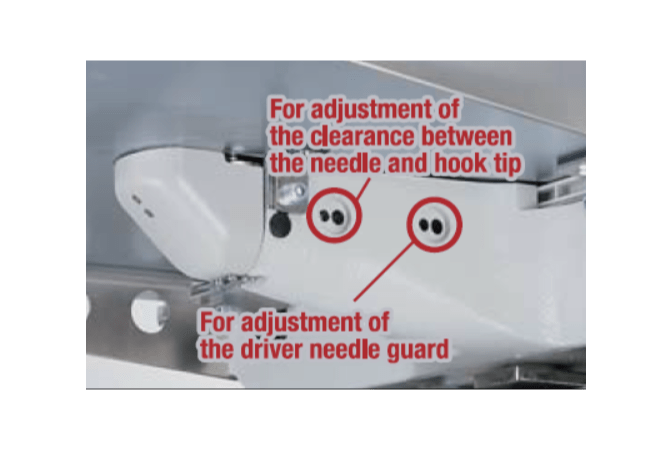

Simple Adjustment
The driver can be adjusted from the side without tilting the sewing machine. This reduces time taken for adjustment and improves productivity when materials are changed.

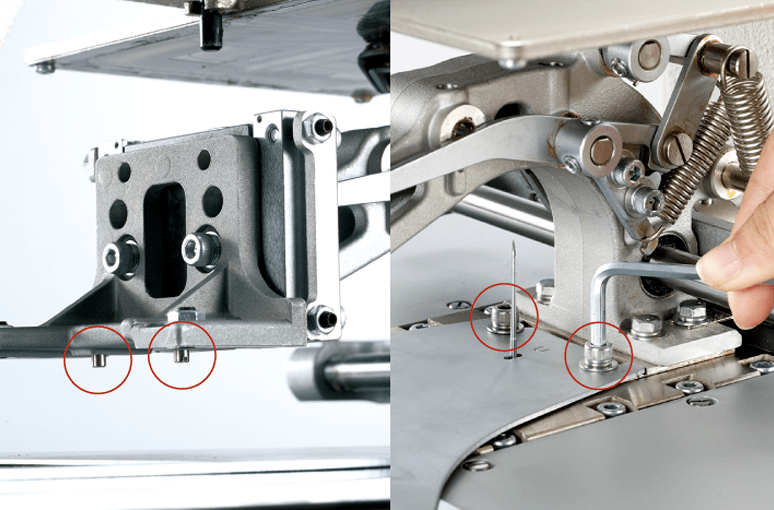

Simple and Easy Sewing Pattern Change
The work clamp can be replaced quickly by loosening the two screws (BAS-311HN/326H), and four screws (BAS-341H/342H). When replacing the feed plate, align the reference holes of needle plate and the feed plate.

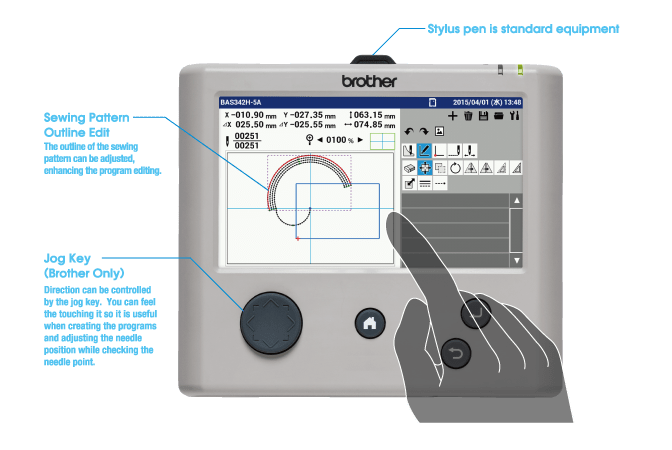

Best User Experience with LCD Touch Panel
7-inch large screen and easy programming functions via LCD touch panel enable an intuitive operation. It is easily understood without the instruction manual or previous experience in fewer steps.

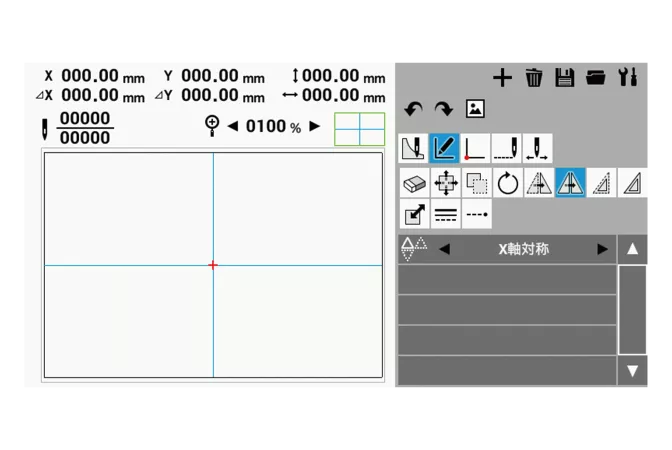

Program Creating
Program creation can be available easily with illustration icons.

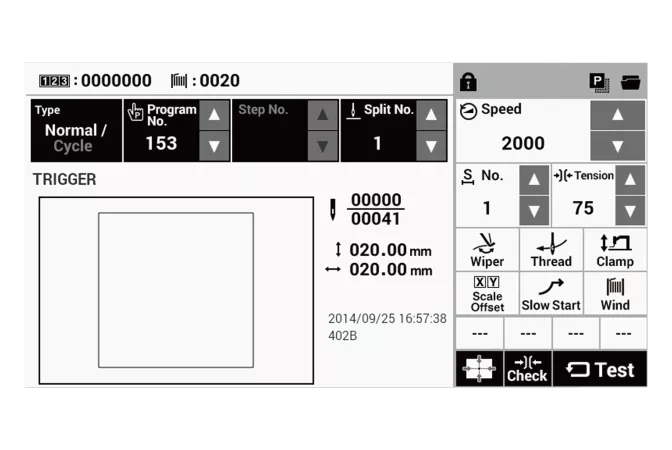

Program Selection
The information regarding the program is seen at one screen. The setting change is available on it.

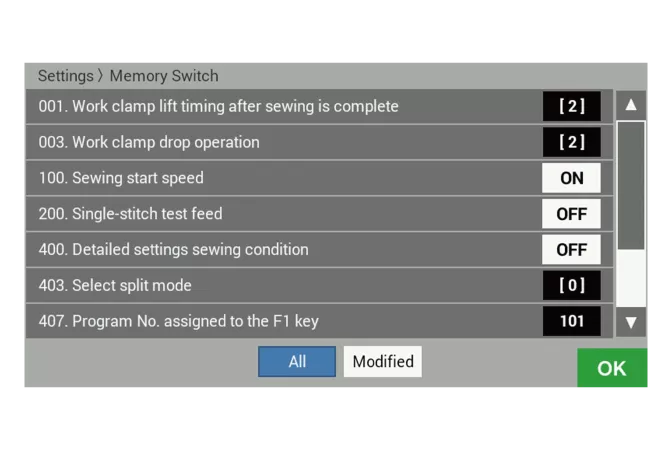

Memory Switch Settings
The detail of Memory switch settings can be checked on the panel without the manuals.

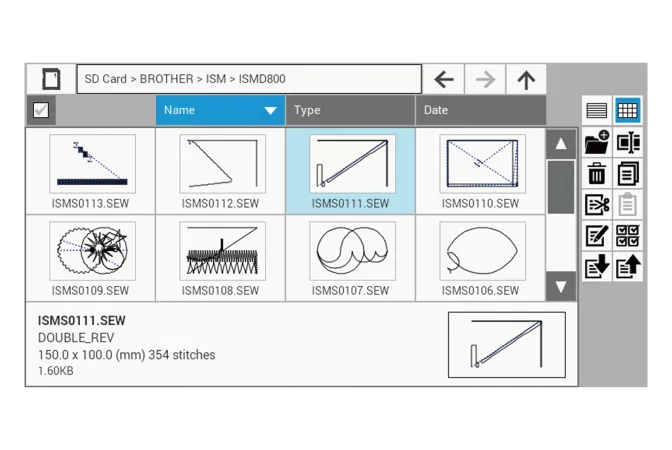

File Selection
The preview of the program can be seen on the panel.

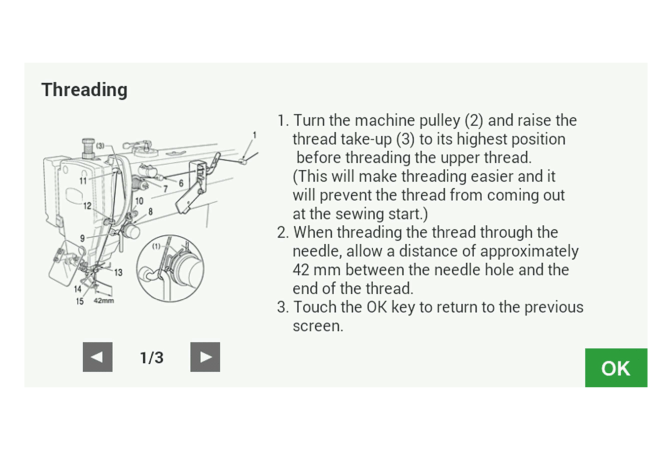

Manual Display
The mistakable preparations such as Threading the upper thread, Winding the lower thread can be checked on the panel.

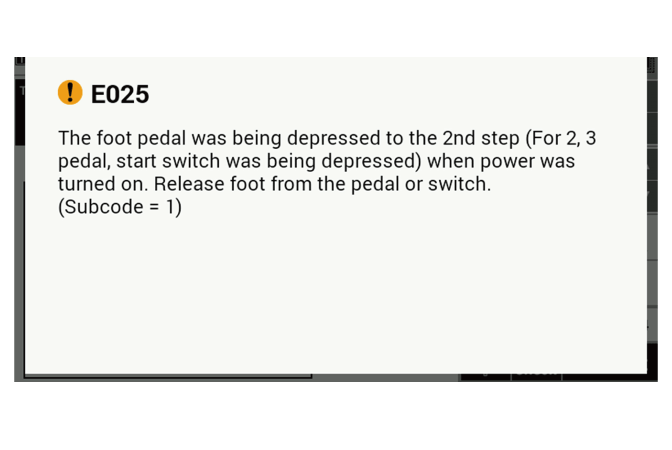

Error Message Display
When an error occurs, the error message and solution are displayed on the panel, helping reduce the downtime.
Multimedia Support

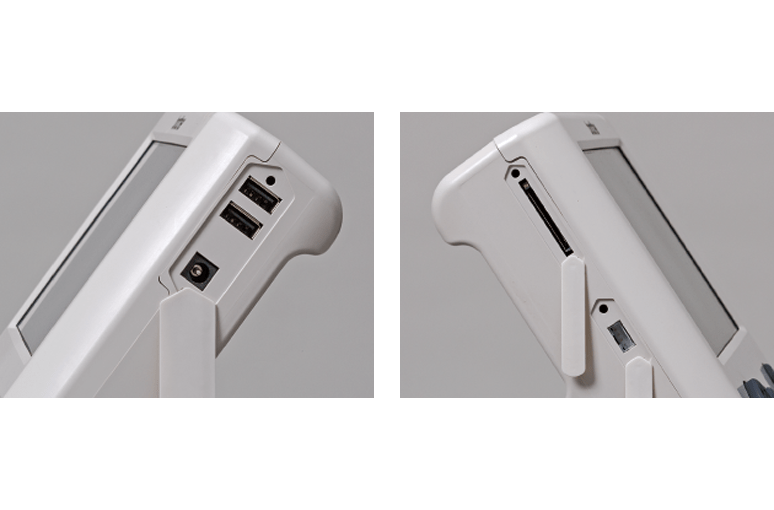

Supporting the SD card (1 slot), USB (2 port). An expansion port is also supported, enabling to connect with a bar code reader etc.
Specifications
| BAS-311HN | |
|---|---|
| Stitch form | Single needle lock stitch |
| Max. sewing speed | 2,800sti/min*1 |
| Max. sewing area | 150x100mm |
| Feed mechanism | Intermittent feed (pulse motor drive) |
| Stitch length | 0.05-12.7mm (per 0.05mm) |
| Max. number of stitches | 20,000 stitches (per program) |
| Max. number of programs | 999 |
| Work clamp drive | -S: Pulse motor drive
-A: Pneumatic drive |
| Work clamp lift amount | -S: Max. 25.0mm
-A: Max. 30.0mm |
| 2-step work clamp | -S: Integrated-type
-A: Separate-type |
| Height of steppong presser foot | 22.0mm |
| Stepping presser foot stroke | 2.0mm-4.5mm、4.5mm-10.0mm or 0.0mm（Default setting: 3.0mm） |
| Hook | Double-capacity shuttle hook |
| Thread wiper | ◯ |
| Thread trimmer | ◯ |
| Digital tension | ◯ (excluding the seat belt specification) |
| Thread breakage detector | ◯ |
| Data strage media | Internal flash memory (data addition is available with external memory) |
| Motor | AC servo motor 550W |
| Weight | Machine head: 88kg
Control box: 9kg |
| Power | Single phase: 100V/200V
3-phase: 200V/220V/380V/400V |
| Air pressure/ Consumption | 0.5MPa 1.8l/min |
