NEXIO BAS-365H
NEXIO BAS-365H
- Bridge Type Programmable Electronic Pattern Sewer (Max. sewing area: 700mmx400mm)
- ・Bridge type mechanism provides great sewing quality at higher sewing speeds
- ・The XY independent feed mechanism delivers exceptional material control for consistently high-quality sewing results.
- ・Achieve world-class productivity and superior seam quality with high-speed sewing performance.
- ・User-friendly color LCD touch panel for intuitive operation and easy machine setup.
- ・Designed to support a wide range of sewing applications and materials.
Information
Overview
World’s top-class productivity and sewing quality with Great sewing speeds（Max. 2,700sti/min)
Bridge type mechanism has a feed mechanism of X and Y that drives independently so that it provides great sewing quality at higher sewing speeds（Max. 2,700sti/min).

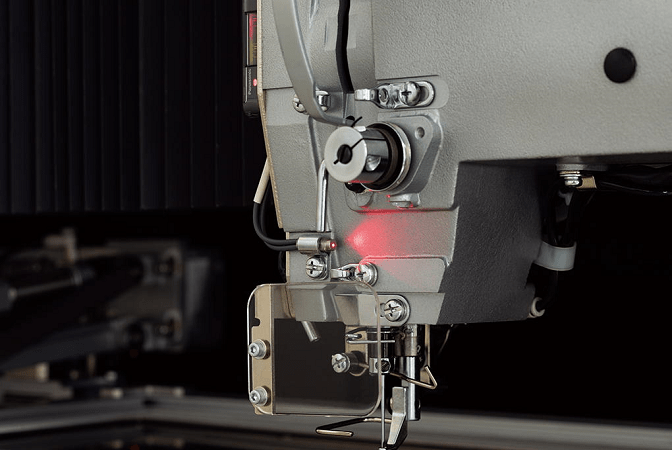

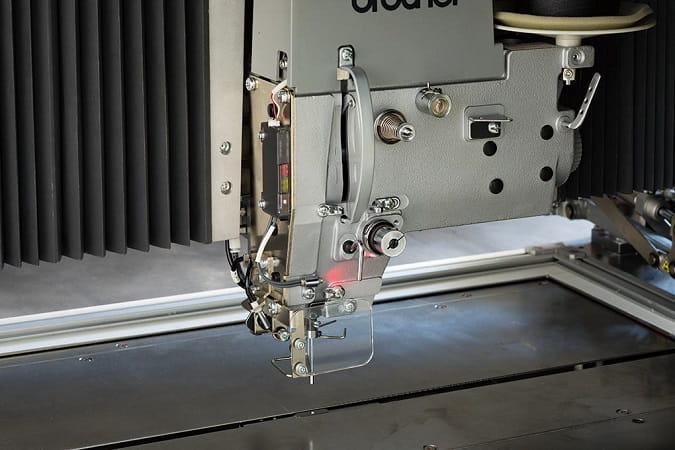

Include new digital tension and needle thread breakage detection mechanism as standard equipment
Various sizes of sewing threads can be used by the new digital tension which increases the setting range of the upper thread tension. Detects kind of needle thread breakage opportunity immediately, and which reduces defective workpieces.
Brother’s unique control technology prevents pattern shape losing when sewing at high speed.
It keeps accuracy of stitch point and attains both of high sewing quality and productivity even at high speed sewing.

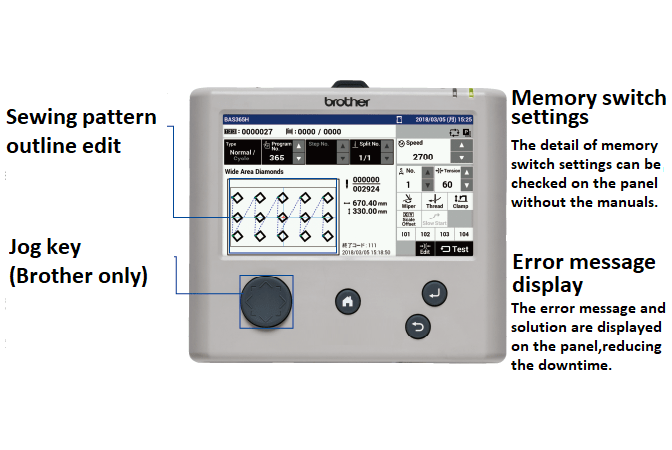

User-friendly color LCD with touch panel display
7-inch large screen and easy programming functions via LCD touch panel enable an intuitive easy-to-use experience.
Features
Specifications
| BAS-365H | |
|---|---|
| Stitch form | Single needle lock stitch |
| Max. sewing speed | 2,700sti/min (R spec: 2,200sti/min) |
| Max. sewing area | 700x400mm |
| Footprint | 1,699mmx1,296mm |
| Feed mechanism | Intermittent feed (pulse motor drive) |
| Stitch length | 0.05-20.0mm (per 0.05mm) |
| Max. number of stitches | 100,000 stitches (per program) |
| Max. number of programs | 999 |
| Work clamp lift amount | Max. 52.5mm |
| Height of stepping presser foot | 25mm(highest needle stop position) |
| Stepping presser foot stroke | 0-10mm(per 0.1 mm) |
| Work clamp | Pneumatic work clamp |
| Head lifting function | - |
| Head lifetable | - |
| Needle cooler | Standard equipment |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Digital tension | Standard equipment |
| Thread breakage detector | Standard equipment (fiber sensor drive) |
| Data storage media | Internal flash memory (data addition is available with external memory) |
| Motor | AC servo motor 550W |
| Weight | Approx. 640kg |
| Power | Single phase 200V / 220V 3-phase 200V -240V |
| Apparent power/Power consumption | 1000VA/ 590Wh |
| Air pressure/Consumption | 0.5MPa/Needle cooler ON:8l/min OFF:0.2/min |
