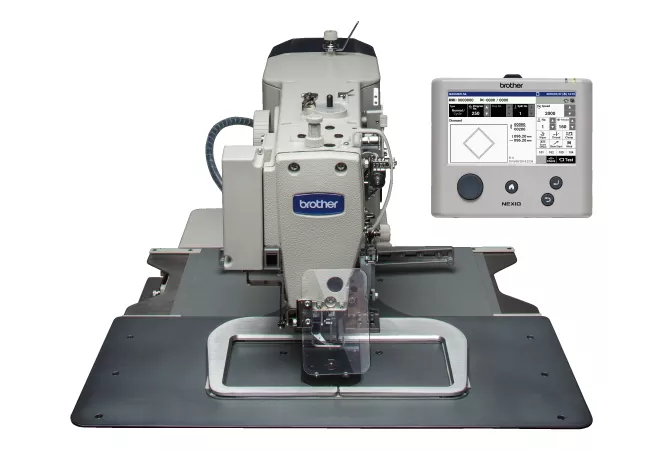

NEXIO BAS-326H-484 NEXIO BAS-326H-484SF
NEXIO BAS-326H-484 NEXIO BAS-326H-484SF
- Direct Drive Programmable Electronic Pattern Sewer (Sewing area: 220×100mm)
- ・Treble hook reduces the frequency of bobbin changes
- ・Accurate sewing finishes for extra-heavy materials
- ・Intermittent presser foot(-SF only)
- ・Intuitive LCD Touch Panel for an Enhanced User Experience
Information
Overview
Accurate and Strong Sewing even for Extra-heavy Materials Exceptional Stitch Quality
The use of the advanced controlled, heavy duty feed mechanism provides excellent, superb stitch quality and tight stitching even for extra-heavy sewing applications.
Also, the upper thread feeding device which supplies the necessary length of upper thread at the start of sewing, preventing the thread from pulling-out regardless of the material feeding amount.

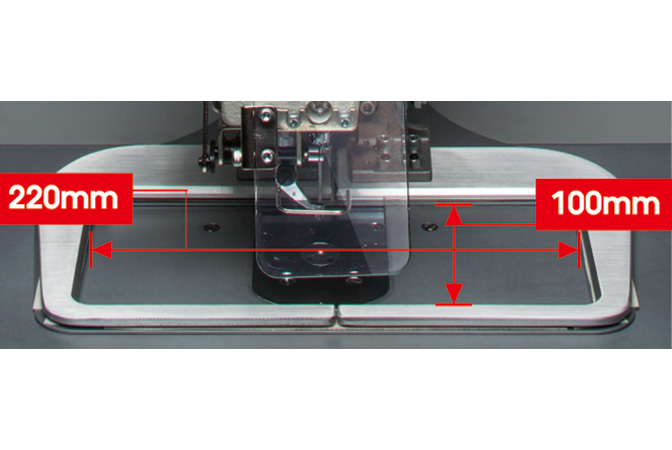

Sewing Area is Enlarged to 220mmx100mm

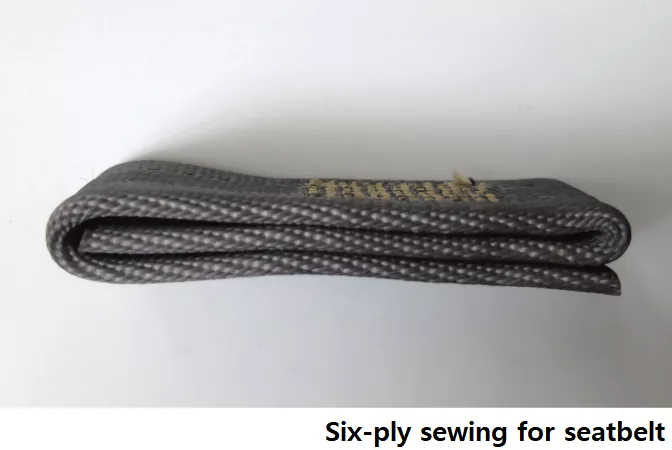

The sewing area is enlarged to 220mmx100mm, compared to the previous model. It is suitable not only for seatbelt sewing but also for webbing materials.
Treble Hook Equipped
Treble hook is equipped as standard so that the frequency of bobbin changes can be reduced, leading to productivity enhancement.

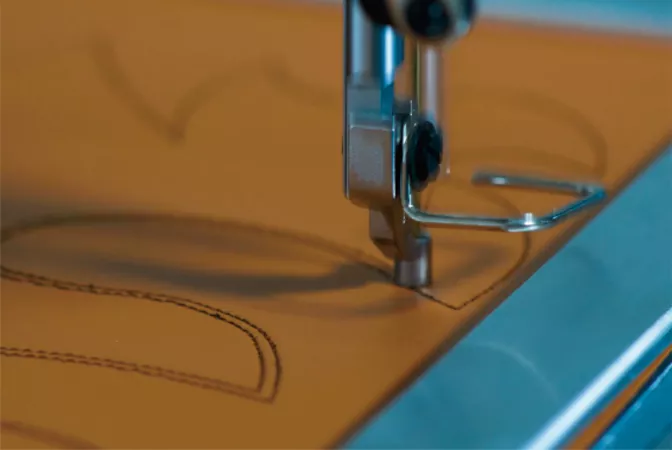

Great Needle Penetration
Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control(intermittent impact) automatically increases the penetration force.
Features
Specifications
| BAS-326H-484 | BAS-326H-484SF | |||
|---|---|---|---|---|
| Stitch form | Single needle lock stitch | |||
| Max. sewing speed | 2,200sti/min | |||
| Max. sewing area | 220.0x100.0mm | |||
| Feed mechanism | Intermittent feed (pulse motor drive) | |||
| Stitch length | 0.05～12.7mm | |||
| Number of stitches | 500,000 stitches (Internal memory) | |||
| Max. number of stitches | 20,000 stitches (per program) | |||
| Number of sewing data items that can be stored | 999（Internal memory, SD card, USM memory)* | |||
| Work clamp lift method | Pneumatic cylinder method, Separate-type work clamp | |||
| Work clamp height | Max. 27.5mm | |||
| Intermittent presser foot lift amount | ‐ | 19.5mm | ||
| Intermittent presser foot stroke | ‐ | 2.0mm-4.5mm, 4.5mm-10.0mm or 0.0mm (default setting 3.0mm) | ||
| Hook | Treble hook | |||
| Wiper device | ◯ | |||
| Thread trimmer | ◯ | |||
| Thread take-up lever | ◯ | |||
| Thread breakage detector | ◯ | |||
| Number of cycle programs | 30 | |||
| Motor | AC servo motor 550W | |||
| Weight | Machine head: 88kg Control box: 9kg |
|||
| Power | Single-phase 110V / 220V / 230V 3-phase 220V / 380V / 400V |
|||
| Air pressure / Consumption | 0.5MPa 1.81/min | |||
