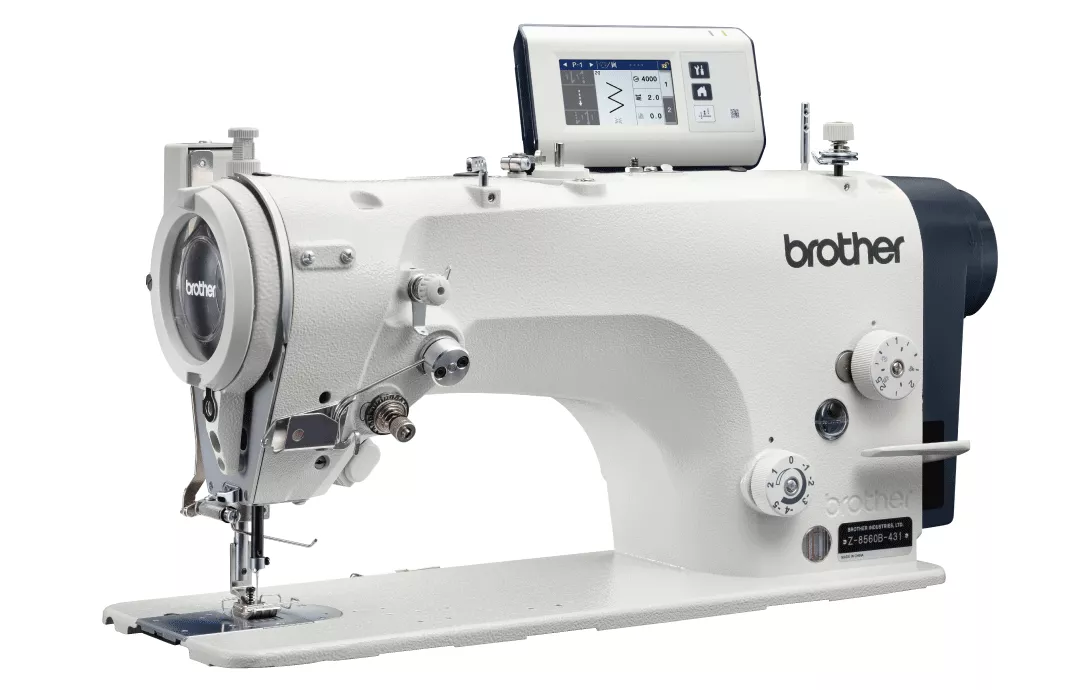

NEXIO Z-8560B
NEXIO Z-8560B
- Electronic Direct Zigzag Lock Stitcher with Thread Trimmer
- ・User- intuitive Color LCD Display Touch Panel
- ・Productivity improvement with loT capabilities
- ・High sewing quality achieved by electronic control
Catalog, Manual, Parts-book Download
Information
Overview

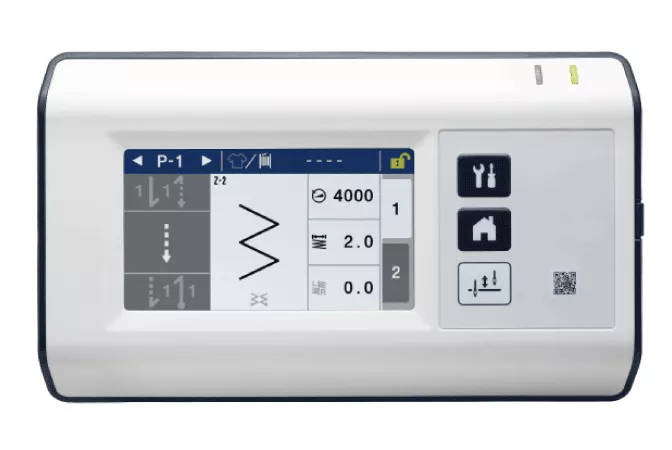

User- intuitive Color LCD display Touch Panel
The Color LCD display touch panel display items with illustration icons, offering easy user-intuitive operation.

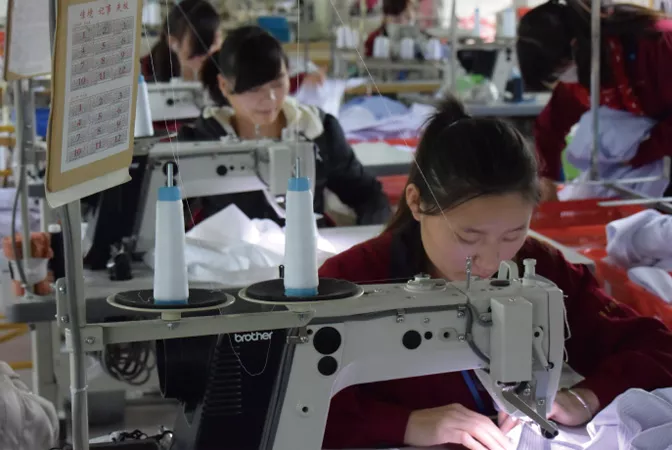

Productivity Improvement with IoT Capabilities
This model is loT applicable. The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work. *It is applicable for Brother’s IoT system. For more information, please refer to the catalog of “Brother Industrial Sewing Machine Network System”.
High sewing quality achieved by electronic control

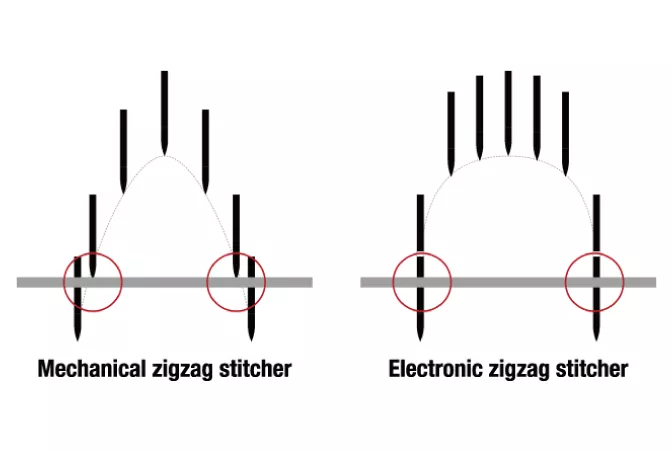

The pulse motor control with servo control is adopted for the zigzag mechanism. The needle moves perpendicular to the material so that needle deflection or position slippage does not occur even at high speed sewing.

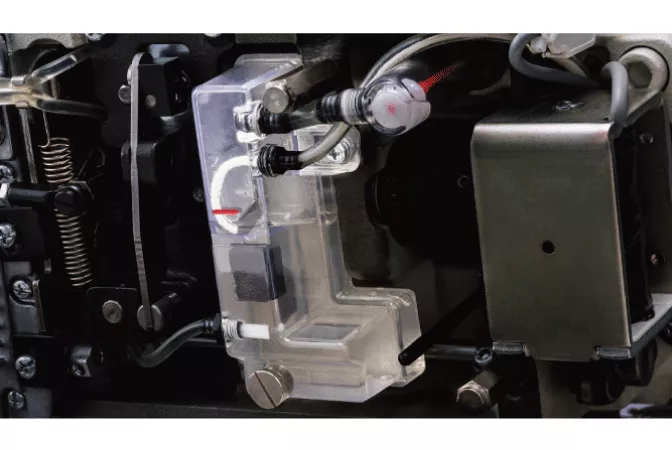

Clean sewing with no concern of oil staining
Equipped the sealed oil tank, supplying oil only to the rotary hook. Having no oil around the needle bar and thread take-up mechanism reduces concern for oil staining.
Features
Equipped with the Color LCD touch panel, it becomes easy to set various sewing patterns with intuitive operation of the display. The servo motor control greatly improves the stitch pattern accuracy contributing to the improvement of sewing quality.
The Color LCD display touch panel display items with illustration icons, offering easy user-intuitive operation. There are two types of operator panel display. Both the detailed home screen and quick home screen are easy to use without concern for panel operation. There are two types of operator panel display. Both the detailed home screen and quick home screen are easy to use without concern for panel operation.
This model is loT applicable. The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work. *It is applicable for Brother’s IoT system. For more information, please refer to the catalog of “Brother Industrial Sewing Machine Network System”.
The pulse motor control with servo control is adopted for the zigzag mechanism. The needle moves perpendicular to the material so that needle deflection or position slippage does not occur even at high speed sewing.

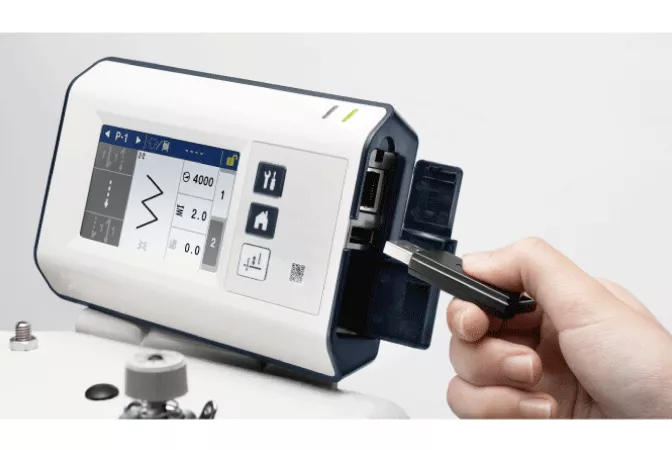

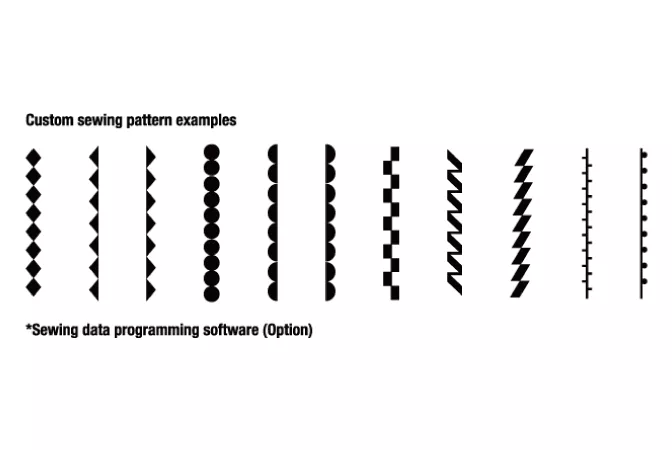

You can add and save your own unique stitch pattern using the operation panel or PS - 300B *1. You can easily copy data and upload to other sewing machines using the USB media. You can also save patterns edited on the control panel so it is easy to manage data. * 1：Sewing data programming software (Option)

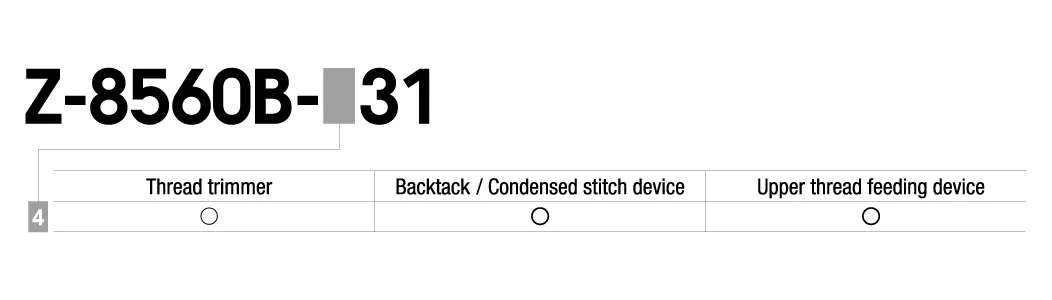

Specifications
| Stitch form | Zigzag stitch |
|---|---|
| Max. sewing speed | 5,000sti/min*1 |
| Max. zigzag width | 10.0mm*2 |
| Application | Light materials Medium materials |
| Presser foot height | Manual : 6mm Knee : 10mm |
| Presser foot pressure | 10-35N |
| Needle | Schmetz 134SUKNm70/10 |
| Max. feed amount | 4mm |
| Height of feed dog | 1mm |
| Arm pocket width | 300.0mm |
| Arm pocket height | 121.5mm |
| Arm bed size | 517.5x178.0mm |
| Sewing pattern | 8 types, 14 patterns built-in*3 |
| LED | Standard equipment |
| Motor | AC servo motor (450W) |
| Weight | Machine head : 49kg Control box : 8kg |
| Power | 3-phase: 200V-230V Max. electric power consumption 400VA |
- *1 The factory setting is 4,000sti/min. The speed may be limited by some sewing patterns or settings of zigzag width.
- *2 The factory setting is 8mm. To make it 1mm, gauge parts and a stopper for the size are necessary (Optional).
- *3 Custom patterns can be added up to 99 patterns with a total of 49,500 stitches, 500 stitches or less per pattern.
