NEXIO BAS-342JSM
NEXIO BAS-342JSM

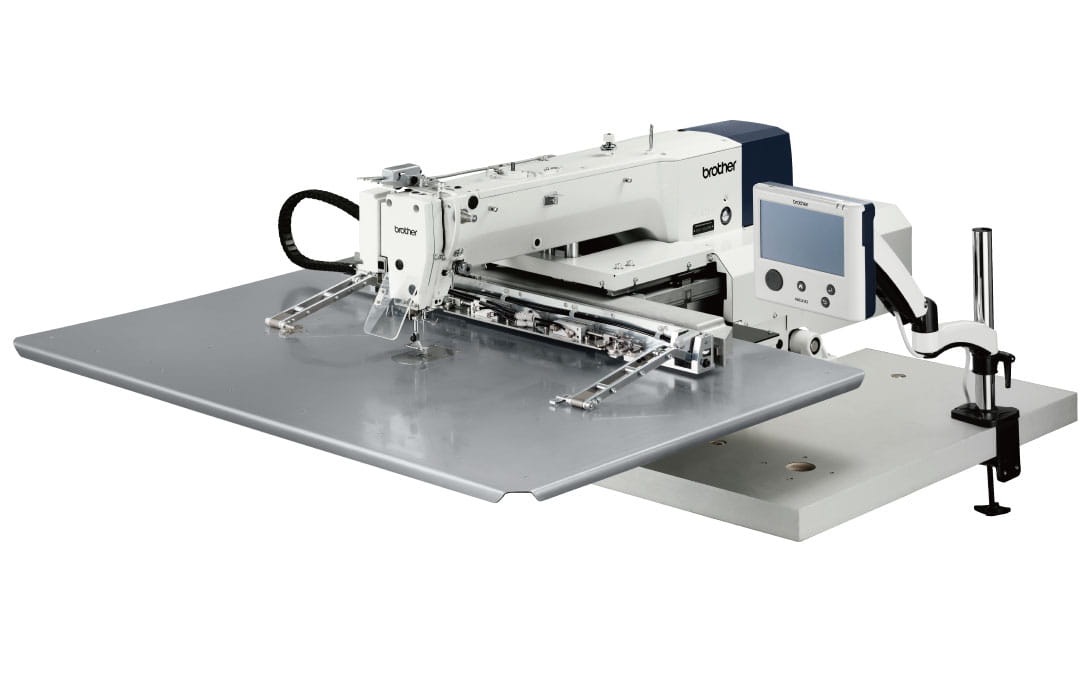

- Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed
- ・The highly functional LCD touch panel offers easy programming, and the preparation time can be reduced.
- ・Sewing data is sewn faithfully and attractively
- ・Quick and accurate positioning can be made by two-step lowering work clamp
- ・Economical operation with low power consumption
- ・Sewing area: 500mm×350mm
Catalog, Manual, Parts-book Download
Information
Overview
High-rigid Feeding Commands Beautiful Stitching Even at High-speed Sewing
Higher rigid feed mechanism was adopted while achieving the world’s top-class sewing speed of 2,500sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.

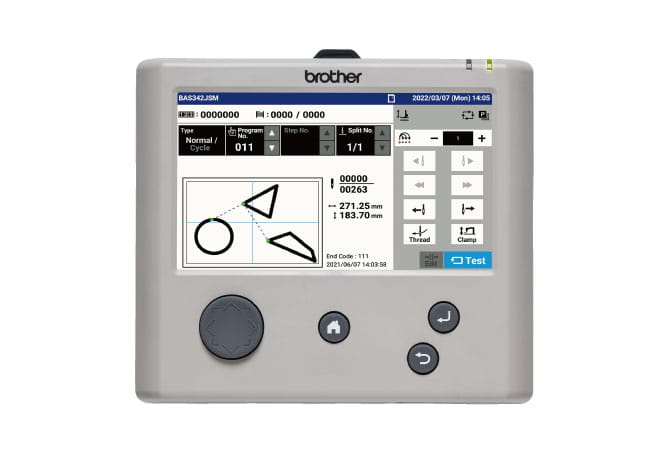

Best User Experience with LCD Touch Panel
7-inch large screen and easy programming functions via LCD touch panel enable an intuitive operation. It is easily understood without the instruction manual or previous experience in fewer steps.
Skip Stitch Prevention
The new presser foot mechanism helps to prevent skip stitch at sewing start. It will help reduction of sewing defects.
Features
Specifications
| BAS-342JSM | ||||
|---|---|---|---|---|
| Stitch form | Single needle lock stitch | |||
| Application | Heavy materials | |||
| Max. sewing speed | 2,500sti/min | |||
| Max. sewing area | 500 x 350mm | |||
| Feed mechanism | Intermittent feed (pulse motor drive) | |||
| Stitch length | 0.05-20.0mm (per 0.05mm) | |||
| Max. number of stitches | 20,000 stitches (per program) | |||
| Max. number of programs | 999 | |||
| Work clamp drive | Pneumatic drive | |||
| Quick change system | Integrated | |||
| Height of steppong presser foot | 27mm (highest needle stop position) | |||
| Stepping presser foot stroke | 0mm-10mm (per 0.1mm) | |||
| Hook | Double-capacity shuttle hook | |||
| Thread wiper | Standard equipment | |||
| Thread trimmer | Standard equipment | |||
| Digital tension | Standard equipment | |||
| Data strage media | Internal flash memory (data addition is available with external memory) | |||
| Motor | AC servo motor 550W | |||
| Weight | Machine head: Approx. 176kg Control box: Approx. 18kg |
|||
| Power | Single phase,: 220V | |||
| Air pressure/ Consumption | 0.5MPa, 1.8l/min | |||
