DA-928A
DA-928A
- ・Clean Sewing with Minimum Lubrication System
- ・A New Knife with Highly Safe Shape
- ・Beautiful Sewing Finishes with New Presser Mechanism
Catalog, Manual, Parts-book Download
Information
Overview

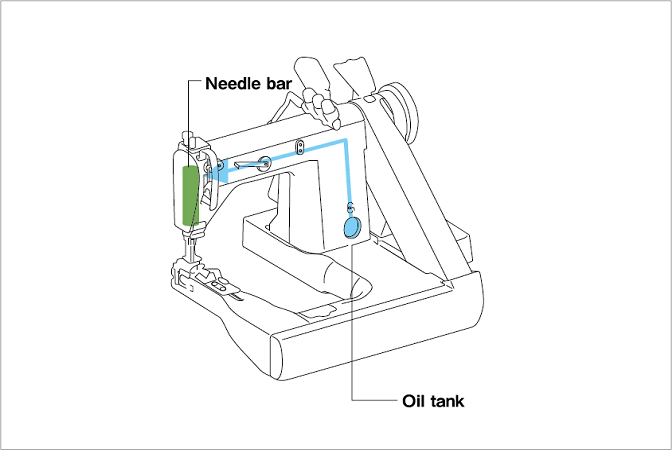

Minimum lubrication system can be realizing clean sewing
Minimum lubrication system supplies limited oil only to the needle bar and the upper shaft realizing clean sewing for your valued products.

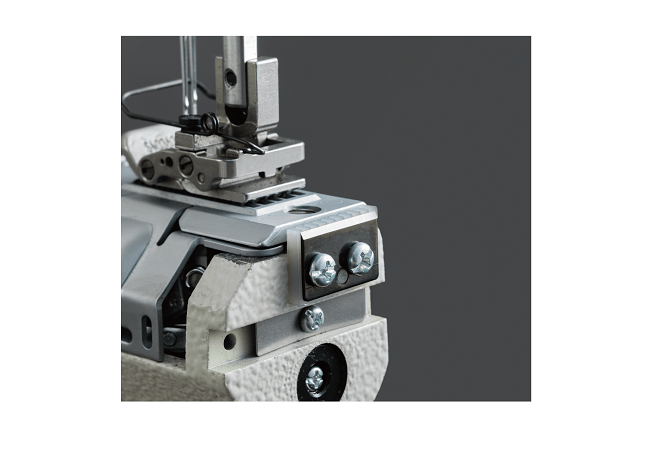

A new knife with highly safe shape
Sewing work can be done safely with a new knife with highly safe shape.
Improved presser foot mechanism offers high quality sewing.
Lightened presser foot mechanism prevents uneven material feeding, meeting the highest quality standard and the follow-up ability with respect to the presser foot pressure has been improved by 20%.
Features
Specifications

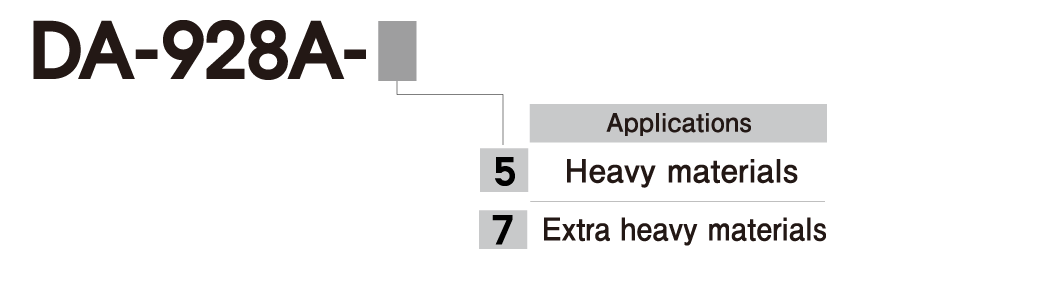

| Specifications | -5 | -7 | |
|---|---|---|---|
| Applications | Heavy material | Extra heavy materials | |
| Lubrication type | Minimum lubrication | ||
| Max. sewing speed | 4,000sti/min*1 | ||
| Max. stitch length | 4.7mm | ||
| Height of presser foot | 11mm | ||
| Needle bar stroke | 35mm | ||
| Needle | Schmelz TVX5 | ||
| #130 | #140 | ||
| Needle gauge | 2-needles | - '1/4 |
|
| 3-needles | 1/8 X 2 | ||
| Height of feed dog | 1.3mm | ||
| Weight | 49kg | ||
| Size | 465mm x 500mm x 340mm | ||
| Outer perimeter of cylinder | 171mm | ||
| Presser foot presser | 58.8~98N (6~10kgf) | ||
