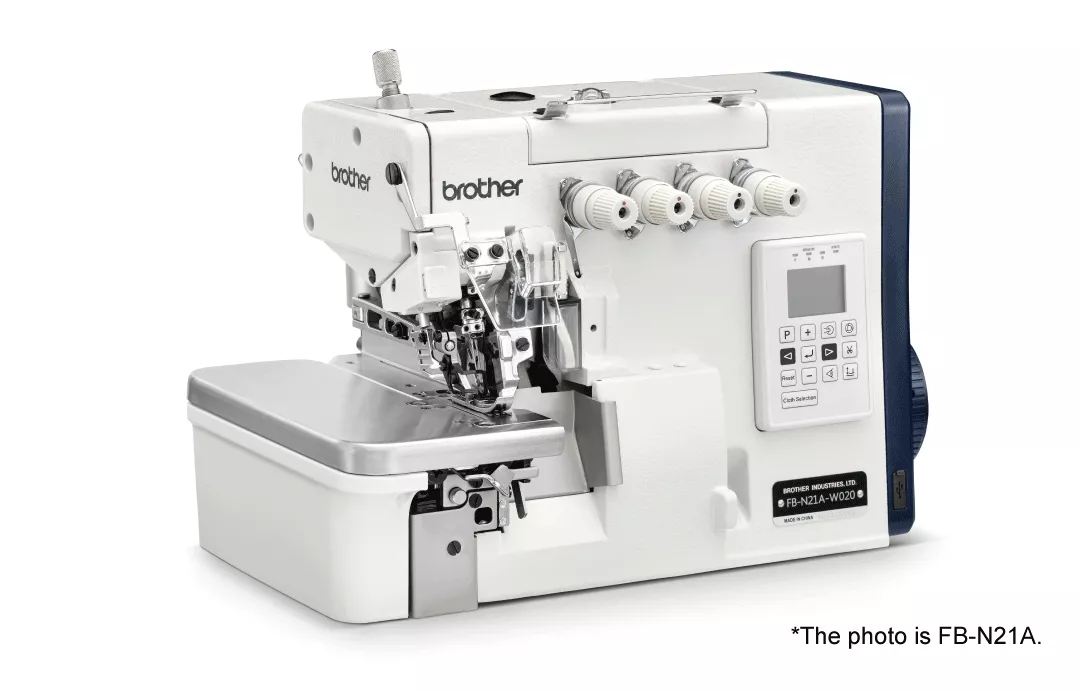

FB-N31A
FB-N31A
- High Speed Safety Stitch Sewing Machine
- ・Electric Presser Foot Lifter
- ・Automatic Tape Cutter
- ・Built-in Direct Drive Motor
- ・Lint Collector (Option)
Catalog Download
Information
Overview

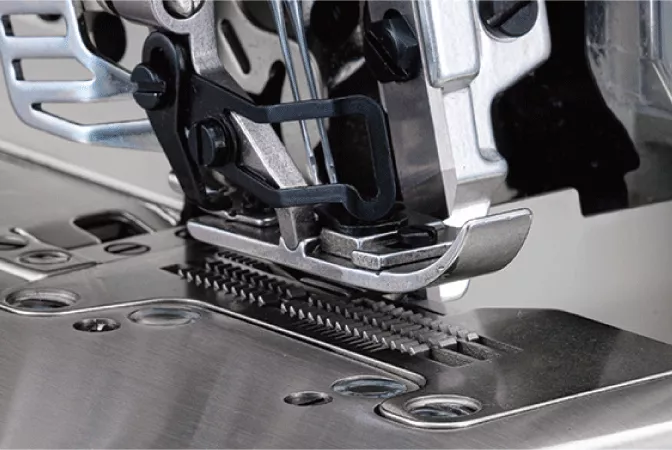

Electric Presser Foot Lifter
Presser foot is automatically lifted/dropped after sensor detect material. It increases productivity.

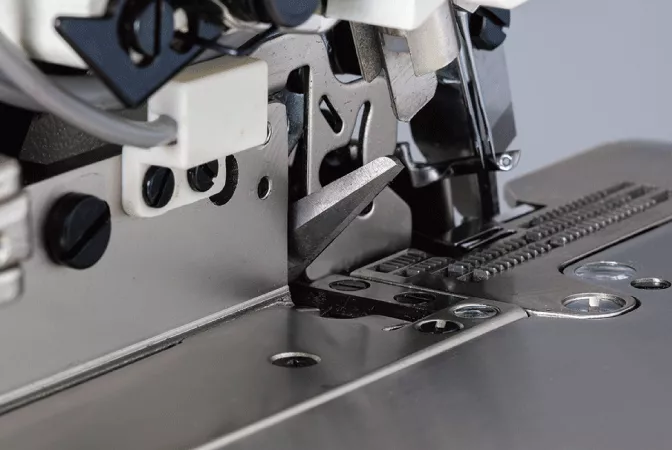

Automatic Tape Cutter
A thread chain is automatically cut after sensor detect material. It increases operational efficiency.

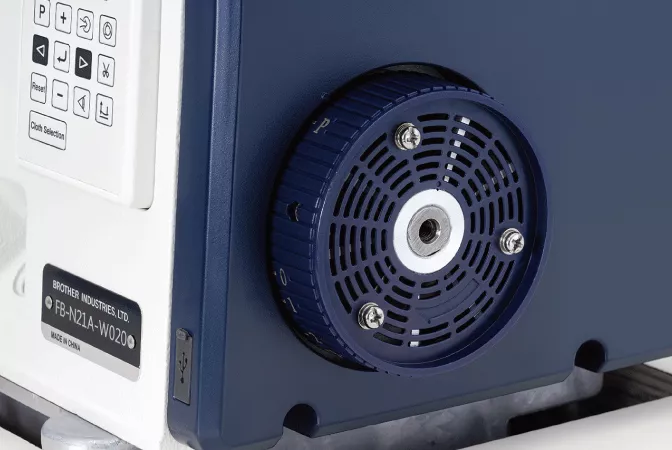

Built-in Direct Drive Motor
Powerful and electricity save.

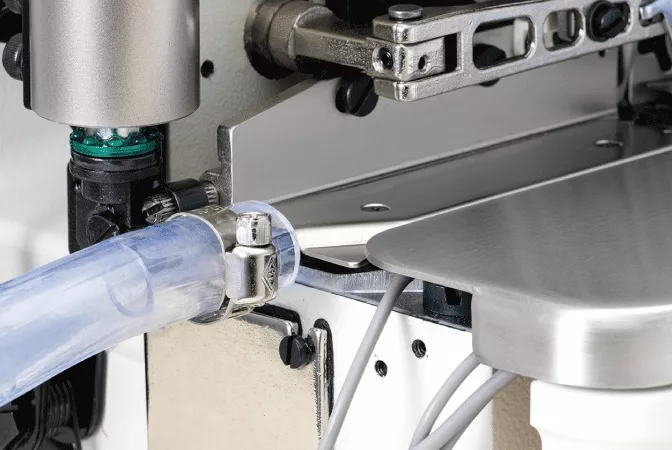

Lint Collector (Option)
A thread chain and/or material after cut is sucked by air suction.
Features
Specifications
| N31A- | -5030 | -5030P | -5050 | -5050P | -50G0 | -50G0P | -6030 | -6030P |
|---|---|---|---|---|---|---|---|---|
| Fabric weights | Medium/Heavy | Heavy | Extra Heavy | Medium/Heavy | ||||
| Max. speed(sti/min) | 6,000 | 5,500 | 5,500 | 6,000 | ||||
| No. of needles | 2 | 2 | 2 | 3 | ||||
| No. of threads | 5 | 5 | 5 | 6 | ||||
| Needle space | 5mm | 5mm | 5mm | 5mm | ||||
| Overedge width | 5mm | 6mm | 6mm | 2+4mm | ||||
| Stitch length | 0.7-4.0mm | 1.0-4.6mm | 1.0-4.6mm | 0.7-4.0mm | ||||
| Diff. feed ratio | 0.7-1.5mm | 0.8-1.4mm | 0.8-1.4mm | 0.7-1.5mm | ||||
| Presser foot lift | 5.5mm | 7.0mm | 7.0mm | 5.5mm | ||||
| Needles | DC×27 #14 | DC×27 #19 | DC×27 #19 | DC×27 #11 | ||||
| Electric Presser Foot Lifter | ✓ | N/A | ✓ | N/A | ✓ | N/A | ✓ | N/A |
| Tape Cutter | ✓ | N/A | ✓ | N/A | ✓ | N/A | ✓ | N/A |
