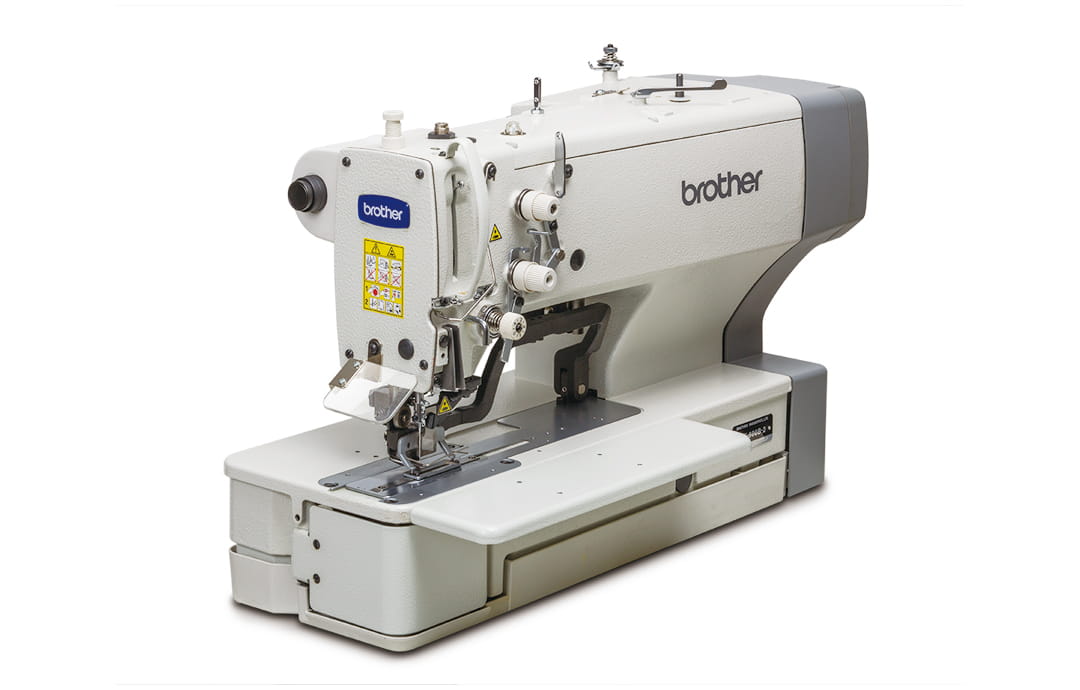

HE-800B
HE-800B
- ・Less sewing troubles with the newly designed hook
- ・Beautiful sewing finishes even fine patterns
- ・High energy saving by direct drive system
- ・Easy and operator-intuitive operation panel
- ・Comfortable sewing with less noise
Catalog, Manual, Parts-book Download
Information
Overview
Perfect sewing finishes
Equipped with the new hook, it prevents sewing troubles such as thread breakages and insufficient thread tightening.

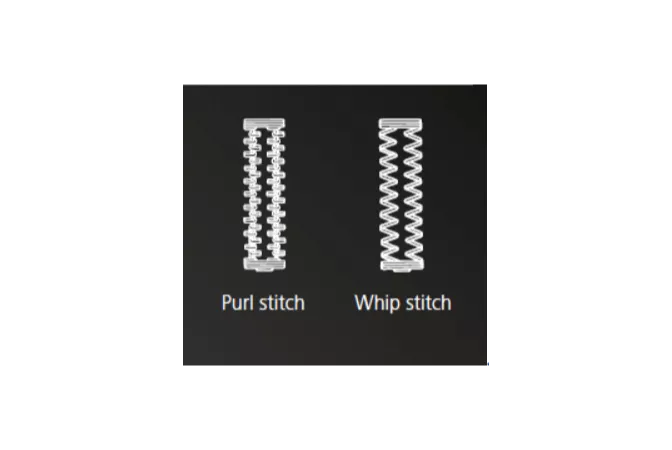

It realizes stitches even if with low tension, providing a quality finish for purl stitch and whip stitch.
Beautiful sewing finishes even fine patterns
Minimum resolution of needle zigzag is fined to 0.05mm, preventing the fuzz caused by the cutter. It's capable of various fine sewing patterns as well.
The industry's top-class energy savings
High energy saving's has been realized by direct drive system, which keeps the power transmission loss of the motor to a
minimum with an original motor developed by Brother.

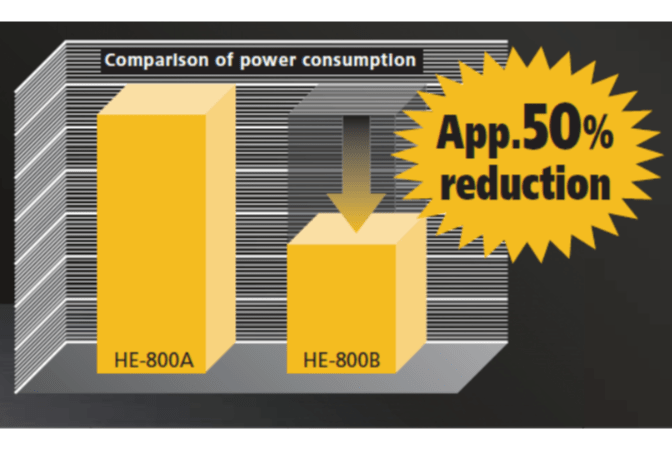

The power consumption of the machine is approximately 50% less than that of the previous model HE-800A.
This is industry’s top-class energy saving and environment-conscious machine.

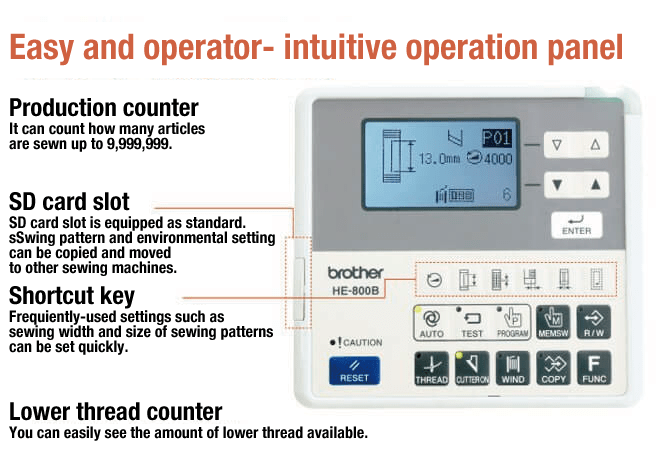

The HE-800B is equipped with a liquid crystal display (LCD) and indicates display items with icons and letters. Setting and check of sewing patterns and change of sewing modes are easy to understand and carry out. It supports multilinguality as display language.
Features
High energy saving's has been realized by direct drive system, which keeps the power transmission loss of the motor to a minimum with an original motor developed by Brother. The power consumption of the machine is approximately 50% less than that of the previous model HE-800A. This is industry’s top-class energy saving and environment-conscious machine.
It is equipped with a liquid crystal display (LCD) and indicates display items with icons and letters. Setting and check of sewing patterns and change of sewing modes are easy to understand and carry out. It supports multilinguality as display language.
SD card slot
SD card slot is equipped as standard. Sewing pattern and environmental setting can easily be copied and moved to other sewing machines.
Shortcut key
Frequently-used settings such as sewing width and size of sewing patterns can be set quickly.
Production counter
It can count how many articles are sewn up to 9,999,999.
Lower thread counter
You can easily see the amount of lower thread available.
Mode key
Useful mode such as threading mode and thread winding mode can be set with one-touch key operation.
V-belt sound has been deleted by direct drive system. Less noise and comfortable environment help reduce stress and fatigue of operators who have to sit in front of the machines for long hours.
Specifications
| Max. sewing speed | 4,000sti/min | ||
|---|---|---|---|
| Zigzag mechanism | Pulse motor | ||
| Feed mechanism | Pulse motor | ||
| Work clamp lifter mechanism | Pulse motor | ||
| Height of work clamp | Max. 13mm (adjustable) | ||
| Cutter drive method | Double position solenoid | ||
| Lower thread holding device | ◯ | ||
| Bobbin presser | ◯ | ||
| Standard pattern shapes | 21 types | ||
| Number of standard sewing pattern | 50 | ||
| Max. Number of stitch/program | stitches (overall cycle program stitch no. 3,000 stitches) | ||

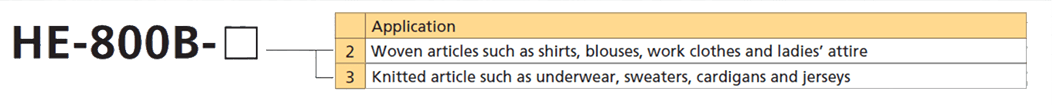

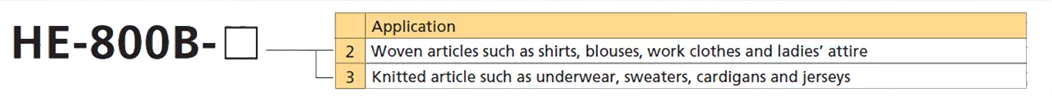

| Needle | -2 | -3 | |
| Schmetz 134 Nm90 | Schmetz 134 Nm75 | ||
| Data storage method | SD card (No guarantees of operation can be given for any media.) | ||
| Power supply | Single-phase 100V / 220V*1・3-phase 220V / 380V / 400V | ||
