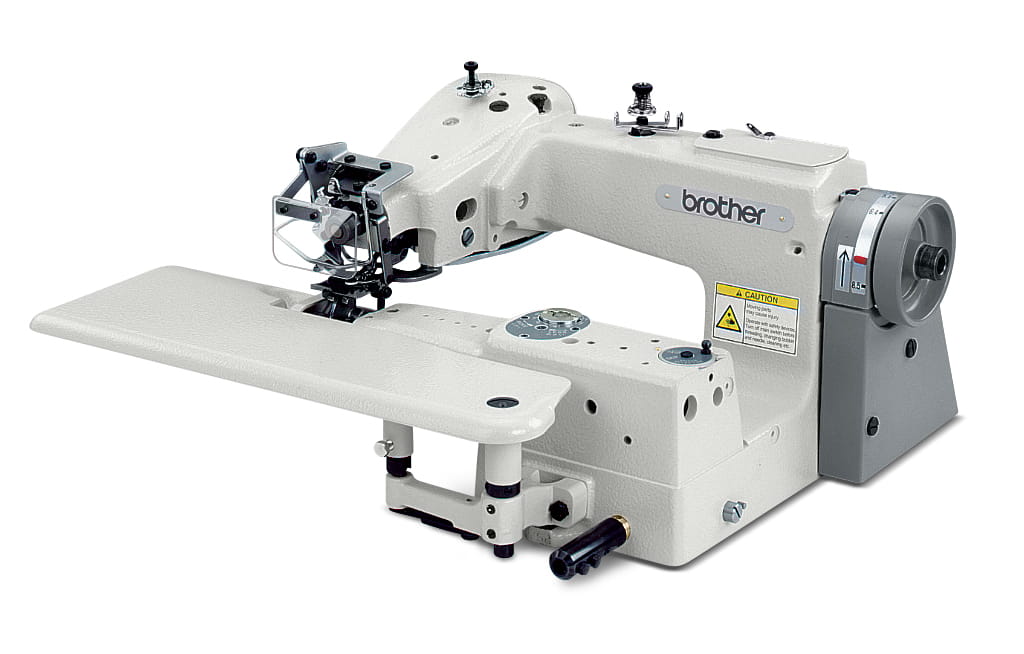

JC-9330
JC-9330
- Blind Stitcher
- ・One-touch switching between loose and tight seams
Catalog, Manual, Parts-book Download
Information
Overview
High-speed sewing up to a maximum of 3,000 rpm.

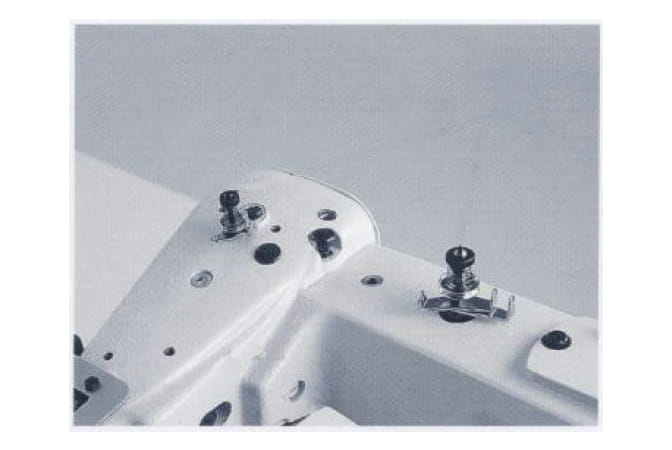

A double- tension mechanism offers superb sewing stability even at high-speed sewing for high-productivity.
Easy adjustment with one-touch

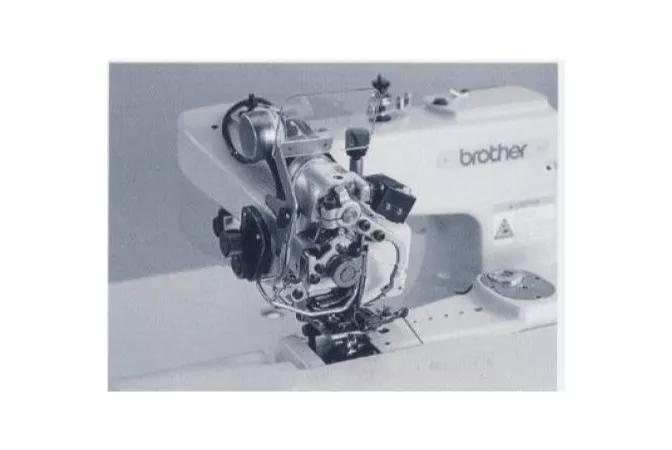

One-touch switching between loose and tight seams. Spring pressure of the cloth retainer can be adjusted easily with a liver. Also, clearance between needle and looper point can be easily lever-adjusted when changing the needle count.
Quick change with a dial
Change quickly from non-skip to skip stitches and back again at the touch of a dial.
Simple pitch adjustment with a push-button
Push-button-type sewing pitch adjustment.
Features
Specifications
| JC-9330 | |
|---|---|
| Application | Thin, Medium, Heavy Materials |
| Stitch | Single-Chain Blind Stitch |
| Needle | LW x 6T |
| Stitch length | 3.2 - 8.5mm |
| Presser Foot Lowering Amount | 10mm |
| Max. Sewing Speed | 3,000sti/min |
