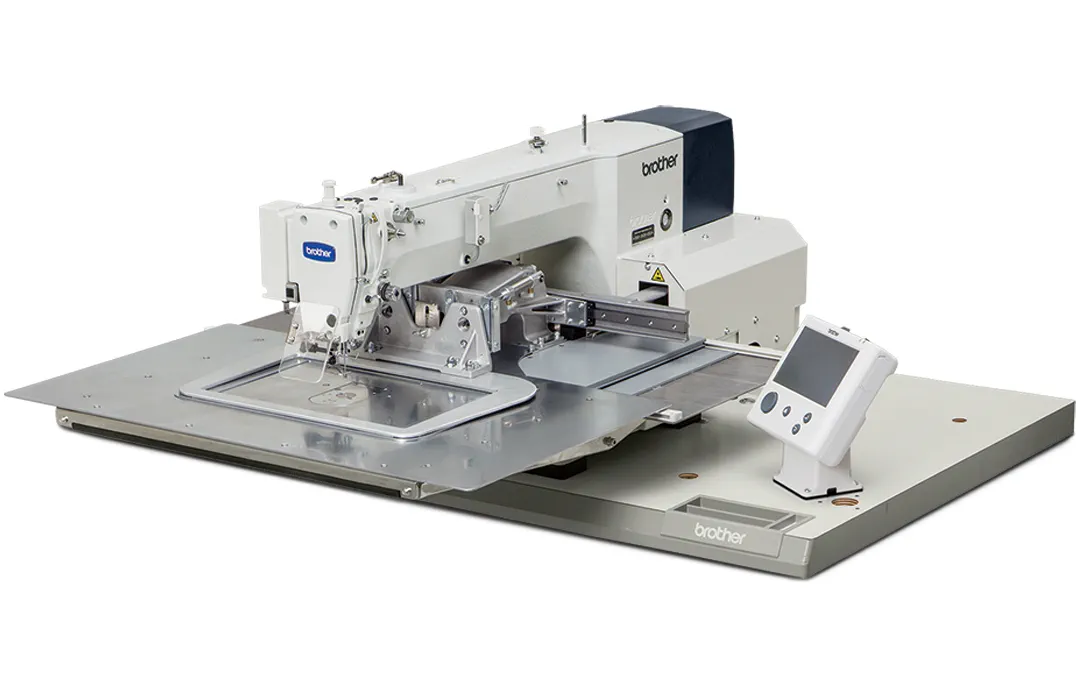

NEXIO BAS-342H
NEXIO BAS-342H
- ・World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing
- ・Great Needle Penetration
- ・High Energy Saving
- ・Best User Experience with LCD Touch Panel
Catalog, Manual, Parts-book Download
Information
Overview

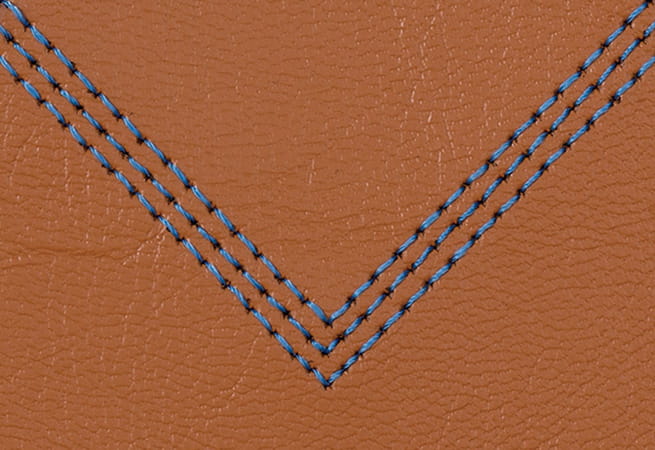

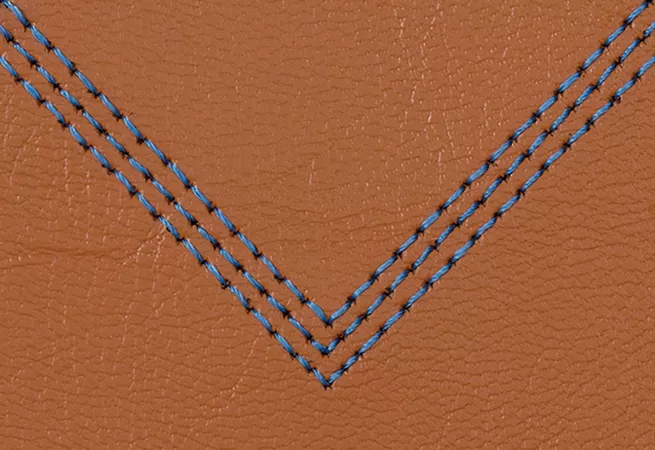

World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing
Higher rigid feed mechanism was adopted while achieving the world’s top-class sewing speed of 2,800sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.

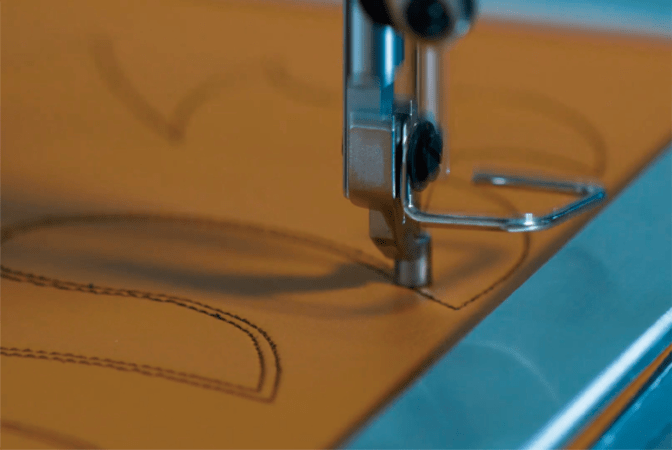

Great Needle Penetration
Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control(intermittent impact) automatically increases the penetration force.

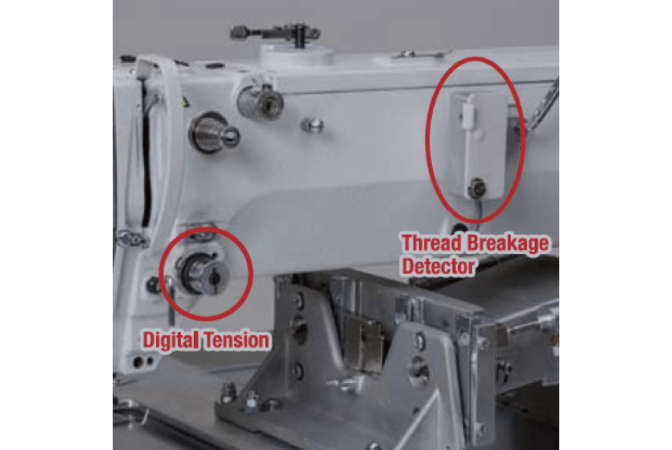

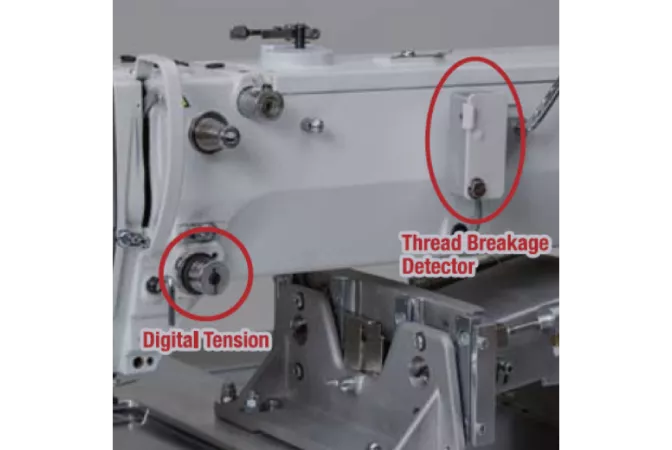

Digital Tension* and Thread Breakage Detector as Standard Equipment
The upper thread tension can be digitalized with the Digital Tension, providing stable stitching. No more relying on individual feel. When thread breakage is detected, sewing operation is stopped automatically and a warning is given to the operator, leading to the less detectives.

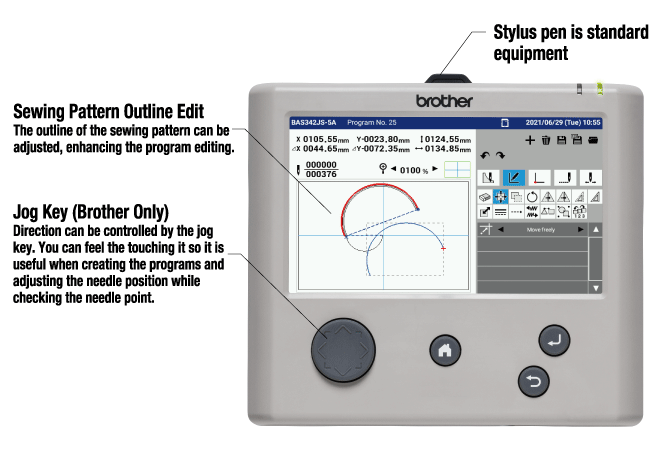

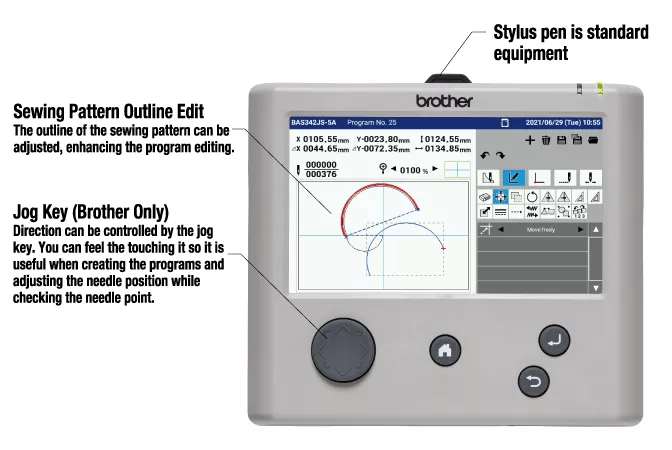

7-inch large screen and easy programming functions via LCD touch panel enable an intuitive operation. It is easily understood without the instruction manual or previous experience in fewer steps.
Features

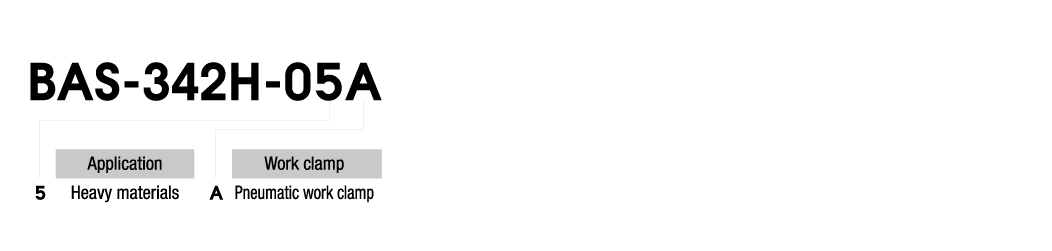

Specifications
| BAS-342H | ||||
|---|---|---|---|---|
| Stitch form | Single needle lock stitch | |||
| Max. sewing speed | 2,800sti/min*1 | |||
| Max. sewing area | 300.0x200.0mm | |||
| Feed mechanism | Intermittent feed (pulse motor drive) | |||
| Stitch length | 0.05-12.7mm (per 0.05mm) | |||
| Max. number of stitches | 20,000 stitches (per program) | |||
| Max. number of programs | 999 | |||
| Work clamp drive | Pneumatic drive | |||
| Work clamp lift amount | Max. 30.0mm | |||
| 2-step work clamp | Integrated-type | |||
| Height of steppong presser foot | 22.0mm | |||
| Stepping presser foot stroke | 2.0mm-4.5mm、4.5mm-10.0mm or 0.0mm (Default setting: 3.0mm) | |||
| Hook | Double-capacity shuttle hook | |||
| Thread wiper | ◯ | |||
| Thread trimmer | ◯ | |||
| Digital tension | ◯ (excluding the seat belt specification) | |||
| Thread breakage detector | ◯ | |||
| Data strage media | Internal flash memory (data addition is available with external memory) | |||
| Motor | AC servo motor 550W | |||
| Weight | Machine head: 174kg Control box: 18kg |
|||
| Power | Single phase: 220V 3-phase: 200V/220V/380V/400V |
|||
| Air pressure/ Consumption | 0.5MPa 1.8l/min | |||
