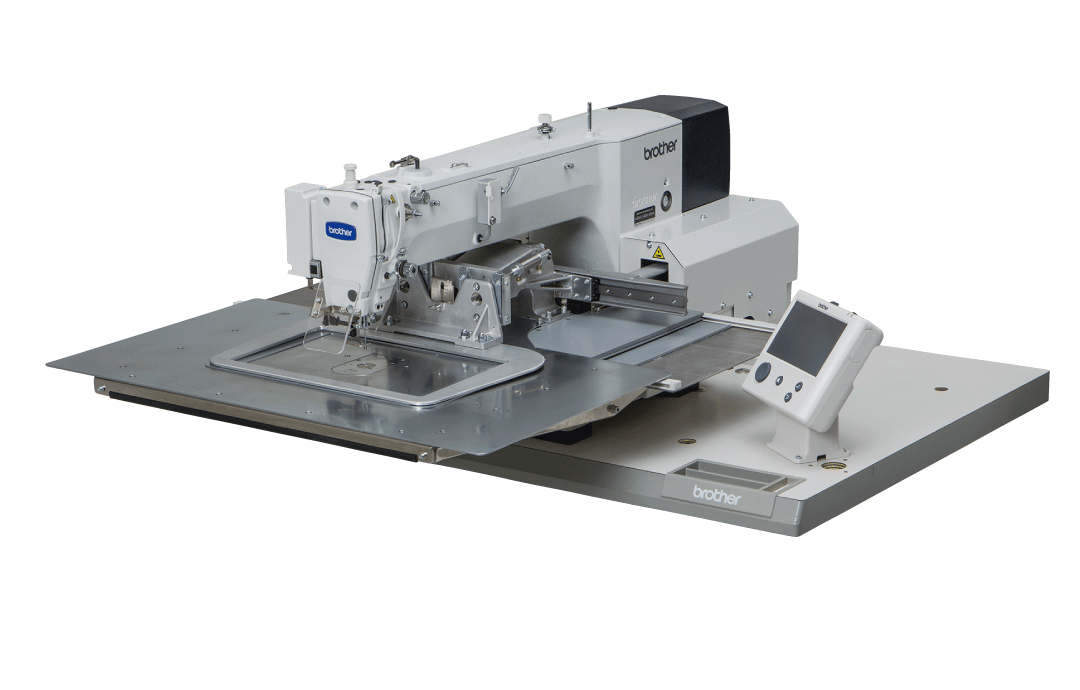

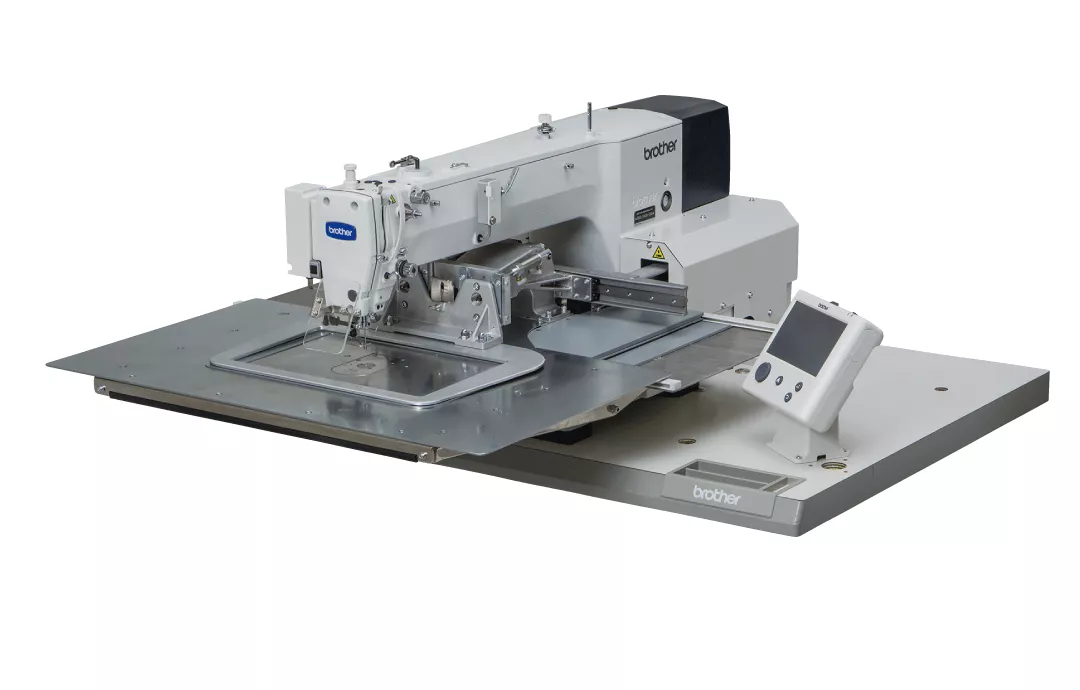

NEXIO BAS-342HX
NEXIO BAS-342HX
- ・World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing
- ・New Digital Tension Allows for A Wide Variety of Threads
- ・Reduction of Disposition of Thread Ends
Catalog, Manual, Parts-book Download
Information
Overview
World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing
Higher rigid feed mechanism was adopted while achieving the world’s top-class sewing speed of 2,800sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening.
New Digital Tension Allows for A Wide Variety of Threads
Various sizes of sewing threads can be used by the new digital tension which increases the setting range of the upper thread tension by 1.7 times compared to conventional machines.

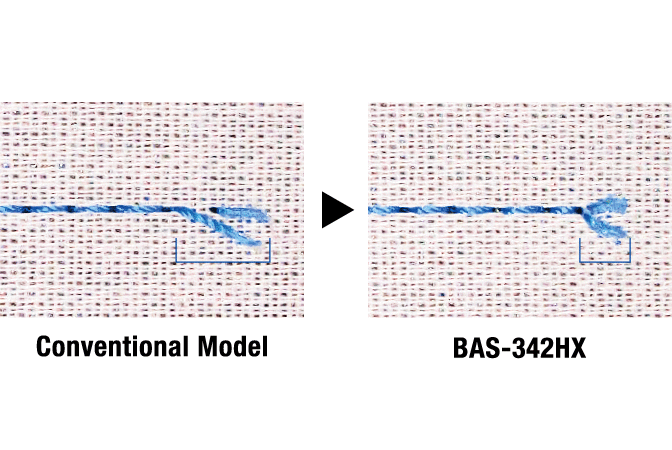

Reduction of Disposition of Thread Ends
Renewed thread trimmer cuts the thread, realizing short remaining threads. The disposition of thread ends after sewing will be able to reduced.
Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control (intermittent impact) automatically increases the penetration force.
Features

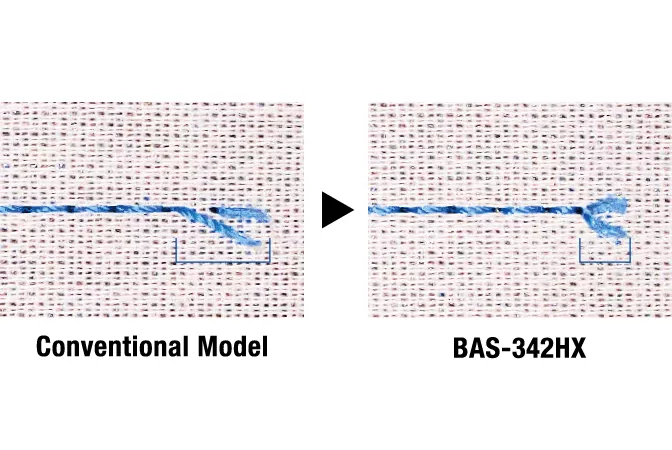

Renewed thread trimmer cuts the thread, realizing short remaining threads. The disposition of thread ends after sewing will be able to reduced.
Specifications
| BAS-342HX | |
|---|---|
| Stitch form | Single needle lock stitch |
| Max. sewing speed | 2,800sti/min*1 |
| Max. sewing area | 300 x200mm |
| Feed mechanism | Intermittent feed (pulse motor drive) |
| Stitch length | 0.05-12.7mm (per 0.05mm) |
| Max. number of stitches | 20,000 stitches (per program) |
| Max. number of programs | 999 |
| Work clamp drive | Pneumatic drive |
| Work clamp lift amount | Max. 30.0mm |
| 2-step work clamp | Unit work clamp |
| Height of steppong presser foot | 22.0mm |
| Stepping presser foot stroke | 2.0mm-4.5mm、4.5mm-10.0mm or 0.0mm（Default setting: 3.0mm） |
| Hook | Double-capacity shuttle hook |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipmen |
| Digital tension | Standard equipmen (excluding the seat belt specification) |
| Thread breakage detector | Standard equipmen |
| Data strage media | Internal flash memory (data addition is available with external memory) |
| Motor | AC servo motor 550W |
| Weight | Machine head: 174kg Control box: 18kg |
| Power | 1-phase: 220V 3-phase: 200V/220V/380V/400V |
| Air pressure/ Consumption | 0.5MPa 1.8l/min |
