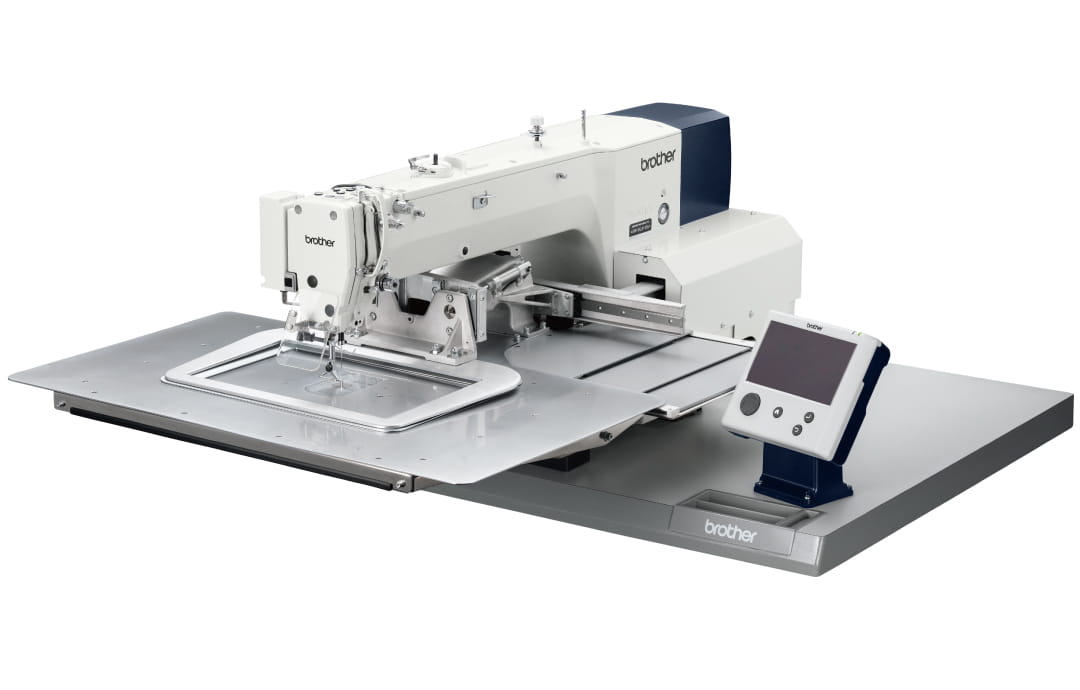

NEXIO BAS-342JX
NEXIO BAS-342JX
- ・"Skipped Stitch" and "Thread breakage" detection functions prevent the outflow of defective sewing products。
- ・"Fabric thickness detection" prevents sewing errors in advance.
- ・"Bird's nest reduction mechanism" supports beautiful seams.
- ・Sewing area: 300mm×200mm
Catalog, Manual, Parts-book Download
Information
Overview

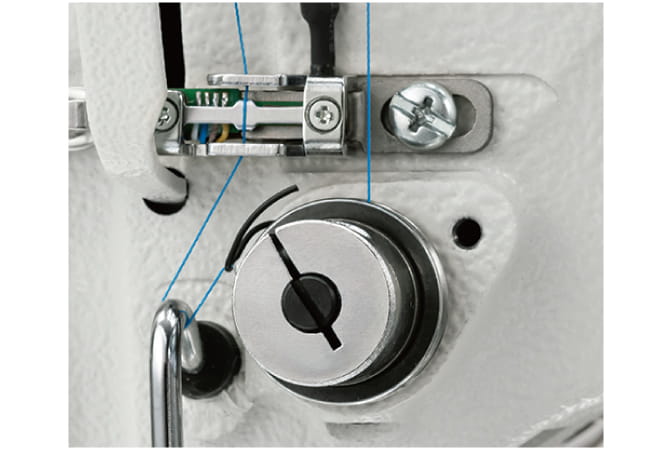

Skipped stitch detector (Brother Only)
Brother's newly developed original algorithm suppresses false detections due to dust and lint, and detects skipped stitches more accurately and stably. (Patent pending)

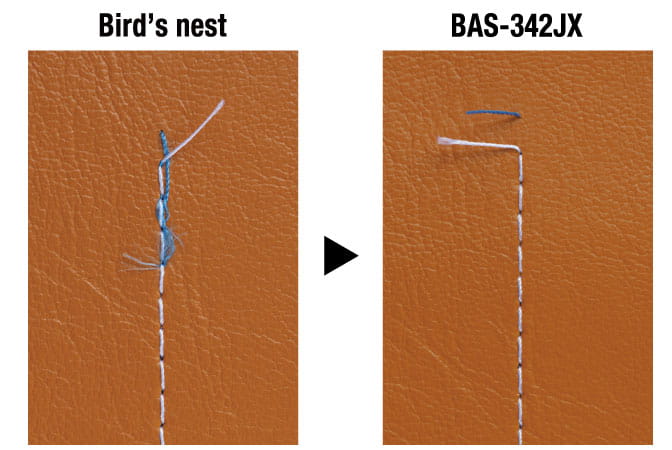

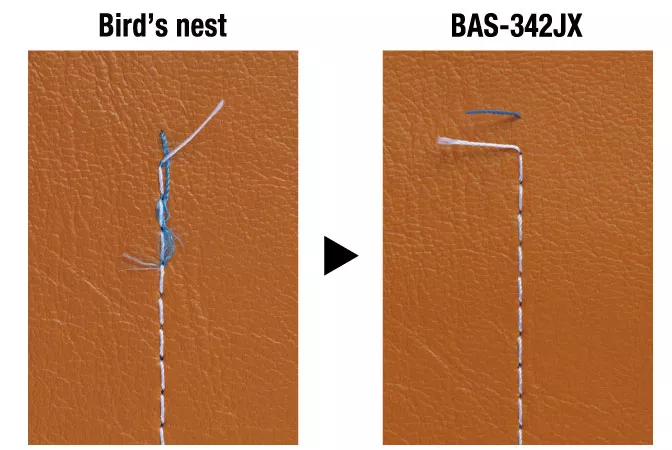

Reduced bird's nest function
By adopting a new thread trimming mechanism, the bird's nest is reduced by trimming threads at the beginning of sewing. *05A specification only

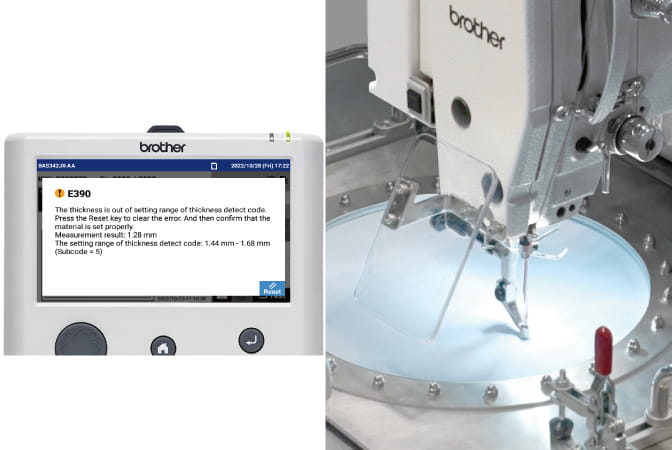

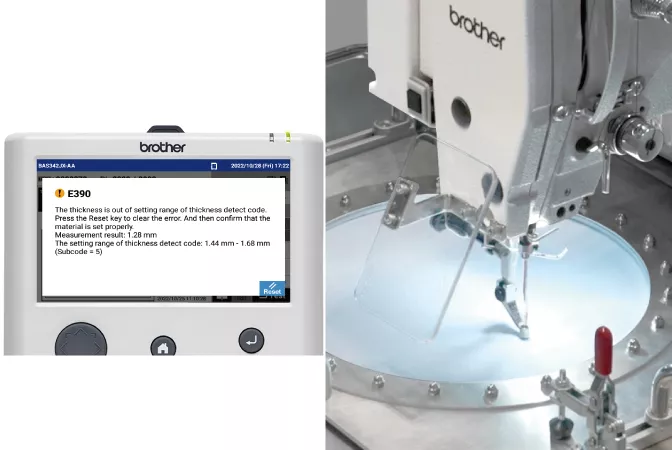

Fabric thickness detection
Measure the thickness of the fabric before sewing. If the set value is different, error is displayed to prevent work mistakes in advance. (available in standard)
The stepping foot controlled by the pulse motor prevents the thread coming out at the beginning of sewing. This helps reduce sewing defects.
Features
Measure the thickness of the fabric before sewing.
If the set value is different, error is displayed to prevent work mistakes in advance. (available in standard)
Specifications

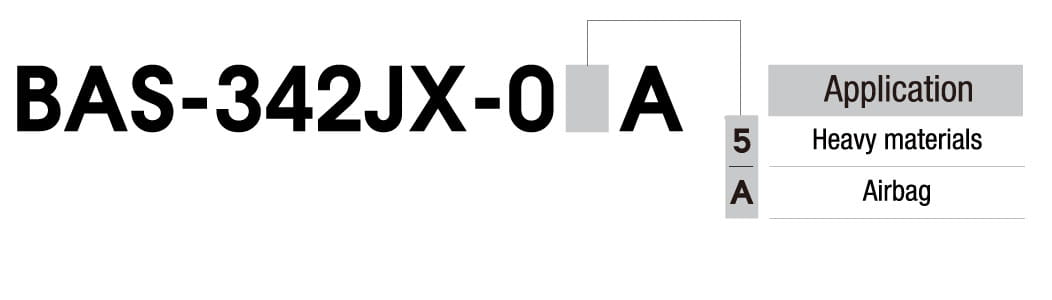

| BAS-342JX | -05A | -0AA |
|---|---|---|
| Stitch form | single needle lock stitch | |
| Max. sewing speed | 2,800sti/min*1 | |
| Max. sewing area | 300 x 200mm | |
| Feed mechanism | Intermittent feed (pulse motor drive) | |
| Stitch length | 0.05-20.0mm (per 0.05mm) | |
| Max. number of stitches | 20,000 stitches (per program) | |
| Max. number of programs | 999 | |
| Work clamp drive | Pneumatic drive | |
| Work clamp lift amount | Max. 30.0mm | |
| Work clamp | Intergrated-type | |
| Height of stepping presser foot | 27.0mm (highest needle stop position) | |
| Stepping presser foot stroke | 0-10mm（per 0.1mm） | |
| Hook | Double-capacity shuttle hook | |
| Thread wiper | Standard equipment | |
| Thread trimmer | Standard equipmen | |
| Digital tension | Standard equipmen | |
| Fabric thickness detection | Standard equipmen | |
| Skipped stitch/Thread breakage detection | Standard equipmen | |
| Bird's nest reduction | Standard equipmen | - |
| Data storage media | Internal flash memory (data addition is available with external memory) | |
| Motor | AC servo motor 550W | |
| Weight | Machine head: Approx. 165kg
Control box: Approx. 18kg |
|
| Power | 1-phase, 3-phase: 200V-240V 450VA | |
| Air pressure/ Consumption | 0.5MPa, 1.8l/min | |
