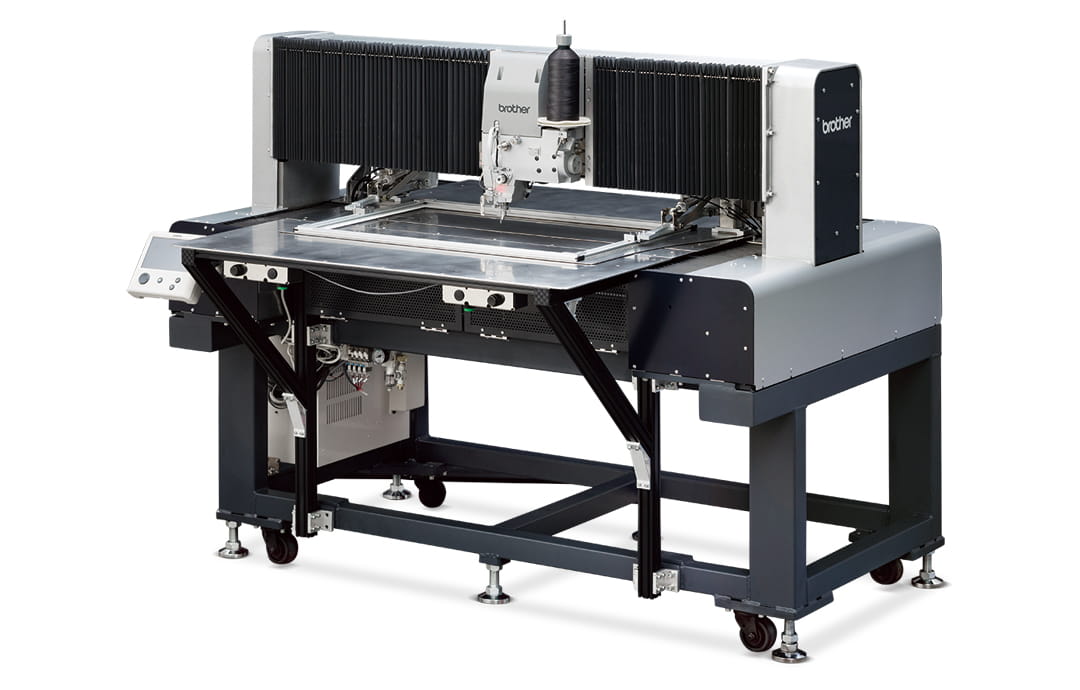

NEXIO BAS-365H-05AV

・Bridge Type Programmable Electronic Pattern Sewer with Vertical Shaft Rotary Hook Specification.
・The perfect stitch area has been expanded.
・Rotary digital tension is equipped as standard to achieve more textured stitches on leather and car seat products.
・The needle hole plunger mechanism reduces thread loss at the beginning of sewing and stabilizes thread tightening.
・Independent thread trimmer by pulse motor allows longer upper and lower thread lengths after thread trimming.

Catalog

BAS-365H	-05AV
Stitch form	Single needle lock stitch
Hook	Vertical shaft rotary hook
Max. sewing speed	2,000sti/min
Max. sewing area(W×D)	700mm×400mm
Machine's footprint	1,699mm×1,296mm
Feed mechanism	Intermittent feed (pulse motor drive)
Stitch length	0.05-20.0mm (per 0.05mm)
Max. number of stitches	100,000 stitches (per program)
Max. number of programs	999
Work clamp lift amount	Max.52.5mm
Work clamp	Pneumatic work clamp
Height of stepping presser foot	24mm (highest needle stop position)
Stepping presser foot stroke	0-10mm (per 0.1mm)
Head lifting function	Standard equipment
Head lift amount	70mm(height from the top of the auxiliary plate Max.95mm)
Needle cooler	Standard equipment
Thread wiper	Standard equipment
Upper thread tension system	Digital rotary tension
Thread breakage detection	Standard equipment (fiber sensor drive)
Skipped stitch detection	Optional (upper thread tension sensing type)*1
Data storage media	Internal flash memory (data addition is available with external memory)
Motor	AC servo motor 550W
Weight	Approx.640kg
Power	Single phase 220V / 230V 3-phase 200V / 220V
Apparent power / Power consumption	1200VA / 590Wh
Air pressure/Consumption	0.5MPa / Needle cooler ON : 8l/min OFF : 0.2l/min
Optional Parts	*1 SEW-DEFECT DETECTION DEVICE L
