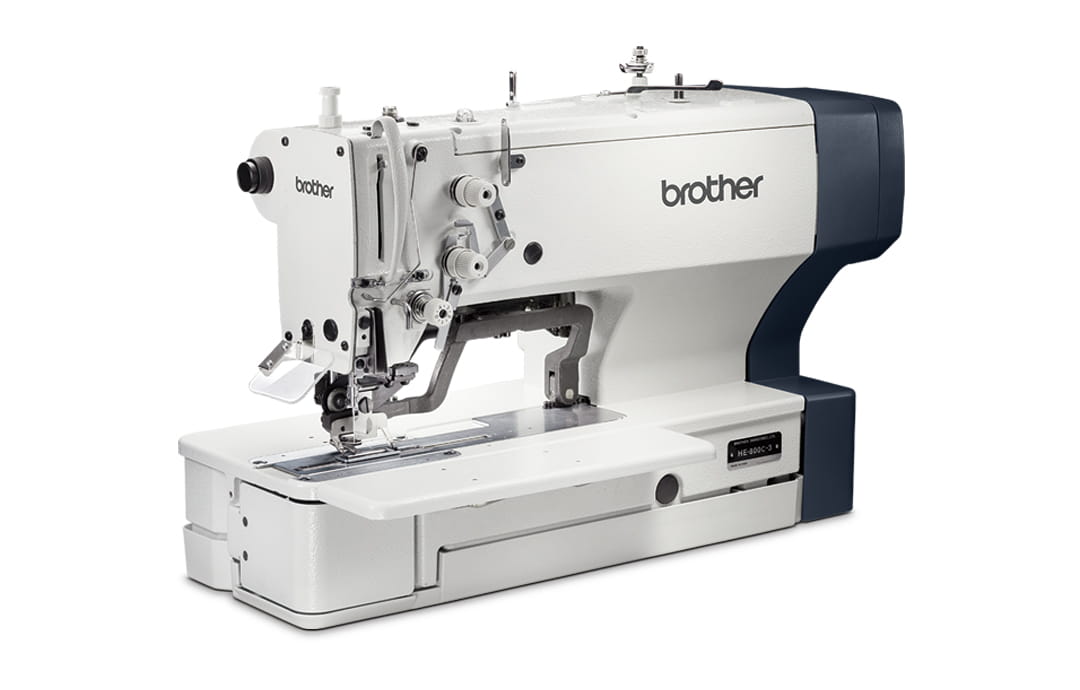

NEXIO HE-800C
NEXIO HE-800C
- ・High productivity due to double cutting function
- ・Reduction of disposition of thread ends
- ・Productivity Improvement by IoT
Catalog, Manual, Parts-book Download
Information
Overview

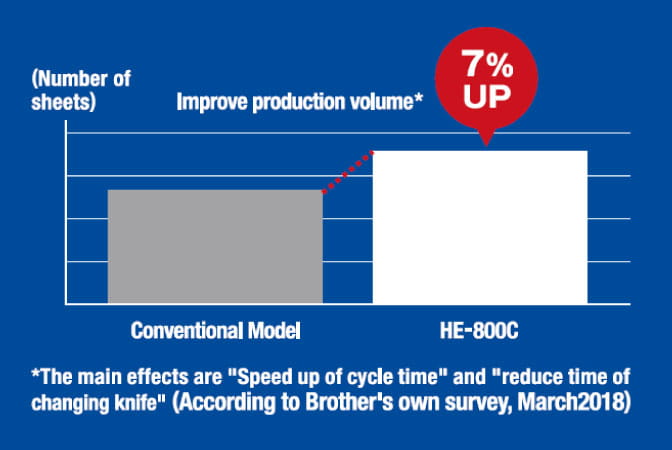

High productivity due to double cutting function
It enables double cutting during various size of button hole sewing and gives you high productivity without any changing time of cutters. High cost performances and productivities can be expected.
Reduction of disposition of thread ends
Renewed thread trimmer cuts the thread, realizing short remaining threads. The disposition of thread ends after sewing can be reduced. Also, the thread nipper, equipped as standard, minimizes thread cast off at sewing start and bird's nest. (-2 spec. only)

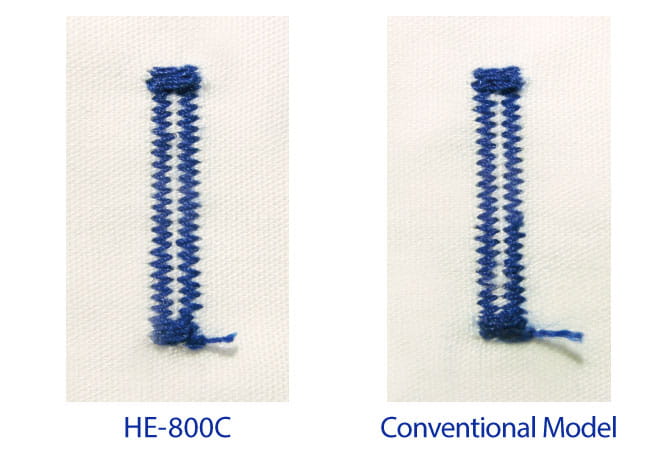

Improve sewing quality by modified parts and program
Beautiful bank sewing finish appears when you use pearl stitch with low thread tension due to modified parts and needle movement program. And, when you use whip stitch it may provide beautiful finish because it reduces any trouble such as thread breakage and stitch tightness errors. Minimum resolution is only 0.05mm. It gives high accuracy of button hole cutting and reduce any uneven finish.

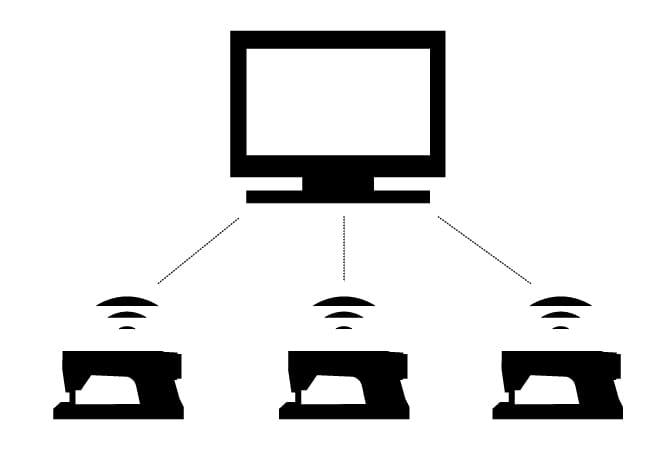

NEXIO series are IoT applicable models.* The visualization by connecting sewing machine and computer with the network technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work. *It is applicable for Brother’s IoT system. For more details, please refer to the catalog of “Brother Industrial Sewing Machine Network System”.
Features
With underlay functionality, it is effective for stretch materials to prevent them from stretching.
Specifications
| Max. sewing speed | 4,000sti/min | ||
|---|---|---|---|
| Zigzag mechanism | Pulse motor | ||
| Feed mechanism | Pulse motor | ||
| Presser foot lifter mechanism | Pulse motor | ||
| Presser foot lifter amount | Max.13mm（adjustable） | ||
| Cutter mechanism | Double position solenoid | ||
| Lower thread holding device | Standard equipment | ||
| Bobbin presser | Standard equipment | ||
| Standard pattern shapes | 21 types | ||
| No. of sewing programs storable | 50 | ||
| Max. No. of stitch/program | 999 stitches | ||

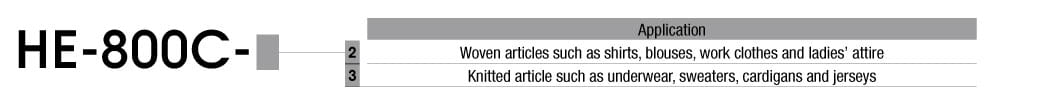

| Needle | -2 | -3 | |
| Schmetz 134 Nm90 | Schmetz 134 Nm75 | ||
| Data storage method | SD card（No guarantees of operation can be given for any media.） | ||
| Power supply | Single-phase : 100V*1・Three-phase : 200V | ||
