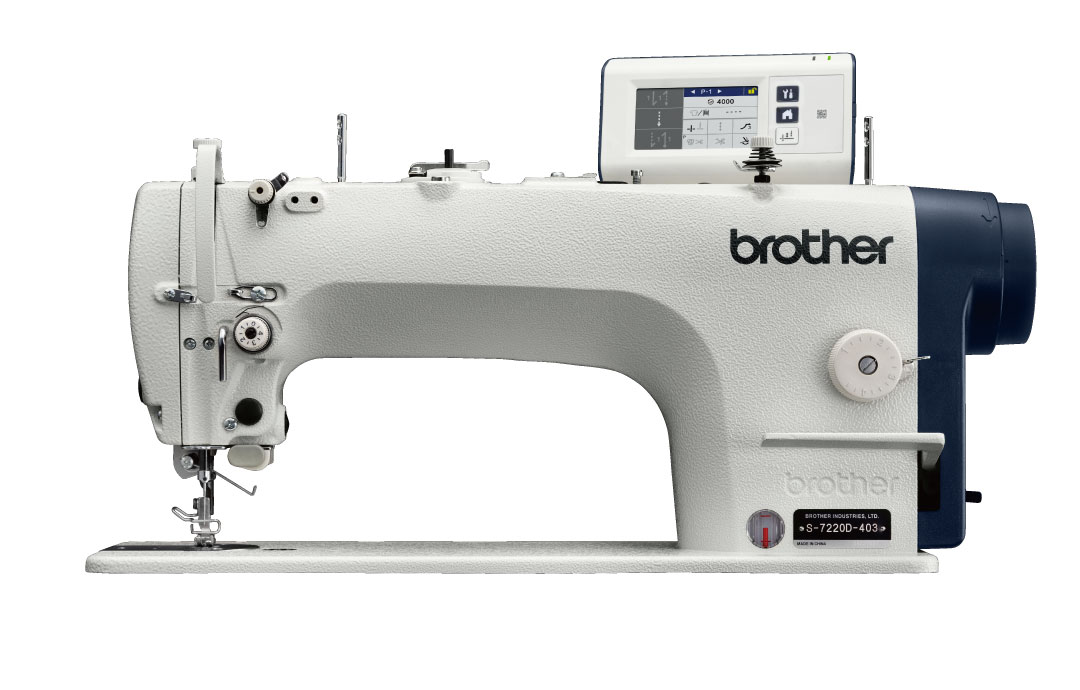

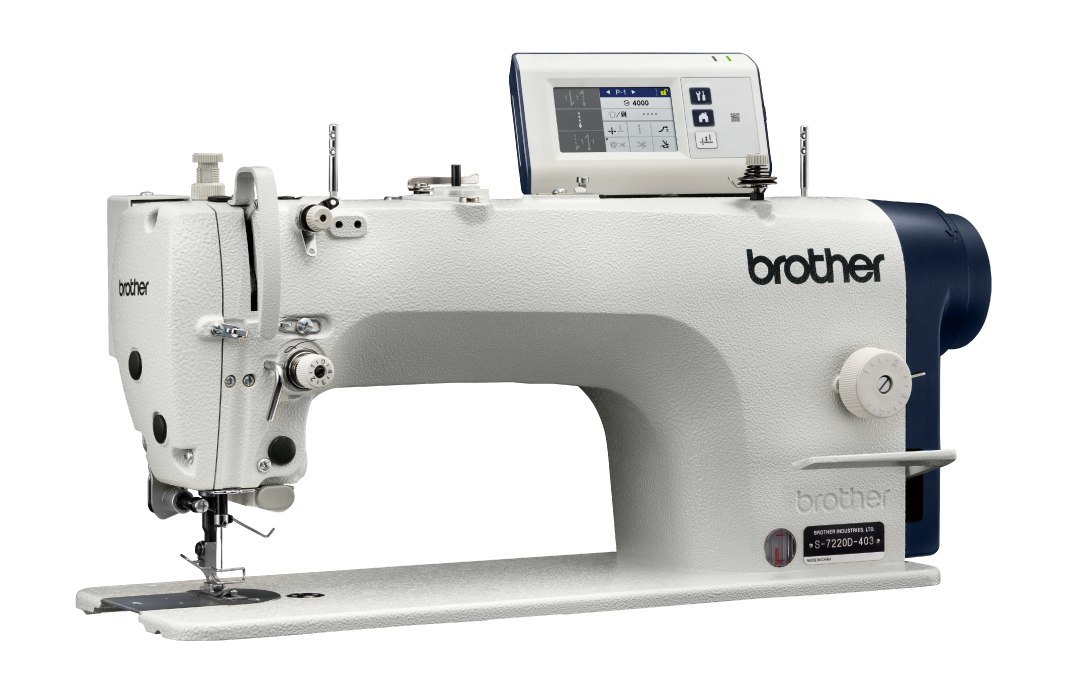

NEXIO S-7220D
NEXIO S-7220D
- Single Needle Direct Drive Needle Feed Lock Stitcher with Thread Trimmer
- ・User-intuitive Color LCD Display Touch Panel
- ・Productivity improvement with loT capabilities

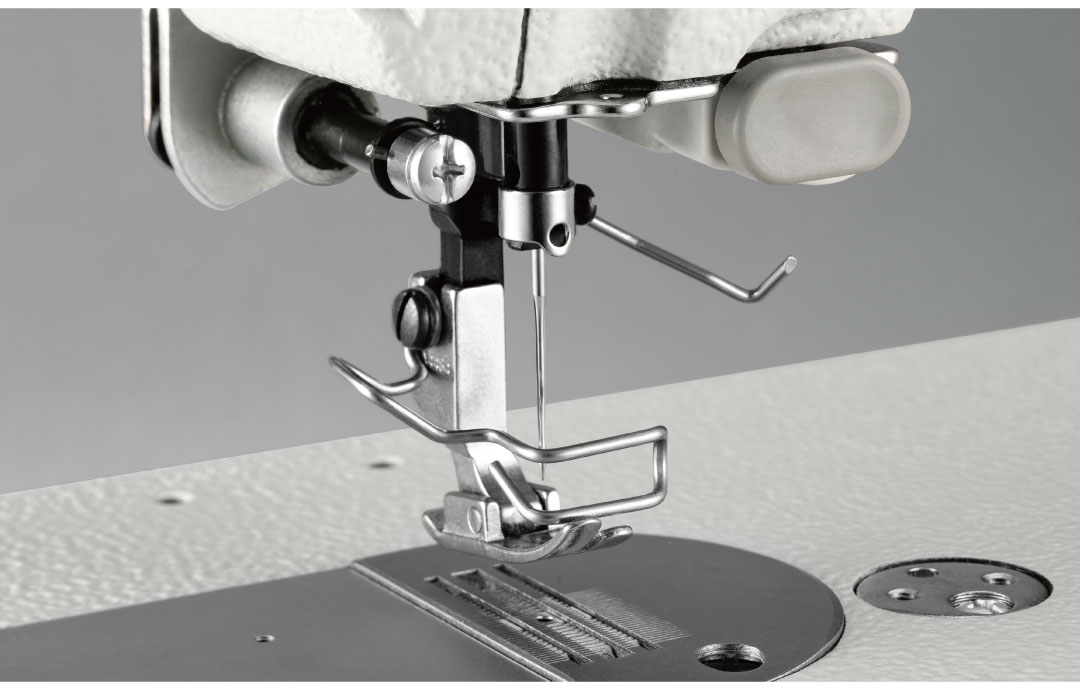

- ・The needle feed mechanism further inures even material feeding while sewing
- ・The needle feed lock stitcher is suitable for the sewing of slippery materials or sewing of multiple layers of material.
- ・It helps to prevent uneven material feeding to further meet the highest quality sewing standard while requiring less skill.
Catalog, Manual, Parts-book Download
Information
Overview

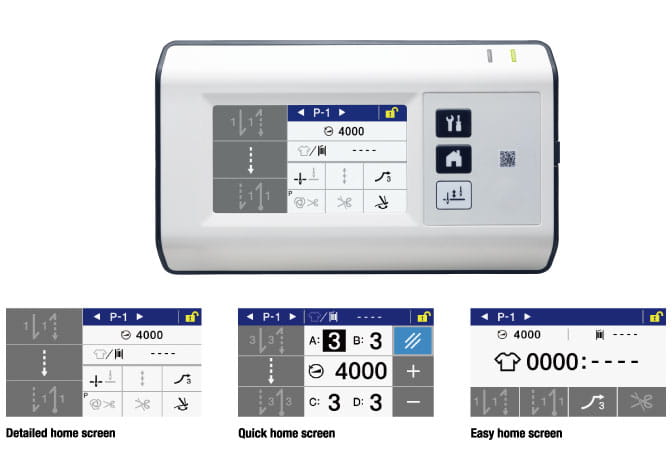

User-intuitive Color LCD Display Touch Panel
The Color LCD display touch panel display items with illustration icons, offering easy user-intuitive operation.

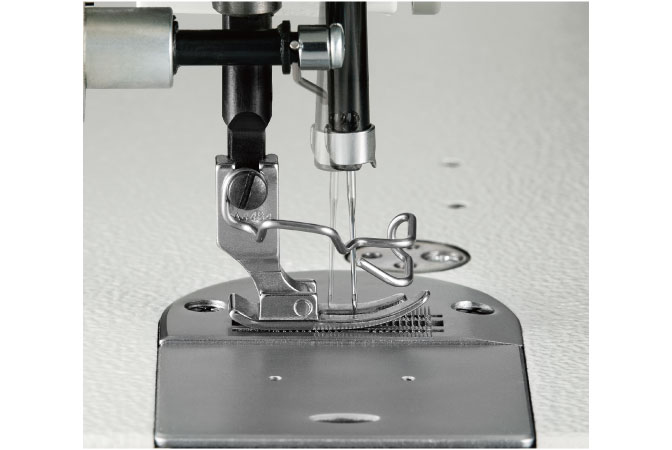

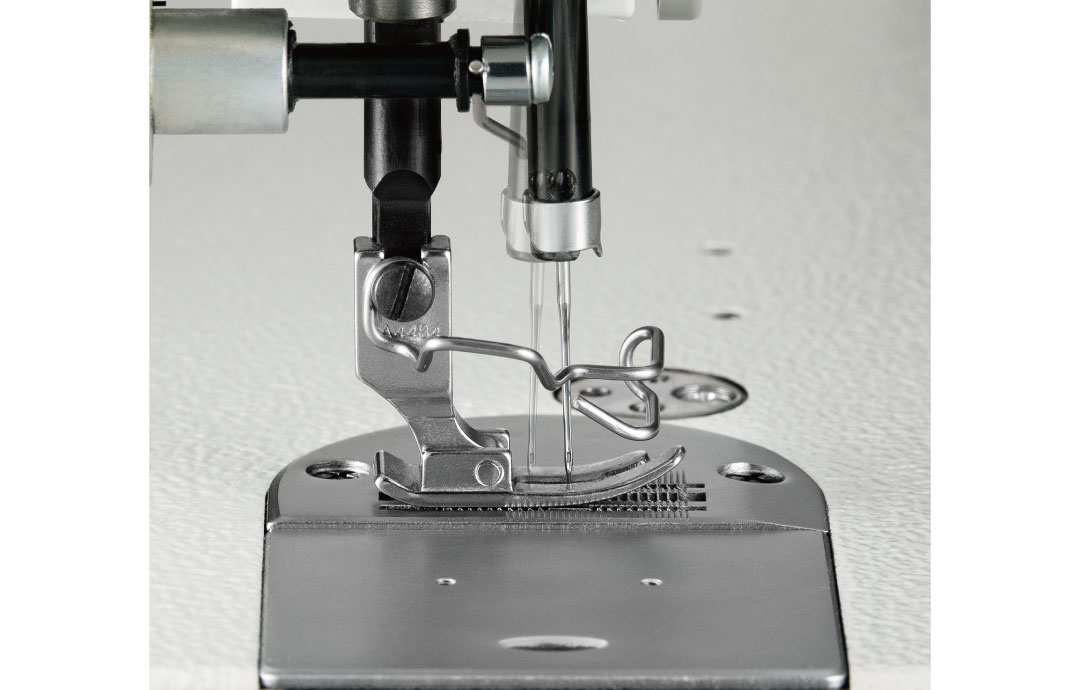

Prevents uneven material feeding.

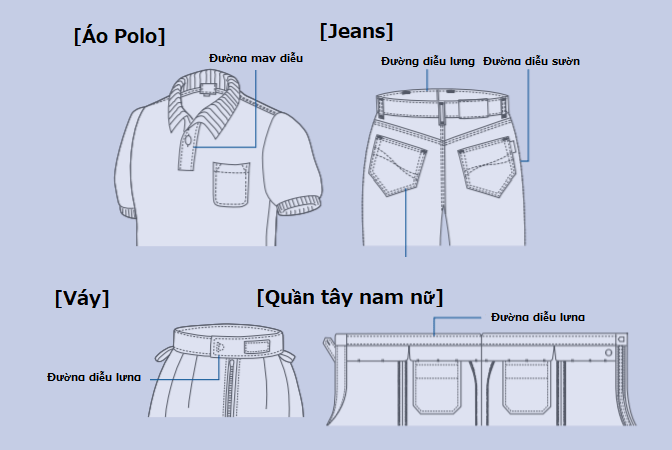

This sewing machine is suitable for sewing of materials that require quality processing such as placket stitching of polo shirts.

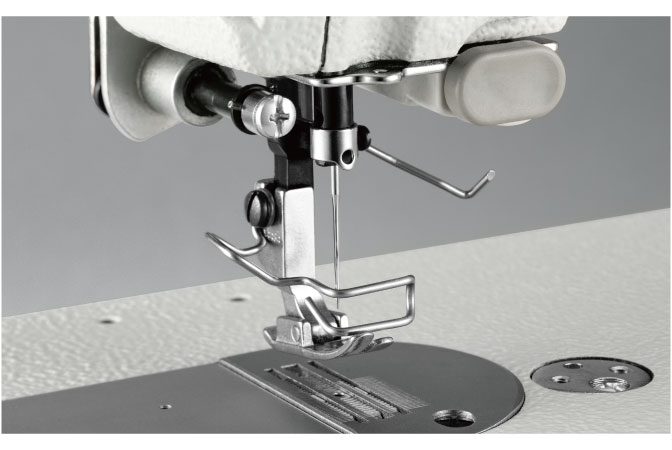

Needle Breakage Prevention Function
When reverse stitching is carried out using the quick back switch on standard straight lock stitcher machines, needle breakage may occur. With thorough analysis of its cause, the function of preventing the needle breakage has been introduced.

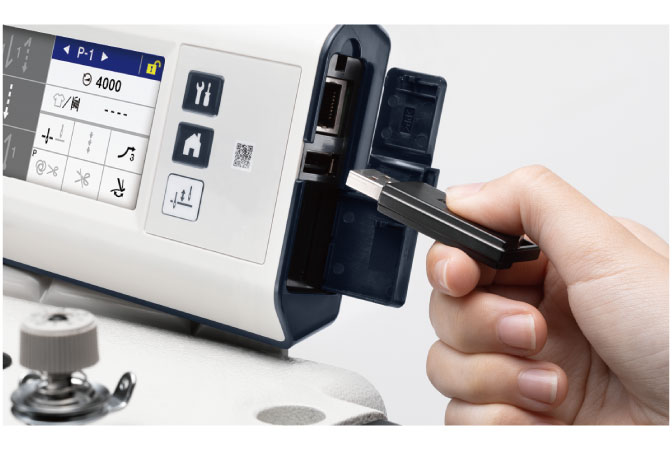

Built in display panel USB port.
The Display panel is equipped with a USB port so sewing patterns and various environmental settings can be copied and shared easily with other sewing machines of the same function. This also permits software upgrades to be performed using the USB media.
Features
Productivity improvement with loT capabilities
This model is loT applicable. The visualization by connecting sewing machine and computer technology together enables the customer to analyze.
*It is applicable for Brother’s IoT system. For more information, please refer to the catalog of “Brother Industrial Sewing Machine Network System”.
When the needle penetration resistance is increased in cross over seams and extra-thick overlapping of workpiece sewing, the needle penetration force is automatically increased by vibration control.
We adopted the control circuit board design which has been proven effective in other models and strengthened the ability to cope with the voltage fluctuations. In addition, vibration resistance is improved,and you can use it safely in various environments.
Specifications

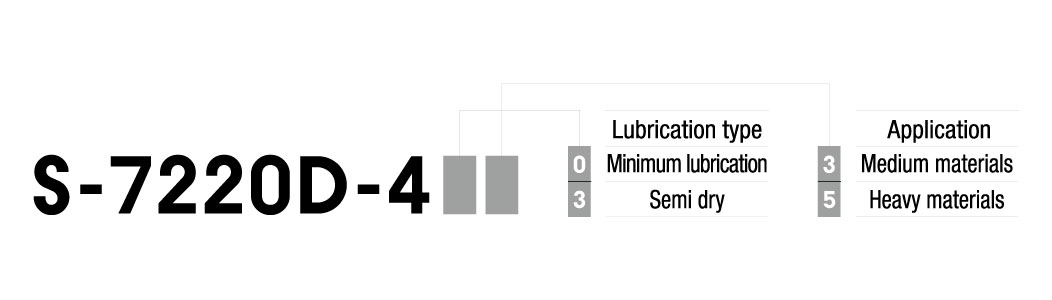

| S-7220D- | 403 | 433 | 405 |
|---|---|---|---|
| Lubrication type | Minimum lubrication | Semi dry | Minimum lubrication |
| Application | Medium materials | Heavy materials | |
| Max. sewing speed | 5,000sti / min*1 | 4,000sti / min | 4,000sti / min*2 |
| Start back tacking and continuous back tacking speed | 220-3,000sti / min | ||
| End back tacking speed | 1,800sti / min | ||
| Max. stitch length | 4.5mm | 5.5mm | |
| Presser foot height | Presser bar lifter:6mm, Knee lifter:16mm | ||
| Needle bar stroke | 33mm | 35mm | |
| Needle(DB×1・DP×5) | #11～#18 | #19～#22 | |
| Feed dog height | 1.0mm | 1.2mm | |
| Arm pocket size | Width：300mm, Height：120mm | ||
| Bed size | 517.5mm×178mm | ||
| Machine head drive | Direct drive mechanism | ||
| Motor | AC servo motor (450W) | ||
| Weig Machine head | 46kg | ||
| Weig Control box | 7.7kg | ||
| Power | Single phase, 3-phase: 200V-230V Max. electric power consumption 500VA |
||
- *1 When sewing at speeds of 4,000sti/min or higher, set the stitch length to 3.5mm or less.
- *2 When sewing at speeds of 3,000sti/min or higher, set the stitch length to 4.5mm or less.
