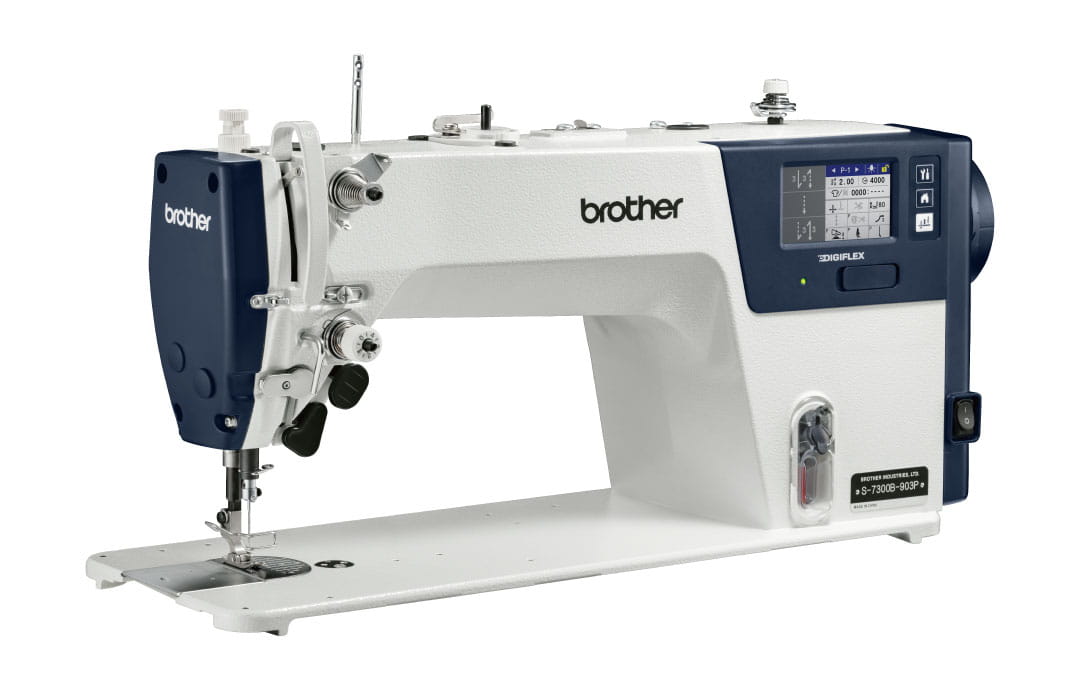

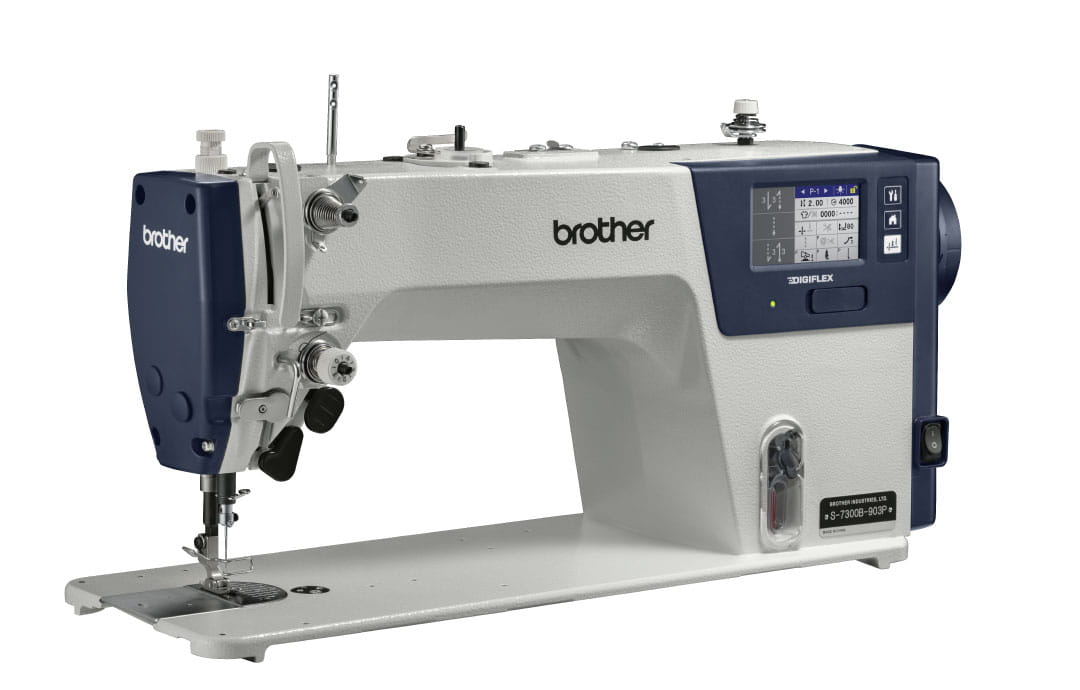

NEXIO S-7300B
NEXIO S-7300B
- Single Needle Direct Drive Lock Stitcher with Electronic Feeding System and Thread Trimmer

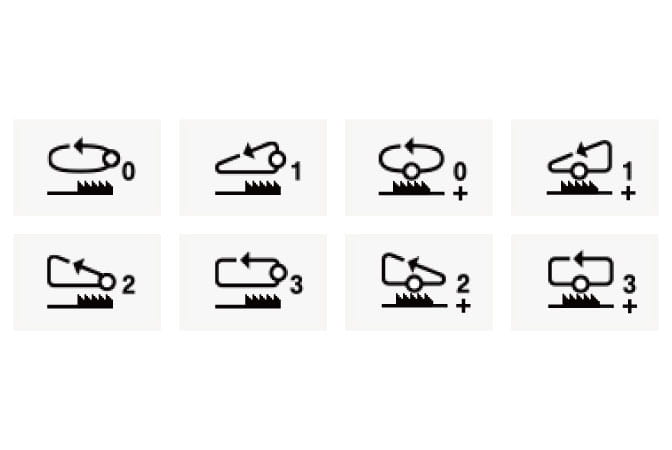

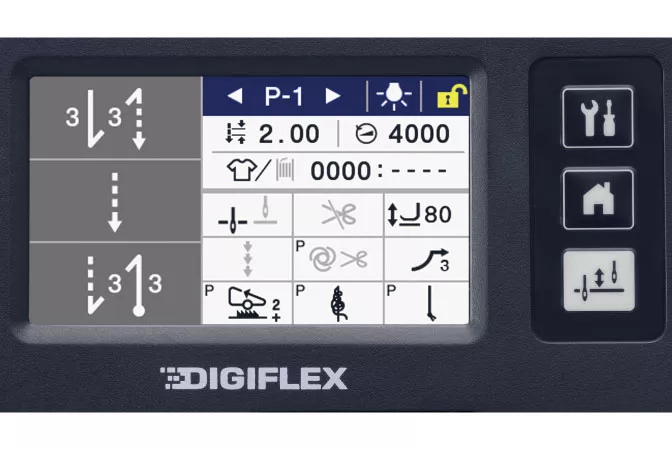

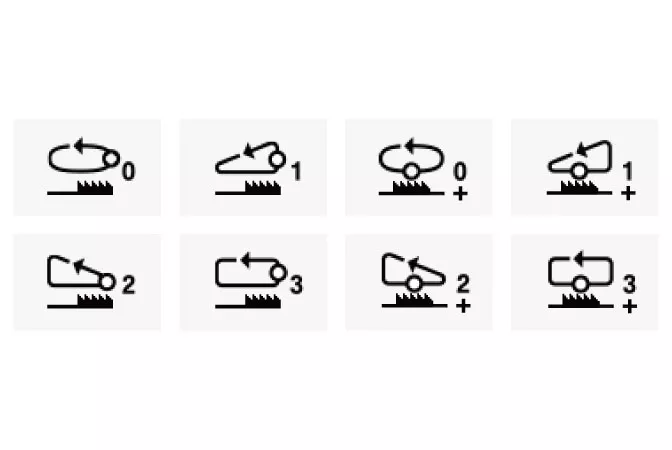

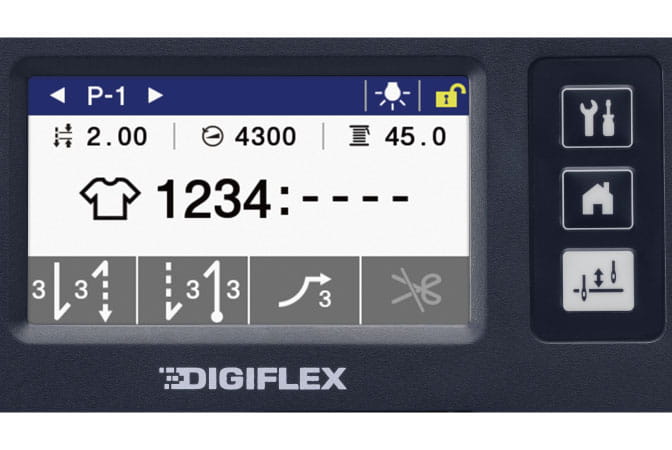

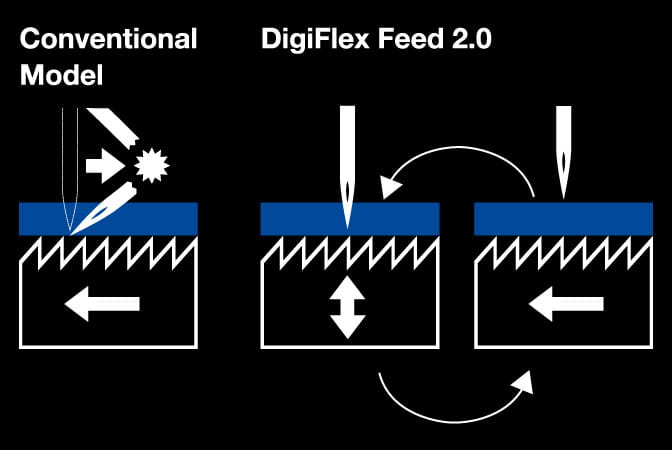

- ・Upgraded Brother's world-only electronic feed technology [DIGIFLEX FEED] Less Stressful for the operator and easy to use, achieves high sewing quality.

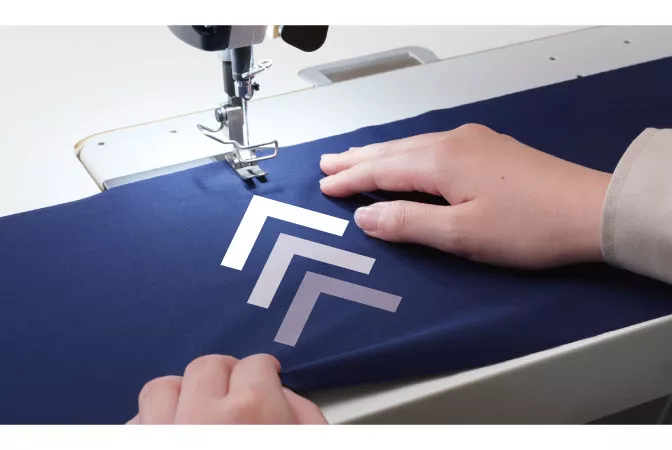

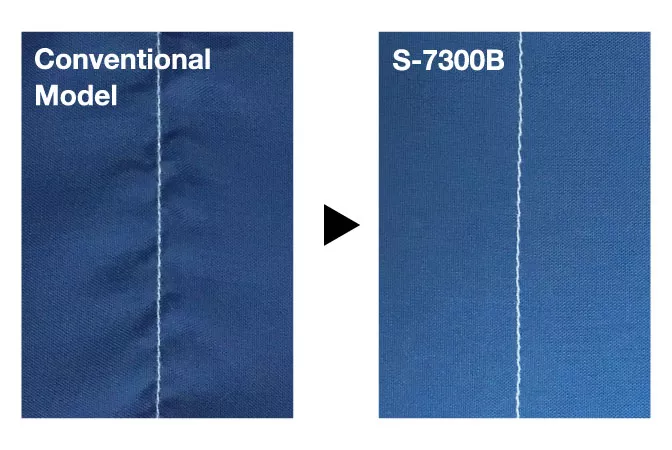

- ・Smooth fabric feeding,Stitch Quality Improvement,Reduce Needle Breakage.
- ・Less Sound/Low Vibration.
- ・Clean Sewing, Prevents fabric stains (Semi Dry Spec).
- ・Energy Saving.
Catalog, Manual, Parts-book Download
Information
Overview
Features

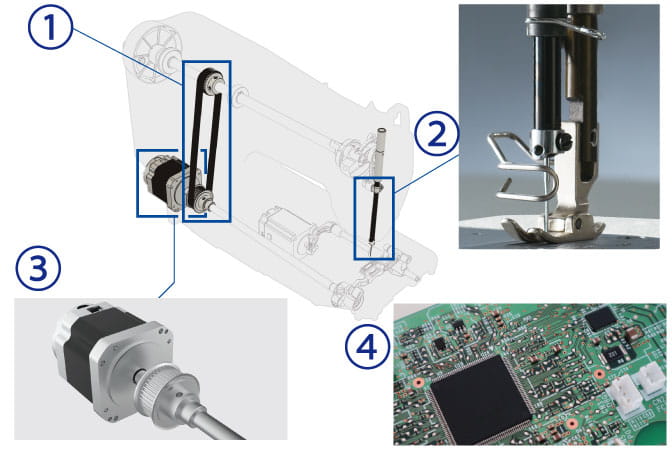

①Less Sound/Low Vibration
By optimizing the mechanism using our unique analysis technology and adopting a belt drive system,achieved low noise and low vibration.
This reduces stress on the operator and allows for comfortable sewing work.
②Clean Sewing, Prevents fabric stains (Semi Dry Spec)
Brother's unique dry technology has made this the first maintenance-free machine in the industry.
The needle bar uses [Hybrid DLC], which is more powerful than regular DLC, and the [Special Grease] has made it even more durable.
③Energy Saving
Motors and electrical components are designed by Brother, suitable for sewing machines.
This achieves [low power consumption] and support the needs for environmental friendliness.
④Reliable Electrical Equipment
Brother utilizes its advanced technical capabilities as a "conglomerate company" to provide highly reliable electrical equipment for not only sewing machines but also printers and machine tools and others.
This improves the durability and stability of the products.
The high reliability that Brother's technical capabilities bring has been highly praised by many customers.

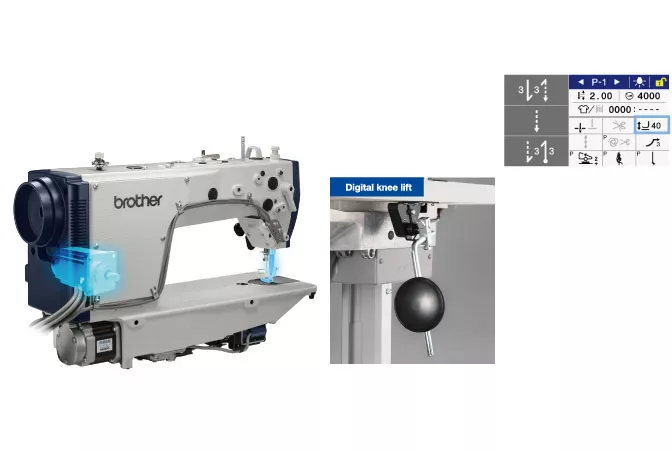

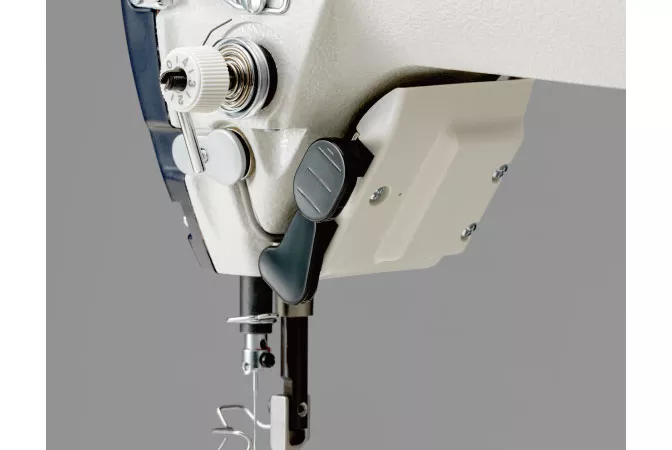

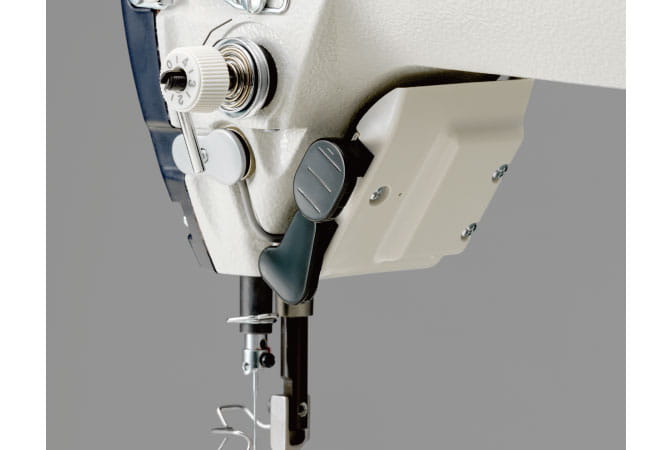

Digital presser foot lifting (-9xx Spec)
A stepping motor has been adopted for the presser foot lifting mechanism, making it quieter. This reduces stress for the worker and creates a more comfortable working environment. In addition, a digital knee lifting function has been installed, making the knee lifting motion lighter. This significantly reduces the burden on the worker, making them less tired even after long hours of work, helping to improve productivity.

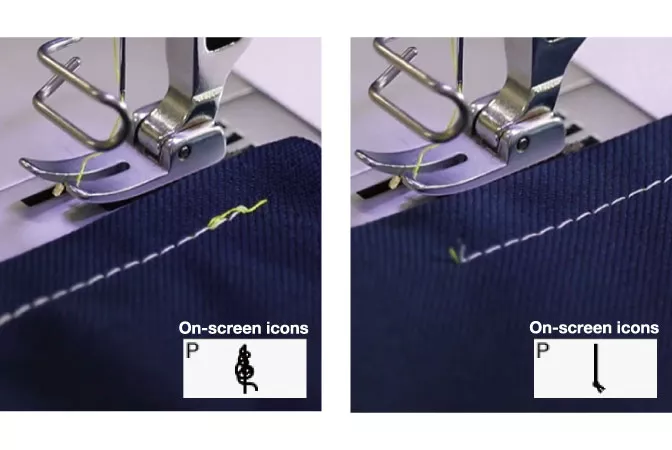

Bird’s nest reduction & Short trimming
The S-7300B also features the short thread remaining function that was well received on the S-7300A. Also features an improved bird’s nest reduction function that makes it easier to use. These thread technologies reduce the amount of thread treatment work after sewing, improving productivity and reducing the burden on workers.
Thickness sensor set SD0637001
Automatic material thickness sensor detects the thickness while sewing, helping to reduce clogging at cross-over seam and needle breakage, S-7300B enables to correct stitch length automatically, when sensor has been detected cross-over seam, offering stable stitch length and high quality sewing for even unskilled-operator. (Patent applied)
Specifications

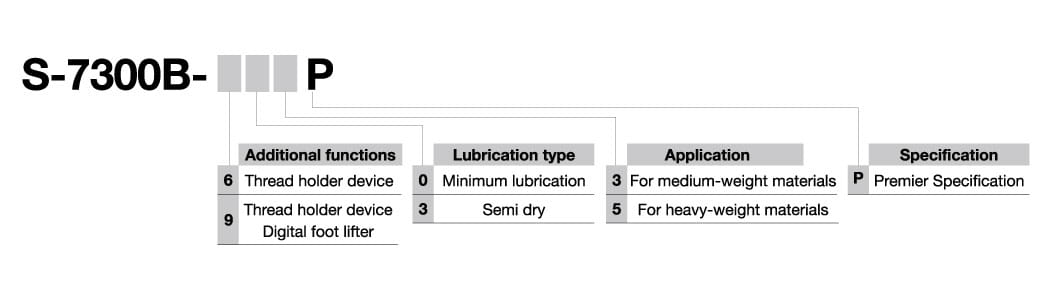

| S-7300B | -933P | -903P | -905P | -603P | -605P |
|---|---|---|---|---|---|
| Lubrication type | Semi dry | Minimum Lubrication | |||

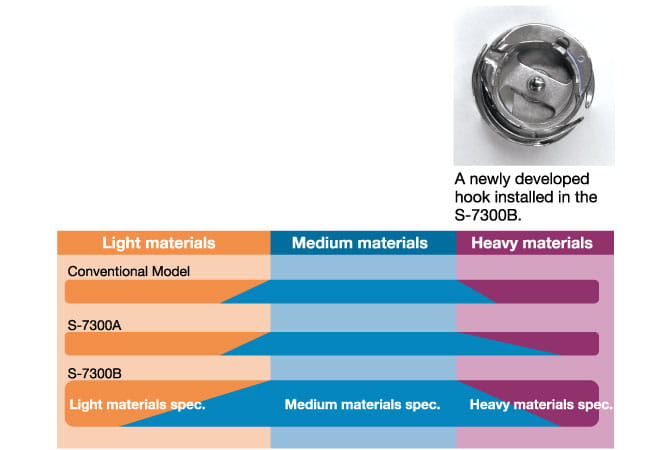

| Application | For medium-weight materials | For heavy-weight materials | |||
| Max. sewing speed | 5,000sti / min*1 | 4,500sti / min | |||
| Max. stitch length | 5mm | Max7mm (5mm standard) |
|||
| Feeding system | DIGI FLEX FEED (Direct Feed Dog Drive System) |
||||
| Pressure foot lifting | -9xxSpec:Digital Foot Lifter -6xxSpec:Analog Foot Lifter |
||||
| Presser foot height | 13mm | ||||
| Trimming mechanism | Double action trimming mechanism | ||||
| Needle (DBx1,DPx5) |
#11-#18 (Nm75-110) |
#19-#22 (Nm120-140) |
|||
| Needle bar stroke | 31mm | 35mm | |||
| Height of feed dog | 0.8mm | 1.2mm | |||

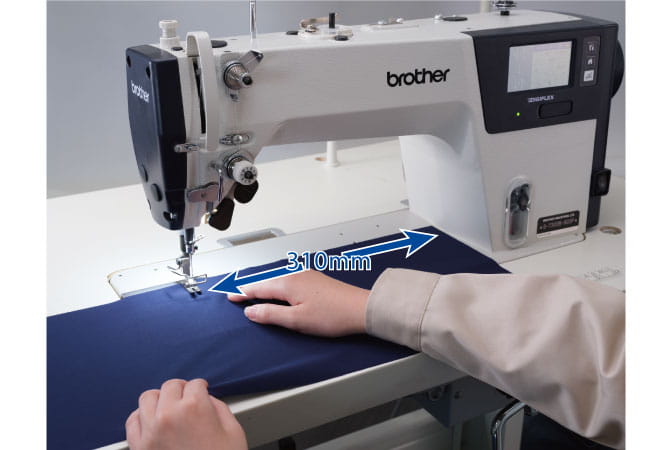

| Operation space | 310mm(needle to machine arm) | ||||
| Weight | -9xxSpec:39.5kg -6xxSpec:38.0kg |
||||
| Motor | AC servo motor | ||||
| Power | Single-phase:200-240V, 100-110V(*1) 420VA *1:The transformer is required. |
||||
