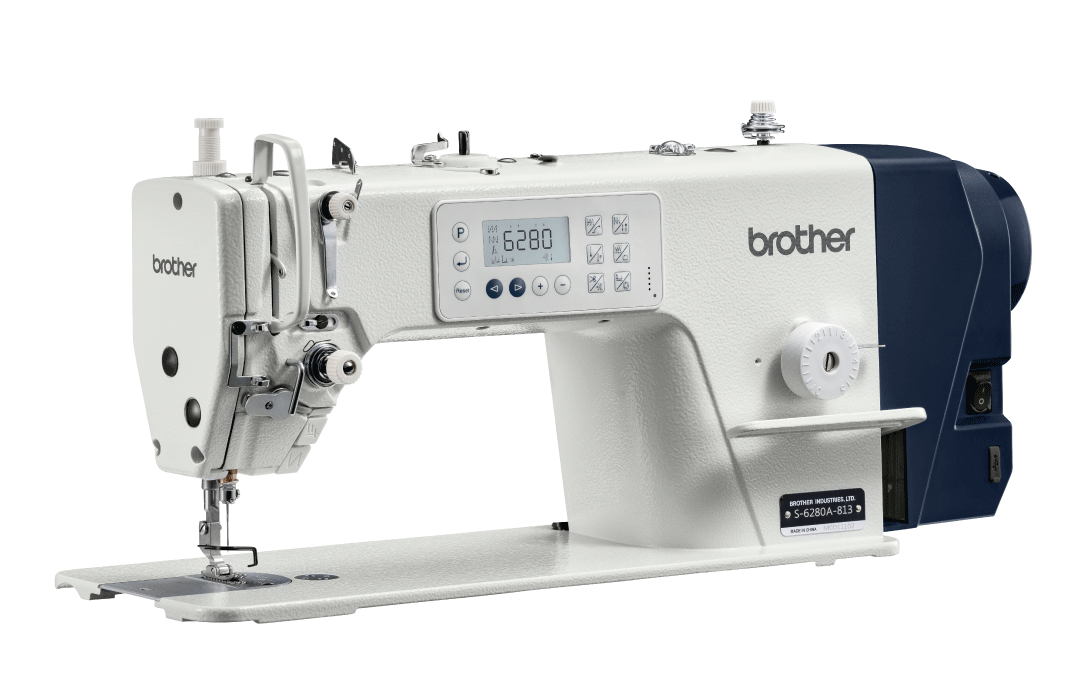

S-6280A
S-6280A
- Single Needle Direct Drive Straight Lock Stitcher with Thread Trimmer
- ・Comfortable and High-speed Sewing
- ・LED Light Equipped as Standard
- ・User-friendly Operation Panel
- ・Electric Presser Foot Lifter
- ・High Operability with 2 Hand Switches
Catalog Download
Information
Overview

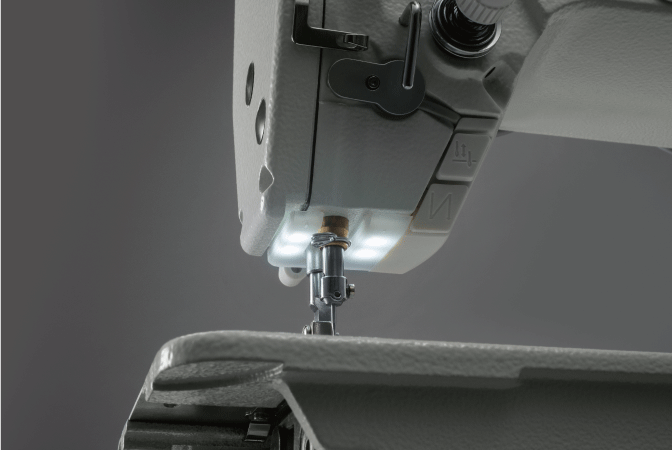

LED Light Equipped as Standard
Handy LED light are equipped at the both side of the needle as a standard for better operation, and it prevents shadows on the garment.

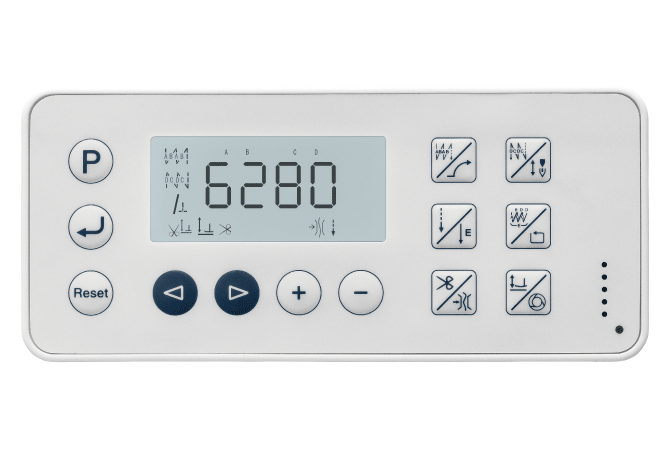

User-friendly Operation Panel
Easy-to-understand key layout and display.
Electric Presser Foot Lifter
It increases productivity and it reduces the sound compared with mechanical pressure.

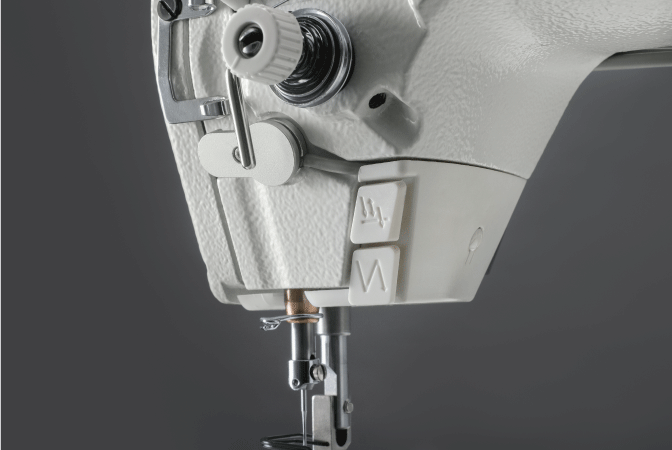

High Operability with 2 Hand Switches
You can assign the function to each switch with various combinations, and it enables your operator to use the machine efficiently.
Features
It increases productivity and it reduces the sound compared with mechanical pressure.

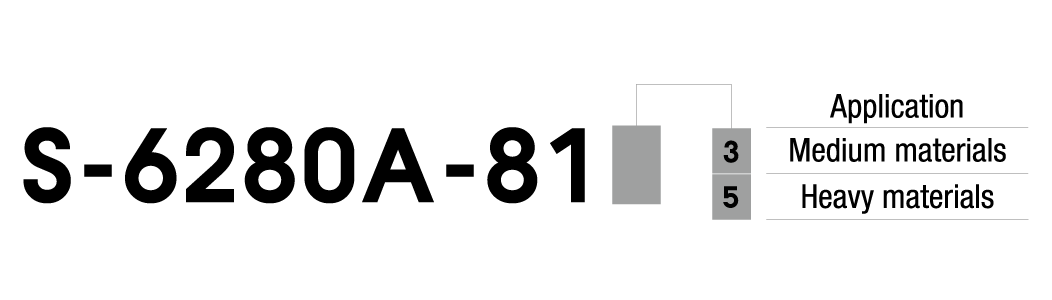

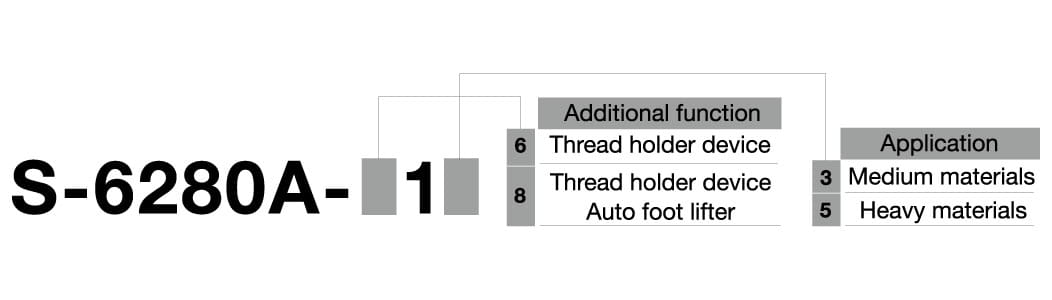

Specifications
| S-6280A | -613 | -813 | -615 | -815 |
|---|---|---|---|---|
| Max. sewing speed | 5,000sti/min | 4,000sti/min | ||
| Max. stitch length | 5mm | |||
| Thread trimmer type | Single action thread trimming mechanism (Ordinary type) | |||
| Thread presser | Standard equipment | |||
| Hand Switch | Standard equipment | |||
| LED light | Standard equipment | |||
| Auto foot lifter | ー | Standard equipment | ー | Standard equipment |
| Height of presser foot lifter | Knee lifter: 10-15mm Auto foot lifter: 12mm |
|||
| Needle(DB×1・DP×5) | #11-#18 | #19-#22 | ||
| Height of feed dog | 0.9mm | 1.2mm | ||
| Motor | AC servo motor | |||
| Weight | 36kg | |||
| Power | Single-phase: 200-240V Max. electric power consumption: 400VA |
|||
