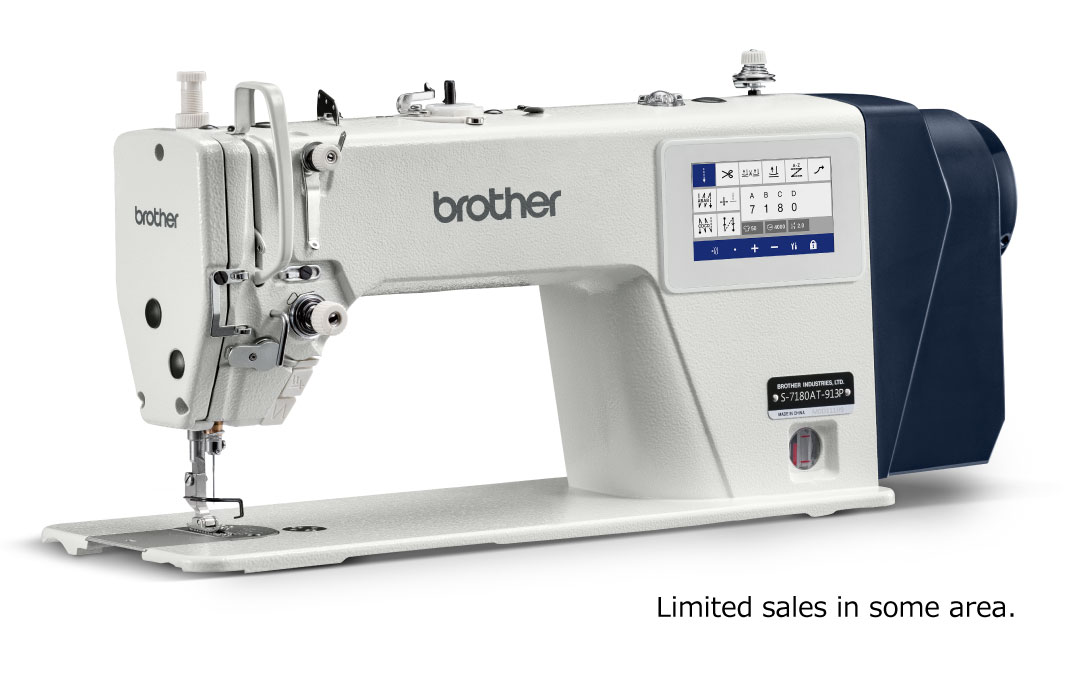

S-7180AT
S-7180AT
- ・New Electric Feed System
- ・Short remaining thread (3.5mm)
- ・Auto Foot Lifter
- ・Sealed oil tank equipped
Catalog Download
Information
Overview

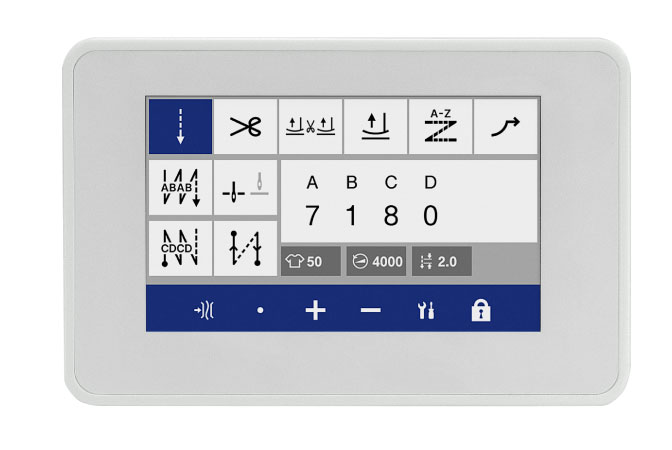

New Electric Feed System
Equipped with pulse motor. lt is possible to set the stitch length as a numerical value with this panel which has easy-to-understand key layout.

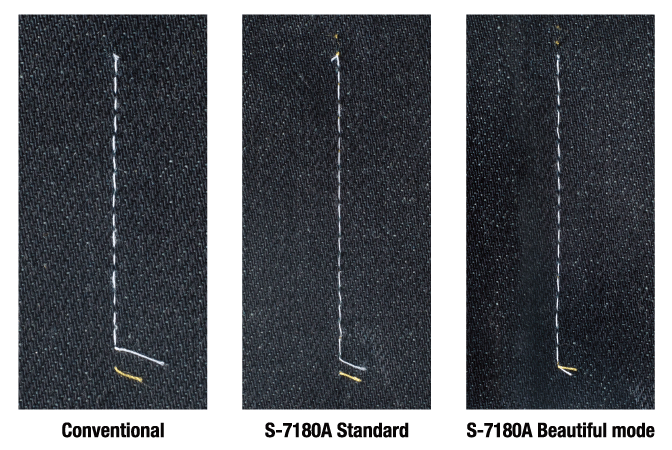

Short Remaining Thread, (3.5mm) doesn't Require After-cutting Process
The double action thread trimming mechanism cuts the thread right under the needle hole, realizing the short remaining thread at minimum of 3.5mm. In addition, using the beautiful mode to enhances the beautiful sewing end.

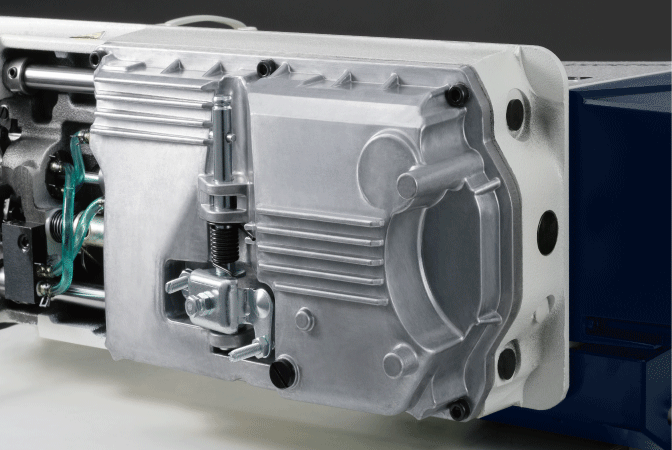

Sealed Oil Tank Equipped
The sealed tank is equipped same as S-7180AT.
Electric Presser Foot Lifter
It increases productivity and it reduces the sound compared with mechanical pressure.
Features
Productivity improvement and quietness are realized by this
Specifications

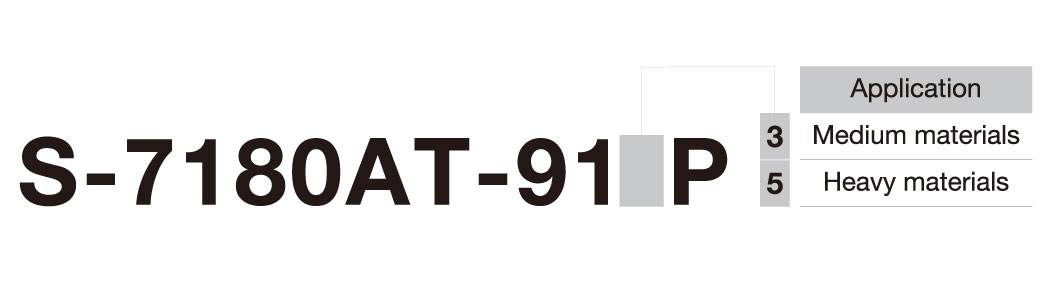

| S-7180AT | -913P | -915P |
|---|---|---|
| Max. sewing speed | 5,000sti/min | 4,000sti/min |
| Max. back tacking speed | 3,200sti/min | |
| Max. stitch length | 5mm | 5mm(*1) *1: If you need 7mm specification, please contact our sales representative. |
| Thread trimmer type | Double action thread trimming mechanism | |
| Thread presser | Standard equipment | |
| Hand Switch | Standard equipment | |

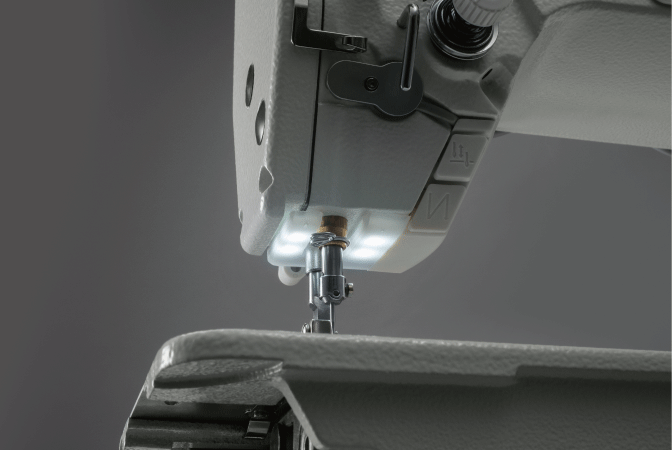

| LED light | Standard equipment | |
| Electric presser foot lifter | Standard equipment | |
| Height of presser foot lifter | Knee lifter: 10-15mm Automatic presser bar lifter: 12mm |
|
| Needle(DB×1・DP×5) | #11-#18 | #19-#22 |
| Height of feed dog | 0.9mm | 1.2mm |
| Motor | AC servo motor | |
| Weight | 37kg | |
| Power | Single-phase: 200-240V Max. electric power consumption: 400VA |
|
