More freedom
in design
A bonding machine that operates
like a sewing machine
Brand-new ideas and new designs can be created with the BM-2000.
Advantages of BM-2000

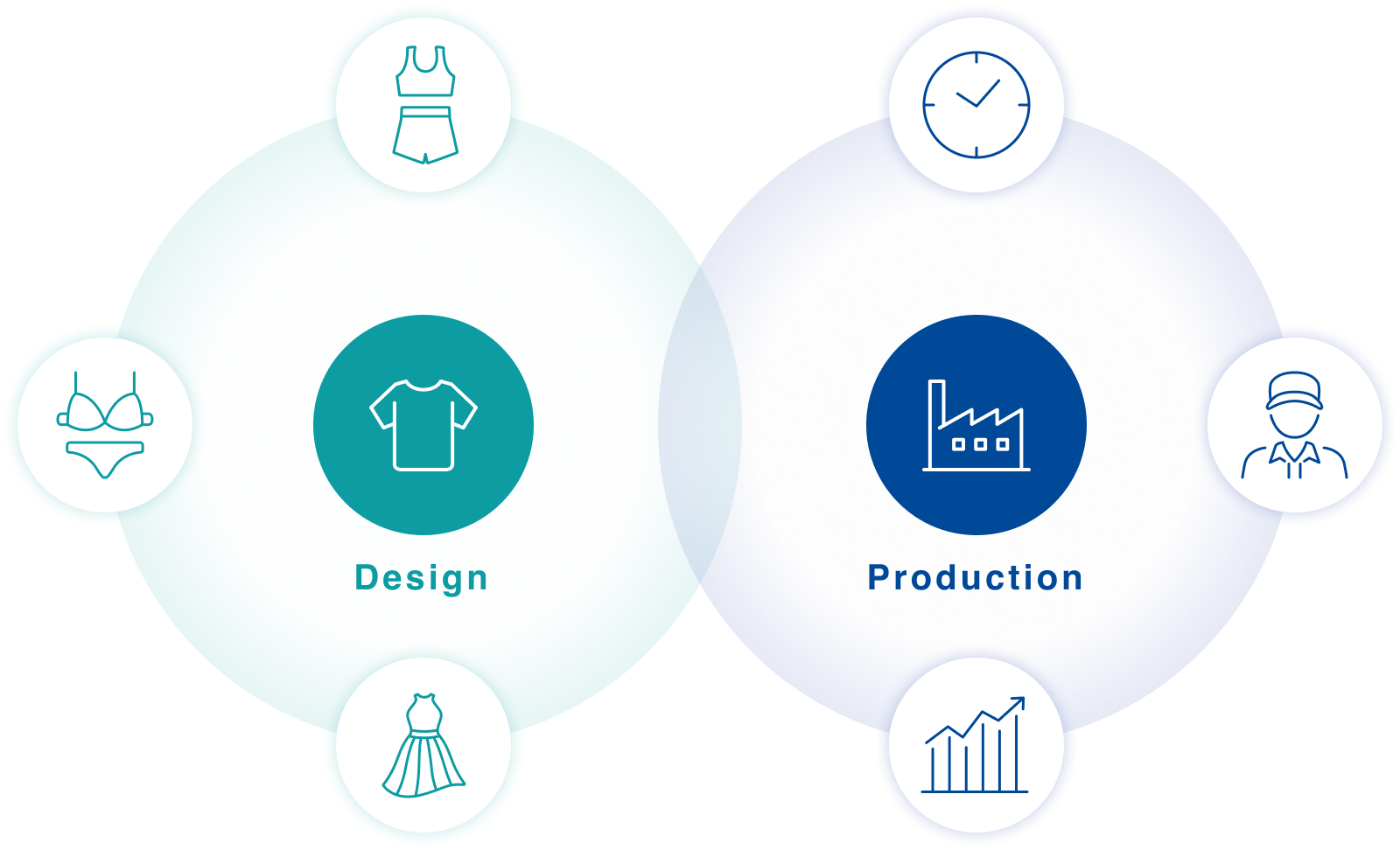

With Brother’s BM‑2000, you can achieve both high design quality and productivity,
which is difficult with conventional bonding machines.
Are you having trouble with something like this?
Apparel product
planner or designer
Garment factory manager
BM-2000 can solve that problem!
Planning and Design department
Three-dimensional bonding
Three-dimensional and tubular designs can be processed with this machine.
The BM-2000 can handle both tube and flat operation. It can also handle long sleeves, expanding the range of items that can be produced.
*Minimum circumference 160mm
Various Designs without sewing can be done
It does not require high-temperature pressing, allows the use of a wider range of materials, and greatly expands design possibilities.

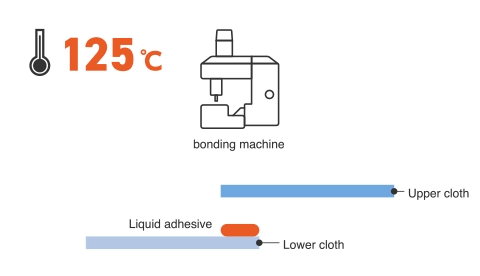

Delicate fabrics are also "low-temperature bonding"*125°C

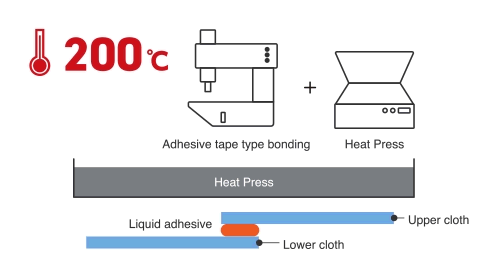

Adhesive tape type
Since the dough is heated from above, it is necessary to press at a high temperature, resulting in heat mark.
BM-2000
It applies heated adhesive directly from the nozzle to the fabric, freeing you from cumbersome temperature control.

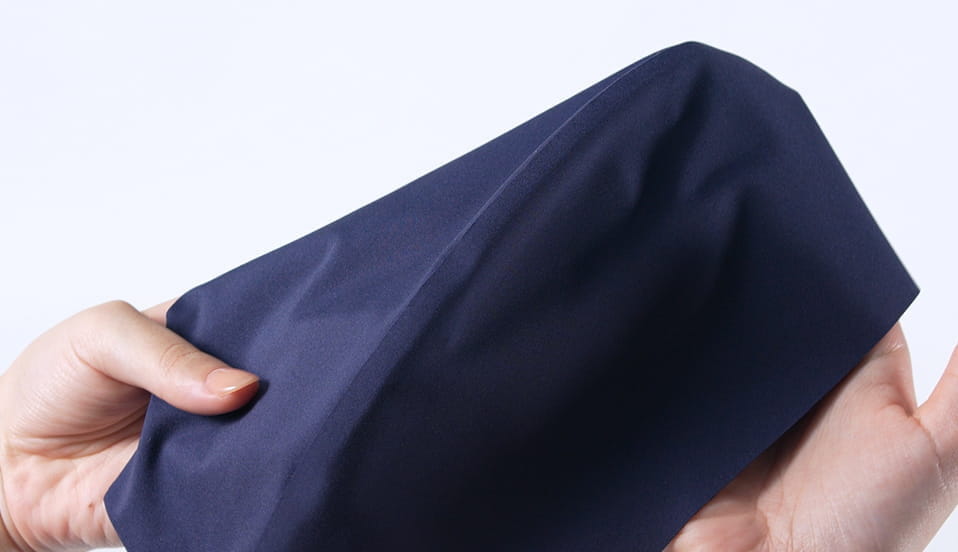

Greater Fabric choices are now possible
Since the pressing process is not required, customers can choose fabrics without worrying about heat mark or shine, expanding the range of customer designs.
Combines soft wear with strength and durability

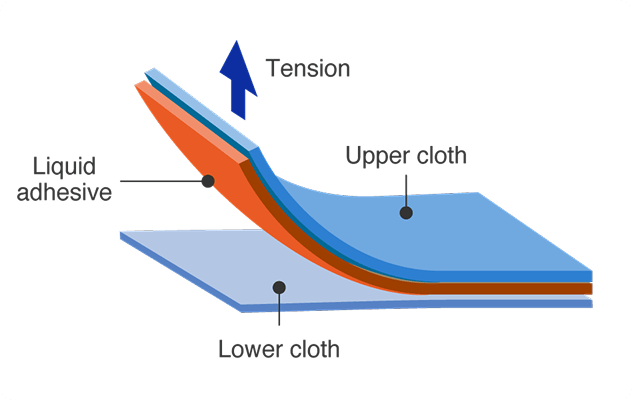

POINT01Peel strength increased to 1.6 times that of conventional
With its high bond strength and stable bonding without evenness, it can be used in a variety of designs.

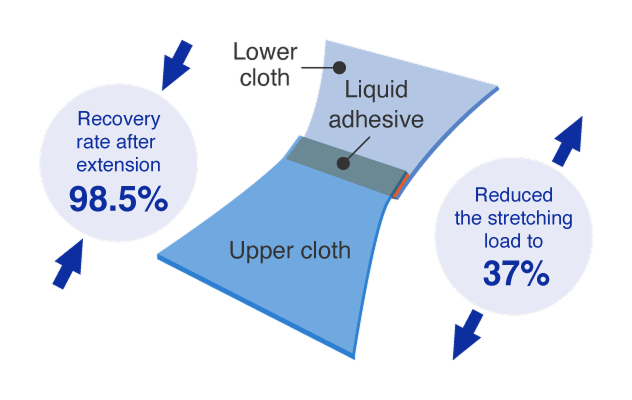

POINT02Supple and gentle to the touch
The machine and unique adhesive ensure a high fit and stress-free wear.

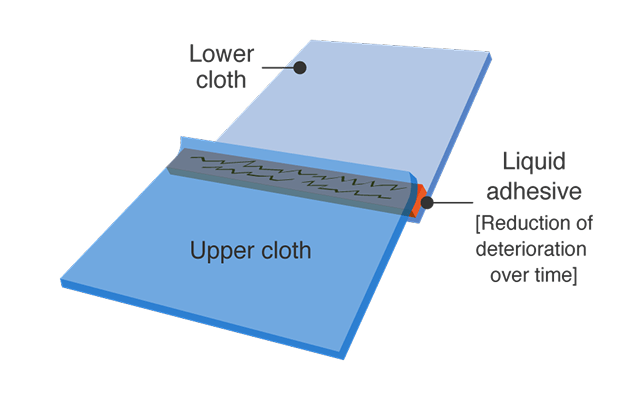

POINT03Reduction of deterioration over time
Brother's adhesive reduces deterioration over time, so you can wear it for the first time in a long time.
Gluing completed in 1 step

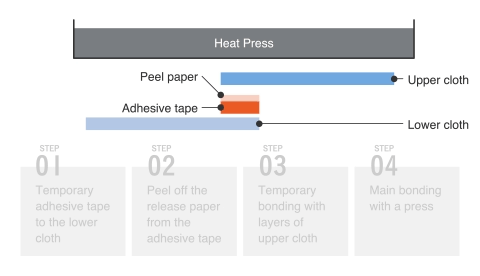

Adhesive tape
There were four processes of bonding, which took labor and time.
BM-2000

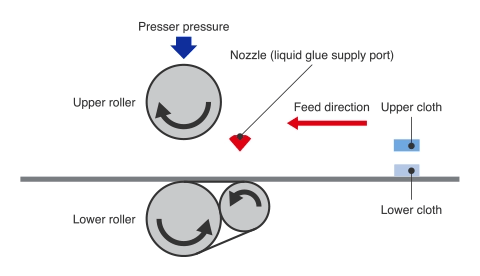

Liquid adhesive application and bonding can be completed in one process.
Reduced 4 steps to 1
We have developed a bonding machine that enables smooth bonding, just like a sewing machine.
Easy for anyone to operate
Anyone can easily achieve clean and beautiful bonding results.

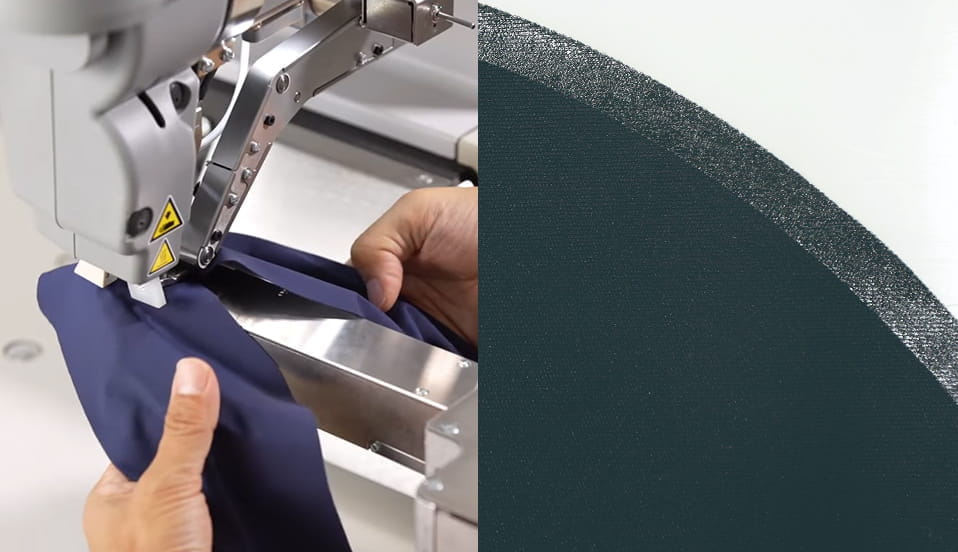

Sensor positioning supports the operator,
Even with smooth curves, the adhesive does not protrude, resulting in a beautiful finish.

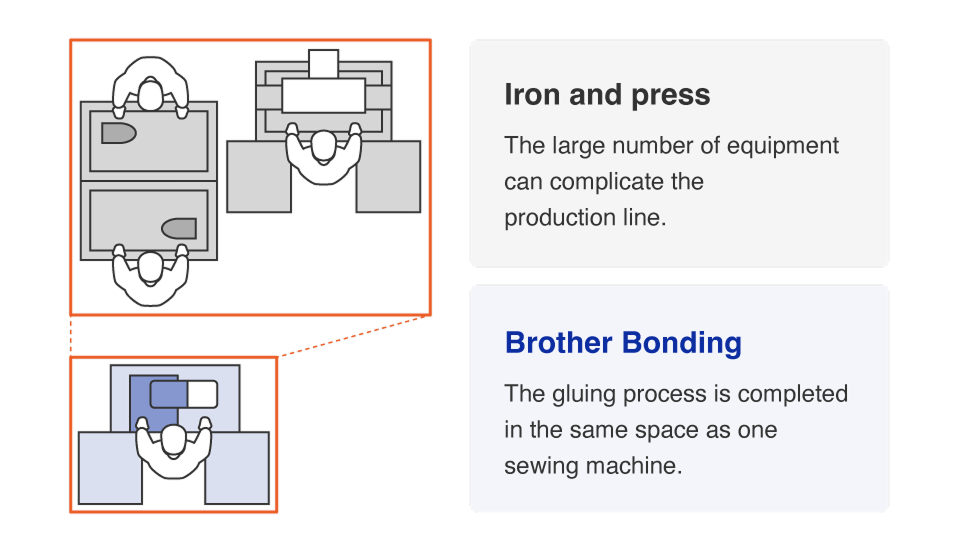

Complete with one unit & save space
Significantly reduces space
This reduces the space required for production and increases efficiency.
Design Examples
01 Men's Design Formal sporty
The armholes are given volume to expand the range of motion.
The Back switch is designed to match design and functionality.
02 Ladies' Design Office style
The three-dimensional and beautiful lines are suitable for dresses and other items.
Lines that are traditionally prone to wrinkles can be beautifully finished, so we recommend a long dress design.
The sleeves are designed to cover the upper arms with switches.
Frequently asked questions
- What shape can be bonded with the BM-2000?
-
The BM-2000 can be overlapped with the following figure.
- How do you change the bonding width?
-
The bonding width is determined by the size of the nozzle.
The BM-2000 offers four nozzle sizes: 4mm, 6mm, 8mm, and 10mm.
To change the bonding width, replace the nozzle and adjust the corresponding machine settings from the operation panel.
- Can I change the amount of adhesive applied (glue thickness)?
-
It can be changed from 50 μm ~ 200 μm by panel operation.
Set according to the desired bond strength.
- Can you glue any fabric?
-
The main target of adhesives is knitted materials such as underwear and sportswear, but there are materials that can be bonded even cotton and fabric materials.
- What kind of adhesive do you use?
-
It is a Brother's original polyurethane-based reactive hot melt (PUR).
- How safe is liquid adhesive?
-
We have an eco-passport of international standards.
