DA-927A
DA-927A
- ・Clean Sewing with Minimum Lubrication System
- ・A New Knife with Highly Safe Shape
- ・Beautiful Sewing Finishes with New Presser Mechanism
Information
Overview

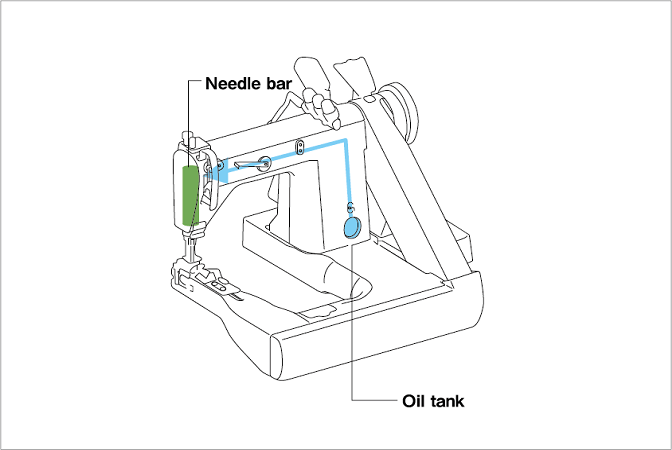

Minimum lubrication system can be realizing clean sewing
Minimum lubrication system supplies limited oil only to the needle bar and the upper shaft realizing clean sewing for your valued products.
A new knife with highly safe shape
Sewing work can be done safely with a new knife with highly safe shape.
Features
Specifications

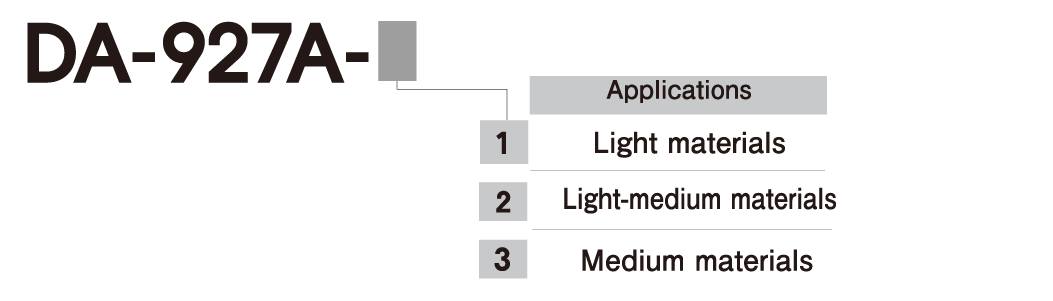

| Specifications | -1 | -2 | -3 | |
|---|---|---|---|---|
| Applications | Light materials | Light-medium materials | Medium materials | |
| Lubrication type | Minimum lubrication | |||
| Max. sewing speed | 4,000sti/min*1 | |||
| Max. stitch length | 3.8mm | |||
| Height of presser foot | 10mm | |||
| Needle bar stroke | 30mm | |||
| Needle | Organ TVX64NY | |||
| #12 | #14 | #16 | ||
| Needle gauge | 2-needles | '3/16'1/4 | '3/16 - | '3/16 '1/4 |
| 3-needles | 1/8 X 2 | - | - | |
| Height of feed dog | 1.0mm | |||
| Weight | 49kg | |||
| Size | 465mm x 500mm x 340mm | |||
| Outer perimeter of cylinder | 171mm | |||
| Presser foot presser | 39.2~78.4N (4~8kgf) | |||
