NEXIO S-7780A
NEXIO S-7780A
- ・“DigiFlex Feed” simplifies feeding adjustments that resolve sewing issues
- ・Good response, providing ease when sewing by the direct drive motor
- ・Oil staining prevention
- ・Changes between normal sewing and cutting while sewing with a single touch
Information
Overview

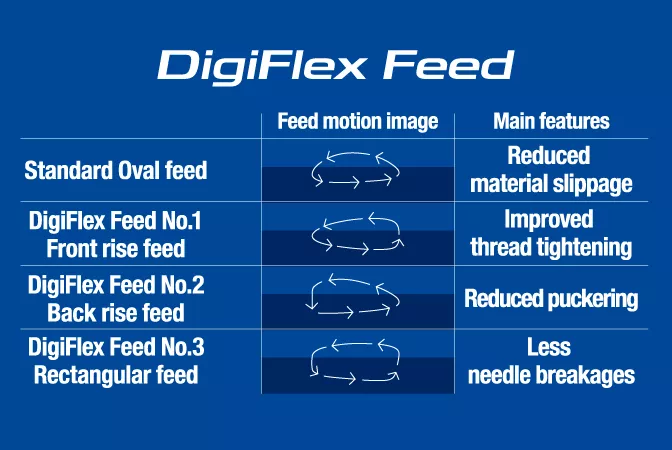

DigiFlex Feed Direct Electronic Feed Control
DigiFlex Feed, which is world's first equipped on S-7300A and highly evaluated in the market, digitalizes feeding system and resolves various sewing troubles without adjustment work.
Good response, providing ease when sewing by the direct drive motor
Compared to conventional under-table servo motor control, the pulse motor control makes starting and stopping of sewing quicker. The direct drive mechanism provides reliability with the unique built-in direct drive motor developed by Brother.

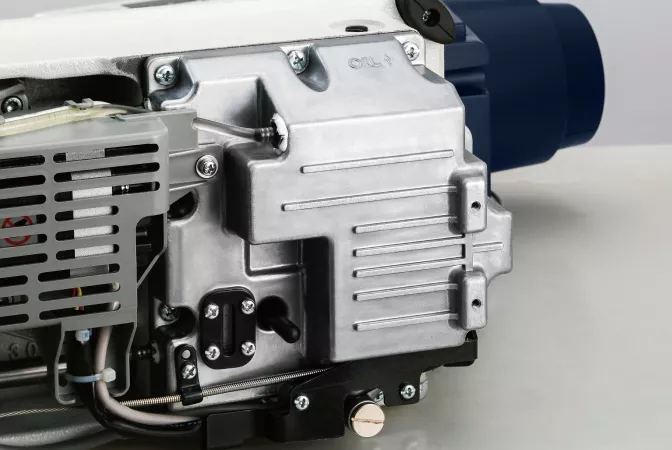

Oil staining prevention
The closed oil tank provides clean sewing capability. The minimum lubrication system prevents problems such as oil leakage and oil scattering while sewing.

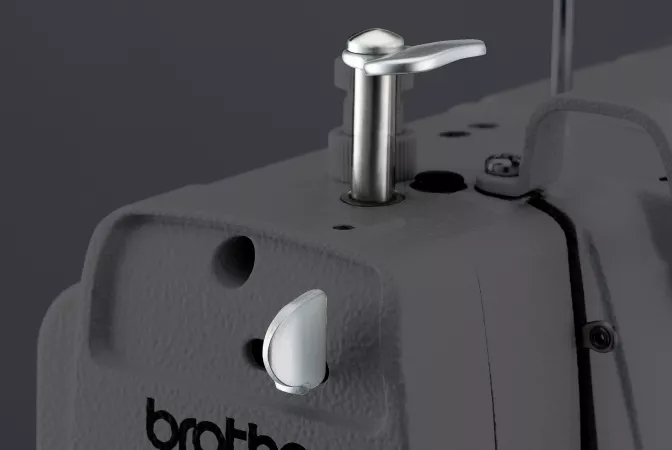

The side cutter can be raised and lowered at a single touch using an easy-to-operate lever. This lets you change easily between normal sewing and cutting while sewing.
Features
DigiFlex Feed, which is world's first equipped on S-7300A and highly evaluated in the market,
digitalizes feeding system and resolves various sewing troubles without adjustment work.
- Improvement in the reduction of needle breakage and productivity.
- Simple select and smooth sewing without material slippage.
- Excellent sewing quality that's easy to get proper thread tension in accordance with several materials

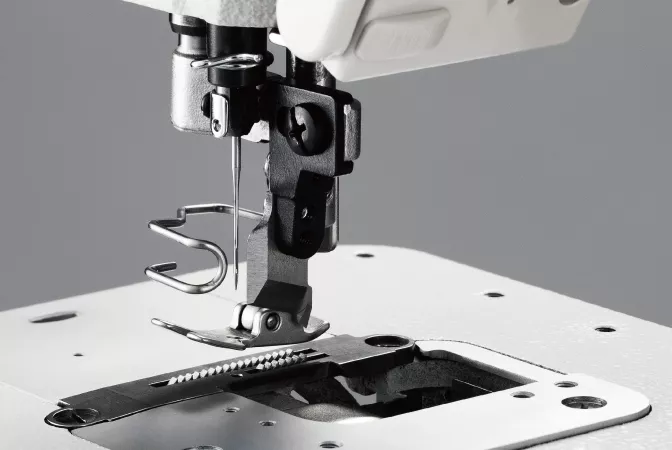

The side cutter can be raised and lowered at a single touch using an easy-to-operate lever. This lets you change easily between normal sewing and cutting while sewing.
Wide waste opening
Scraps cut from the material are conveyed smoothly through the wide opening of the waste chute. This keeps the top of the work table clean at all times and lets the next operation proceed without concern. In addition, when not using the side cutter feature, the sewing machine can be used as a common, straight, lock stitcher by attaching a needle plate cover. br/>
Specifications
| S-7780A | |||||
|---|---|---|---|---|---|
| Lubrication type | Minimum lubrication | ||||
| Application | Medium materials | ||||
| Max. sewing speed | 4,500 sti/min*1 | ||||
| Max. stitch length | 4mm | ||||
| Feed system | Direct electronic feed control | ||||
| Presser foot height | Presser bar lifter: 5mm, Knee lifter: 13mm | ||||
| Needle bar stroke | 31mm | ||||
| Needle (DBx1) | #11-#18 (Nm75-110) | ||||
| Standard cutting width | 3.2mm (1/8) or 6.4mm(1/4) | ||||
| Max. thickness of the material to be cut | 4mm | ||||
| Quick back device | Standard equipment | ||||
| Thread presser | Standard equipment | ||||
| Weight | 37kg | ||||
| Power | Single phase: 110V* /Single phase, 3-phase: 200V-230 V Max. electric power consumption 550VA * The transformer is required. | ||||
