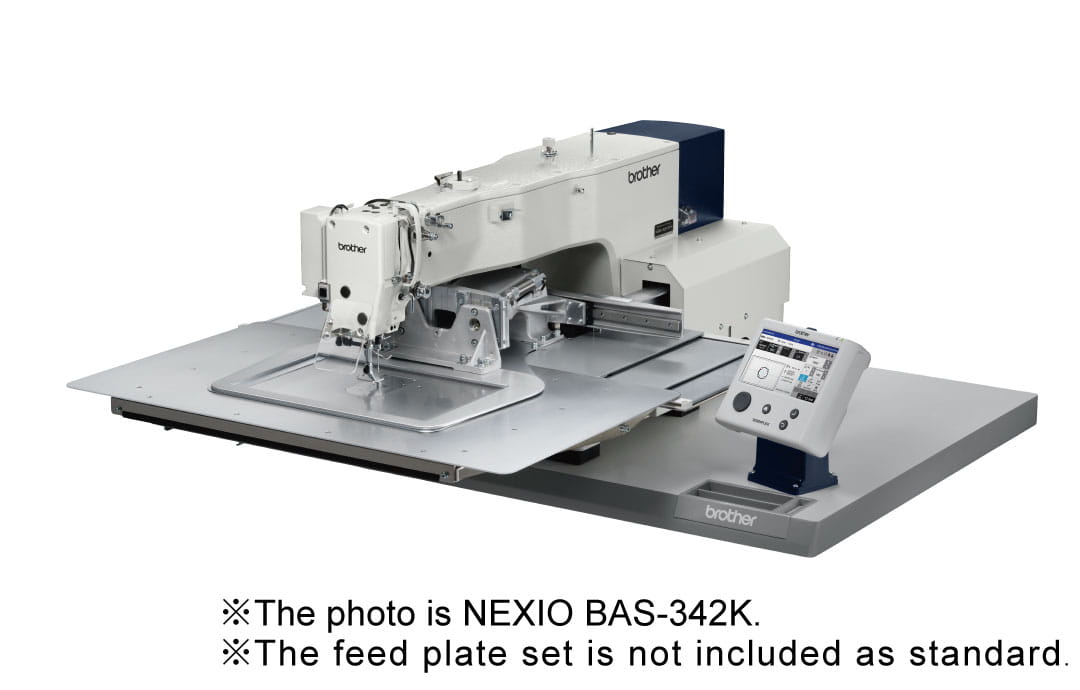

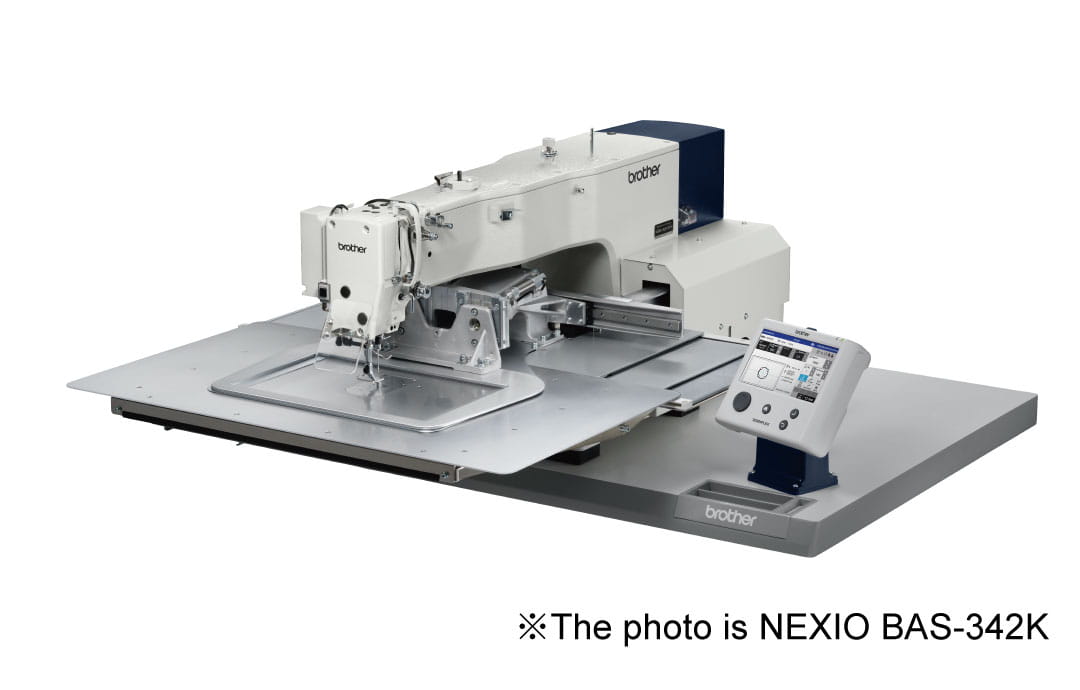

NEXIO BAS-341K

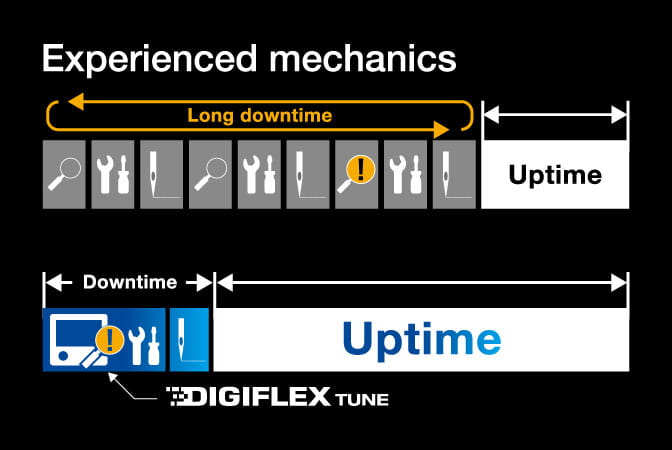

Sensing makes it clear how to handle sewing defects, minimizes downtime and increases productivity.

Adjustments in increments of 0.01 millimeters are possible, eliminating variations in adjustments due to people and environments.

Digitalization makes it possible to make the same adjustments to multiple sewing machines, making it possible to develop globally unified adjustments.

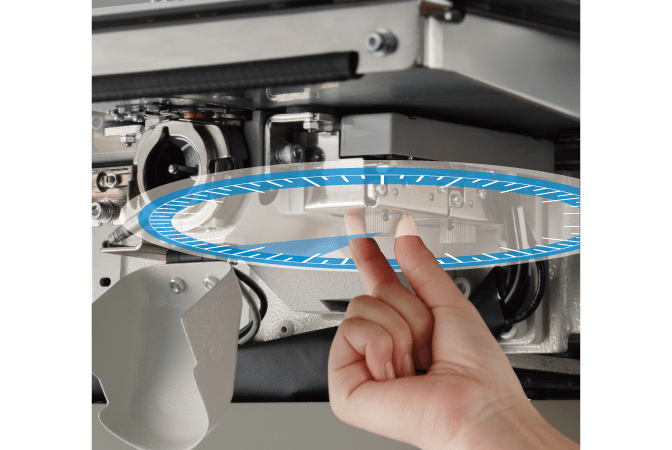

The digital adjustment method using sensing makes it easy to adjust the needle bar height position, hook timing, needle guard gap, needle clearance, while checking the numerical values on the panel.

By alerting you when the oil level is low, you can prevent machine damage due to operation without oil.

On the panel, it will display the numerical values for the sewing machine adjustments, including the "standard value," the "target value" that you can set, and the "current value," which shows the status of the machine.

If the current adjustment value of the sewing machine deviates from the target value, a warning will appear so that the desired values can be maintained appropriately.

By detecting sewing defects by detecting skipped stitch, thread breakage detection, and dynamic upper thread tension monitoring, defective products are prevented from flowing to the downstream process.

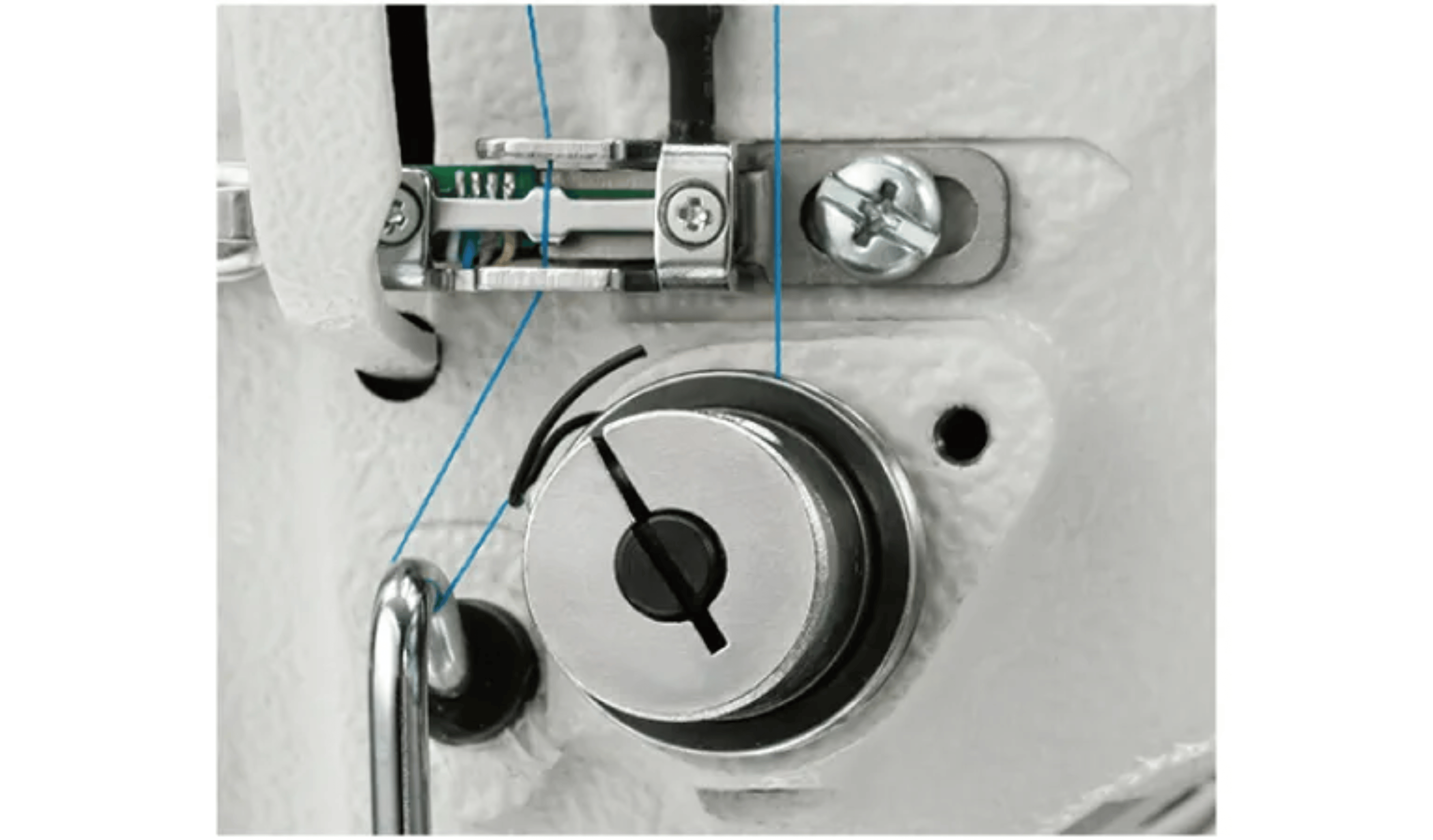

In addition to the conventional skip stitch and thread breakage detection, upper thread tension monitoring function has been added. The threshold based on the standard deviation can be automatically set for each stitch, allowing for easy and highly accurate detection. This technology can now detect sudden tension abnormalities during sewing.

By measuring the thickness of the fabric at the beginning of sewing and determining whether it is within the specified value, misplacements are detected before they occur. If it differs from the set value, an error will be displayed on the LCD screen.

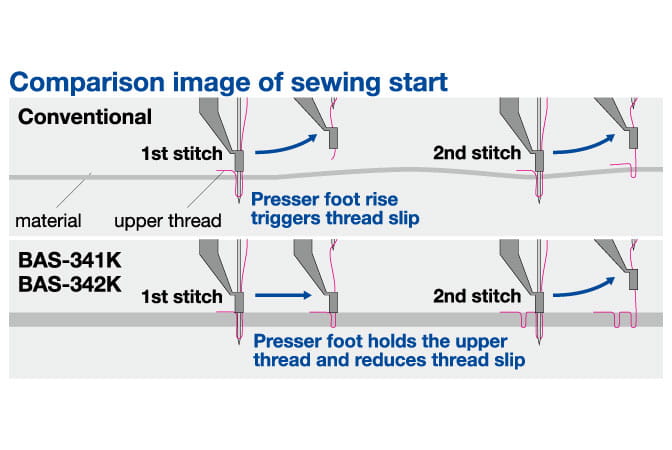

Skip stitch and thread slippage at sewing start can be prevented by holding the upper thread with the intermittent presser foot.

Simply hook the thread on the bobbin winder knife and the winding preparation is done.

Programming for safety devices and start switch can be easily done from the operation panel. In addition, installation of terminal blocks for connecting external devices has made wiring work easier.

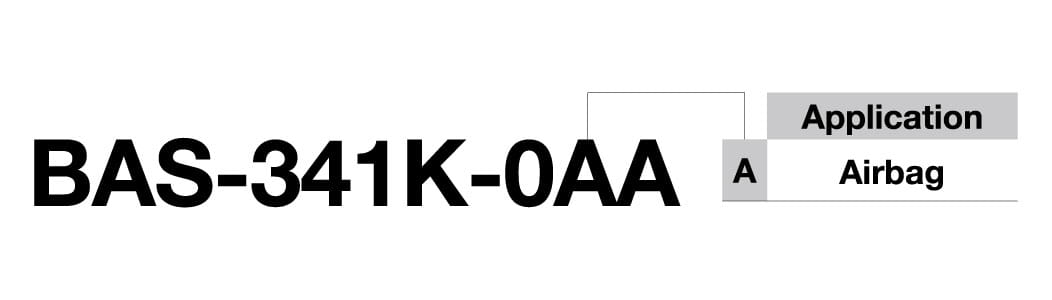

Stable sewing quality is achieved even for small parts such as front airbags and curtain airbag Y-socks and tabs.

Beautiful sewing of corners and sewing of hard different materials are also carefully and stable sewing quality is achieved.
