Z-8560A
Z-8560A
- ・The compact knife mechanism in a single unit enables simple maintenance.
- ・Clean sewing with no oil staining.
- ・Energy-saving model.
- ・Wide-variety pattern sewing is available.
Catalog, Manual, Parts-book Download
Information
Overview
Clean Sewing

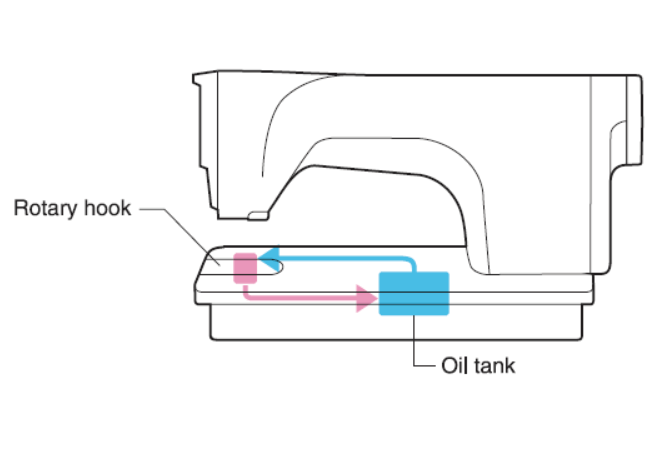

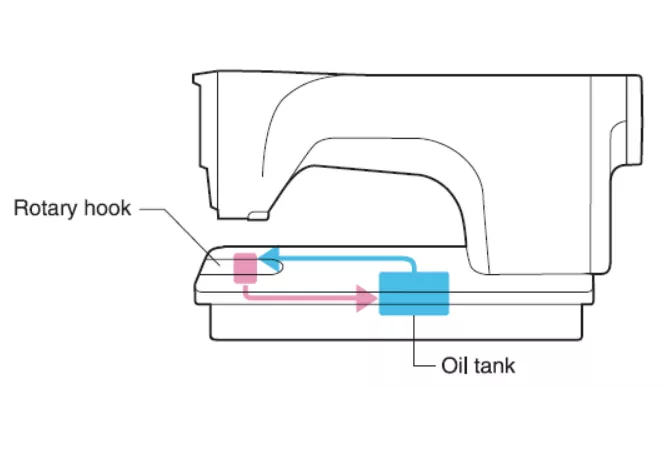

The Z-8550A and Z-8560A are equipped with a sealed oil tank, supplying constant clean oil only to the rotary hook.
Having no oil around the needle bar and thread take-up mechanism, there is no concern of oil staining.The direct drive system, having no shaving of the belt,
can keep valued products clean.

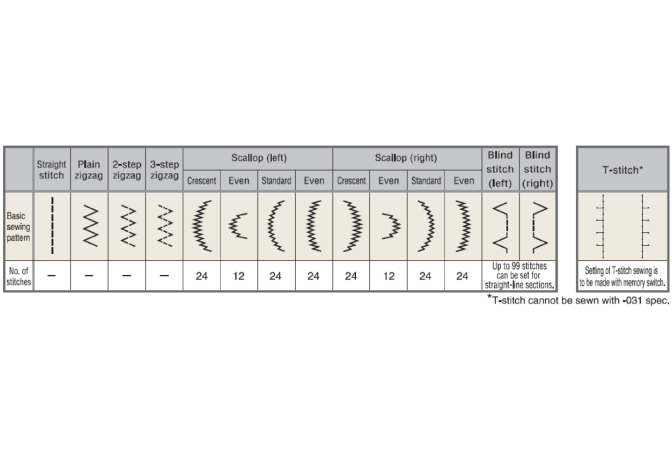

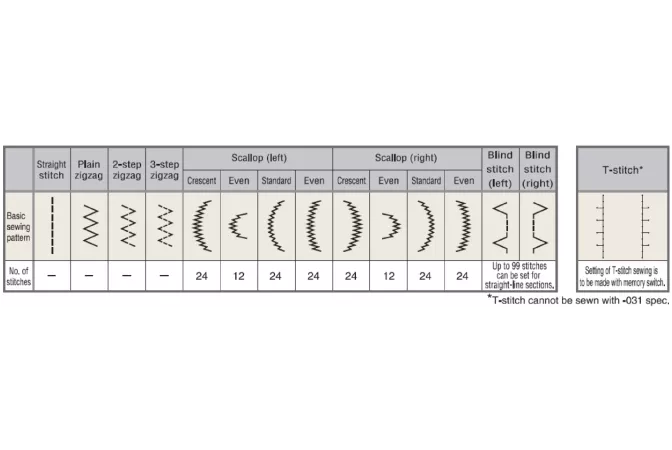

Plain zigzag, 3-step zigzag, scallop patterns and T-stitches* are provided
The basic 8 types, 14 sewing patterns are built-in. Users do not need to have multiple cams for each sewing pattern, which allows excellent cost performance.

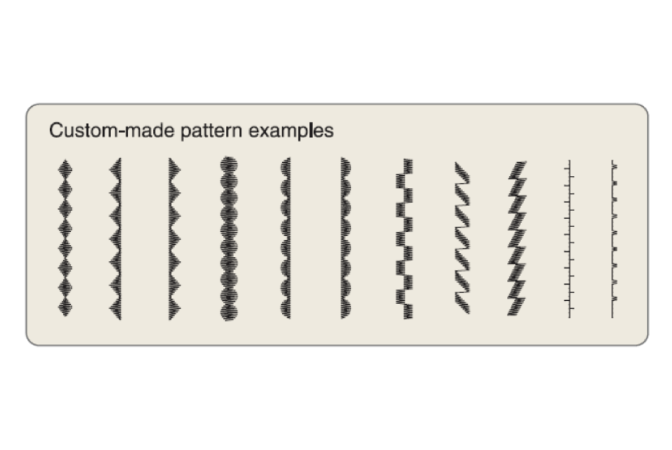

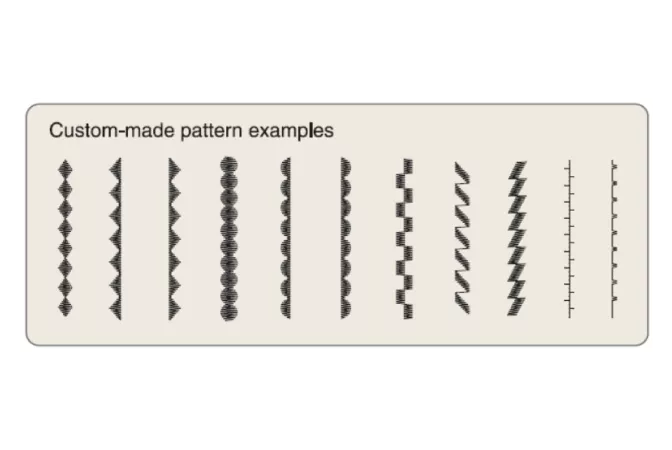

Custom sewing patterns adding value to the product
Users can store their original sewing patterns in the machine additionally. Custom patterns can be used in a wide variety of applications, such as decorative stitching of ladies wear, knitted articles, neckerchiefs, towel handkerchiefs, foundation garments and swimming wear. Data handling is easily made with CF cards, adopted as storage media. (Up to 99 patterns with a total of 49,500 stitches, 500 stitches or less per pattern. Sewing patterns can be created at the operation panel or by using the sewing data programming software PS-300B (Option).)

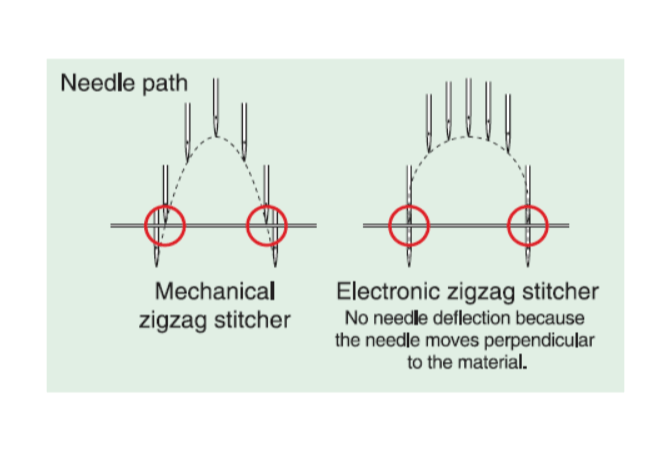

With the electronic zigzag stitchers, the needle moves perpendicular to the material so that needle deflection does not occur even at high speed sewing. Furthermore, the pulse motor with servo control, adopted for the zigzag mechanism, prevents position slippage.
Features
Specifications
| Model | Z-8560A |
|---|---|
| Direct drive | ◯ |
| Max. zigzag width | 10.0mm*1 |
| Application | Light materials Medium materials |
| Presser foot height | Manual : 6mm Knee : 10mm |
| Needle bar stroke | 33.3mm |
| Thread Trimmer | ◯ |
| Max. sewing speed | 5,000sti/min*2 |
| Max. feed amount | 5.0mm*3 |
| Sewing pattern | 8 types, 14 patterns built-in (Custom patterns can be added up to 99 patterns with a total of 49,500 stitches, 500 stitches or less per pattern.) |
| Thread take-up | Rotary |
| Height of feed dog | 1.0mm |
| Presser foot pressure | 10-30N |
| Needle | Schmetz 134SUKNm70/10 |
| Weight | Machine head: 49kg
Control box: 14-15kg |
| Arm pocket size | Arm pocket width: 300.0mm
Arm pocket height: 121.5mm |
| Arm bed size | 517.5x178.0mm |
| Motor | AC servo motor (4-pole,550W) |
| Power | Single-phase: 100V
3-phase: 200V Max. electric power consumption: 400VA |
| Control circuit | Microprocessor |
- *1 The factory setting is 8.0 mm. To make it 10 mm, gauge parts and a stopper for the size are necessary (Option).
- *2 The factory setting is 4,000 sti/min. The speed may be limited by some sewing patterns or settings of zigzag width.
- *3 The factory setting is 2.0mm. To make it 5.0mm, gauge parts for the size are necessary (Option).
