BE-438FX II
BE-438FX II
- ・Reduction of disposition of threads ends (short remaining thread)
- ・Sew-capability enhancement
- ・Overwhelmingly superior productivity with the world's top-class cycle time
- ・Digital Tension and Quick Change Device s standard equipment
- ・Clean sewing with semi-dry type
Information
Overview
Beautiful sewing quality
64 sewing patterns have already been set and can be selected. It's capable of various fine sewing patterns as well.
Low Noise and Low Vibration for Stress-Free Operation
The noise and vibration are minimized by reducing impact during thread trimming. Operators can sew conformably without fatigue and stress.
Digital tension as standard equipment
Digital Tension is equipped as standard so you can adjust the tension appropriately for the material being sewn. No more relying on individual feel, changing the thread tension can be added onto the sewing programs.
All bar tacker and button attaching models are semi-dry type. They supply constant clean oil only to the shuttle hook, there is no concern of oil staining from needle bar area. The direct drive system, having no belt shavings can keep products clean.
Features

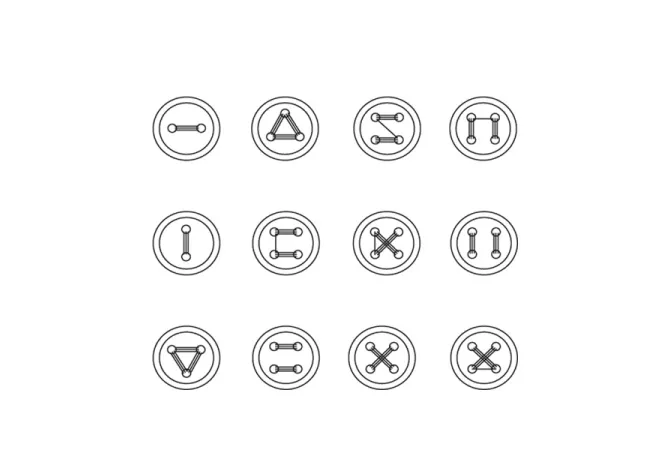

Around 89 patterns have been preset into the sewing machine. Any sewing pattern can be selected as long as the needle will drop into the holes of the buttons. When sewing patterns that do not have crossover stitches, the thread is trimmed after sewing of one side is completed, and then the other side is sewn.
The operation panel is designed to be user-friendly and to improve the ease of operation. Sewing patterns, sewing speed and upper thread tension can be memorized as user programs. Other useful functions such as production counter and lower thread counter are available.
Specifications
| BE-438FXII | |||||
|---|---|---|---|---|---|
| Application | Button attaching | ||||
| Lubrication | Semi-dry | ||||
| Max. sewing speed | 2,700sti/min | ||||
| Max. sewing area | Max.6.4x6.4mm | ||||
| Dimensions of buttons that can be sewn | Outer diameter of buttons 8-30mm*1 | ||||
| Stitch length | 0.05～6.4mm | ||||
| Feed mechanism | Y-θintermittent feed mechanism (pulse-motor driven mechanism) | ||||
| No. of stitches | Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already preset) | ||||
| Max.No. of stitches | 5,000 stitches/pattern | ||||
| Work clamp lifter | Pulse motor drive system | Work clamp height / Button clamp height | Max. 13mm | ||
| Rotary hook | Shuttle hook (double shuttle hook, optional) | ||||
| Digital tension | Standard equipment | ||||
| Thread wiper | Standard equipment | ||||
| Thread trimmer | Standard equipment | ||||
| Thread nipper | Standard equipment | ||||
| Data storage method | Flash memory (Any sewing pattern can be added using SD card) | ||||
| Exteernal data storage method | SD card*2 | ||||
| No. of cycle programs | 30 cycle (50 programs for each cycle) | ||||
| No. of stored data | 64 sewing patterns are set already | ||||
| (up to 512 patterns can be added. Total number of stitches of stored data which can be added is within 500,000*2) | |||||
| Motor | AC servo motor 550W (Direct Drive) | ||||
| Weight | Machine head: Approx. 57kg, Operation panel: Approx. 0.4kg, Control box: Approx. 9kg | ||||
| Power supply | Single-phase 100V/200V, 3 phase 220V/380V/400V 400VA (For single-phase 100V and 3-phase 380V/400V, the trans box is require | ||||
