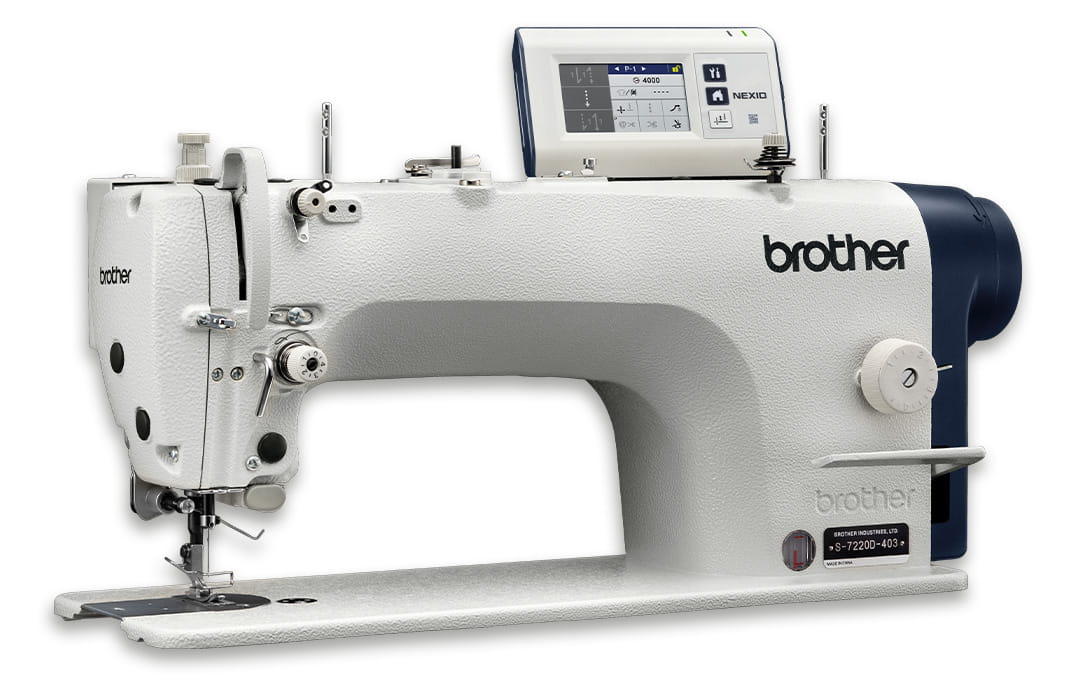

S-7220D
S-7220D
- ・User-intuitive Color LCD Display Touch Panel
- ・Productivity improvement with loT capabilities
- ・The needle feed mechanism further inures even material feeding while sewing
Information
Overview

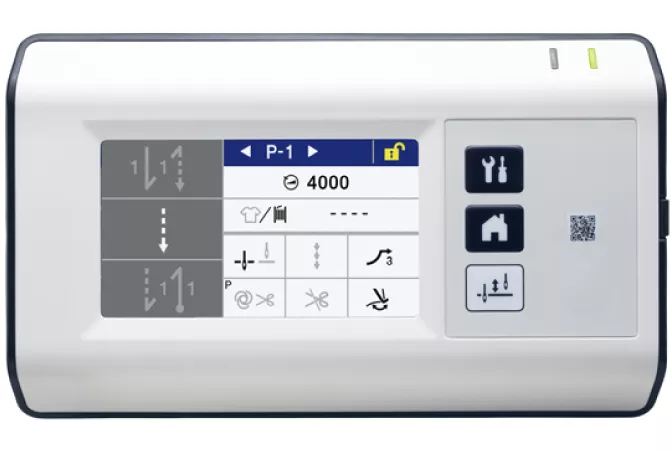

User-intuitive Color LCD Display Touch Panel
The Color LCD display touch panel display items with illustration icons, offering easy user-intuitive operation.

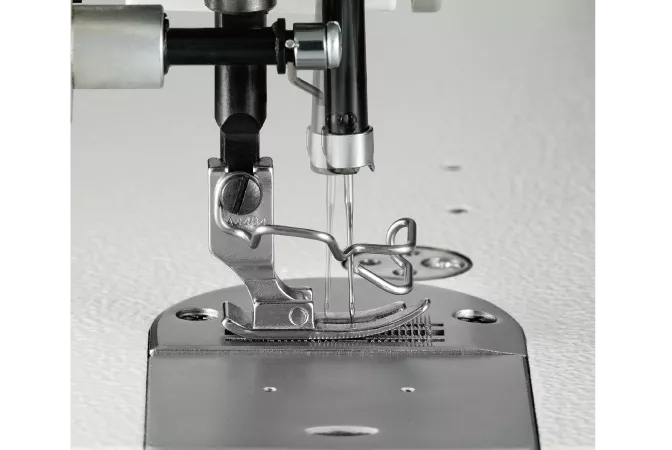

Prevents uneven material feeding
This sewing machine is suitable for sewing of materials that require quality processing such as placket stitching of polo shirts.

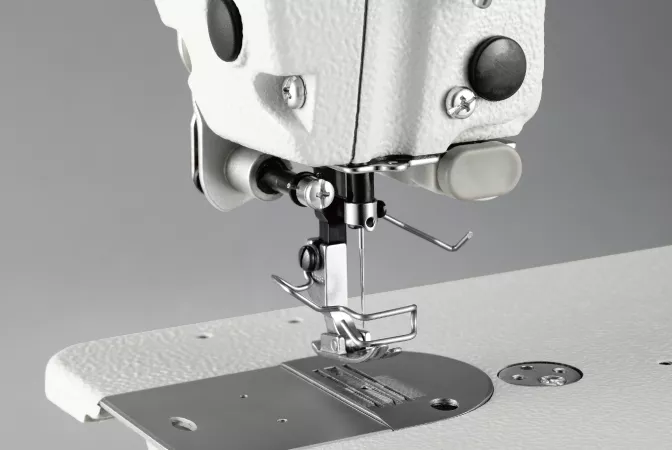

Needle Breakage Prevention Function
When reverse stitching is carried out using the quick back switch on standard straight lock stitcher machines, needle breakage may occur. With thorough analysis of its cause, the function of preventing the needle breakage has been introduced.

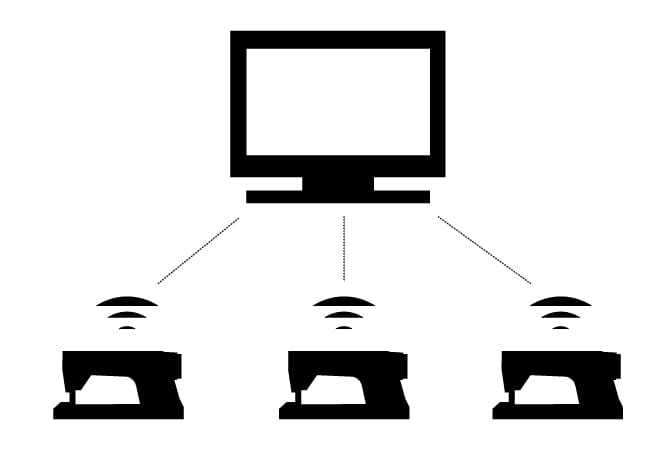

This model is loT applicable. The visualization by connecting sewing machine and computer technology together enables the customer to analyze, manage processes, increase productivity improvement, and perform maintenance. *It is applicable for Brother’s IoT system. For more information, please refer to the catalog of “Brother Industrial Sewing Machine Network System”.
Features
We adopted the control circuit board design which has been proven effective in other models and strengthened the ability to cope with the voltage fluctuations. In addition, vibration resistance is improved, and you can use it safely in various environments.
Specifications

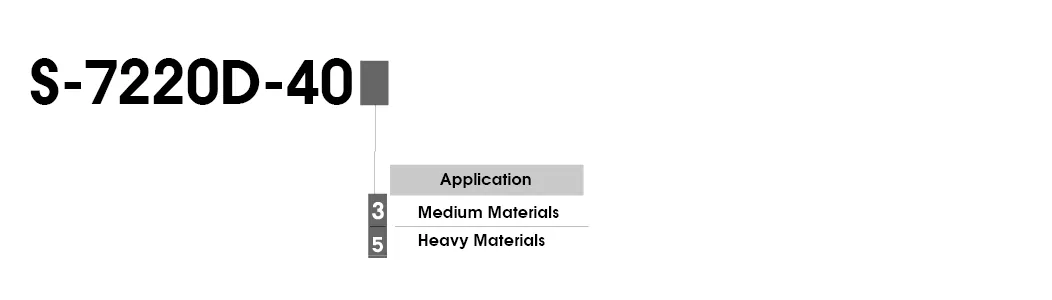

| S-7220D- | 403 | 405 |
|---|---|---|
| Lubrication type | Minimum lubrication | Minimum lubrication |
| Application | Medium materials | Heavy materials |
| Max. sewing speed | 5,000 sti/min*1 | 4,000 sti/min*2 |
| Start backtacking and continuous backtacking speed | 220-3,000 sti/min | |
| End backtacking speed | 1,800 sti/min | |
| Max. stitch length | 4.5mm | 5.5mm |
| Presser foot height | Presser bar lifter:6mm, knee lifter:16mm | |
| Needle bar stroke | 33mm | 35mm |
| Needle(DBｘ1・DPｘ5) | #11～#18 | #19～#22 |
| Feed dog height | 1.0mm | 1.2mm |
| Arm pocket size | Width:300mm, Height:120mm | |
| Bed size | 517.5mm x 178mm | |
| Machine head drive/th> | Direct drive meachnism | |
| Motor | AC servo motor (450W) | |
| Weight | Machine head: 46kg, Control box: 3.1kg, panel:0.6kg |
|
| Power | Single phase 110V*3 / Single phase, 3-phase 200-240V Max. electric power consumption 500VA |
|
